Quick Details
-
Voltage:
-
110V/230V/380V//450V,etc
-
Dimension(L*W*H):
-
4500x1800x200mm(can be customized)
-
Weight:
-
1000 KG
-
Product dimension(L*W*H):
-
4500x1800x200mm(can be customized)
-
Feeding size(slime deck):
-
0.037-0.1mm(can be customized)
-
Water consumption:
-
0.7-1 t/h, water can be recyle
-
Feeding size(fine deck):
-
0.1-0.5mm(can be customized)
-
Production capacity:
-
6-20t/h, 98%, 8-15tons/hour
-
Product application:
-
Gold, tin, chrome, titanium, manganese ore processing
-
Models available:
-
LS4500, LY3000, LY2100, and LY1100
-
Deck material:
-
Fiberglass lined with polyurethane and corundum
-
Feeding size(coarse deck):
-
0.5-2mm(can be customized)
-
Make use of:
-
E-waste, placer/gold,tungsten,tin,tantalum,niobium,iron,Mn,etc
Quick Details
-
Production Capacity:
-
1-10tph
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hengtailong
-
Voltage:
-
110V/230V/380V//450V,etc
-
Dimension(L*W*H):
-
4500x1800x200mm(can be customized)
-
Weight:
-
1000 KG
-
Product dimension(L*W*H):
-
4500x1800x200mm(can be customized)
-
Feeding size(slime deck):
-
0.037-0.1mm(can be customized)
-
Water consumption:
-
0.7-1 t/h, water can be recyle
-
Feeding size(fine deck):
-
0.1-0.5mm(can be customized)
-
Production capacity:
-
6-20t/h, 98%, 8-15tons/hour
-
Product application:
-
Gold, tin, chrome, titanium, manganese ore processing
-
Models available:
-
LS4500, LY3000, LY2100, and LY1100
-
Deck material:
-
Fiberglass lined with polyurethane and corundum
-
Feeding size(coarse deck):
-
0.5-2mm(can be customized)
-
Make use of:
-
E-waste, placer/gold,tungsten,tin,tantalum,niobium,iron,Mn,etc
Product Description

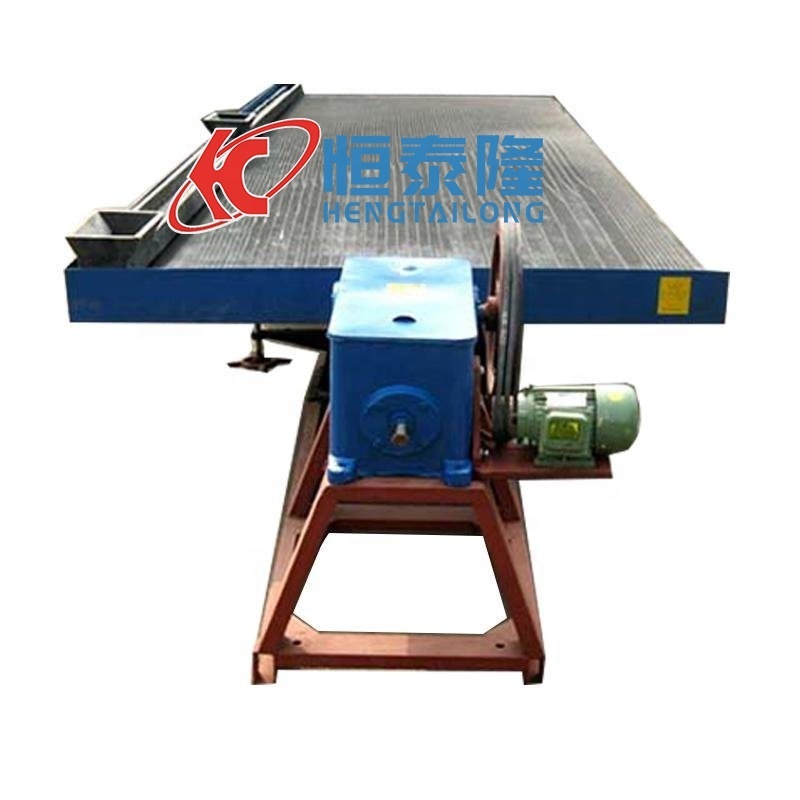

small mini copper gold mining shaker table for sale
Detailed Images
1.Made of new FRP reinforced plastic materialthe strength of steel degree is large, not easyto deformation, wear-resisting and not dry crack.
2.
Forming technology to create a perfect shakingtable frame , lower noise , more uniform forchigher stability , longer life.
3.
The head of the shaking table is the key to qualitymust be strictly controlled , overload test , to beallowed to leave the factor.
Product Application
Manganese, gold shaking table widely uses in ores such as tungsten, tin, lead, zinc, gold, silver, tantalum, niobium, monacite,zircon, ilmenite planting the fissure filling or the placer ore dressing plant in processes the 3_0.019mm granularity ore in the rough sizing and the selection work.
Technical Parameter
|
Model
|
|
6-s 4500
|
|
|
6-s 3000
|
6-s 2100
|
6-s 1100
|
|||||
|
Deck type
|
|
coase deck
|
fine deck
|
slurry deck
|
three type of decks optional
|
|
|
|||||
|
Beneficiation area(m2)
|
|
7.6
|
7.6
|
7.6
|
4.08
|
1.95
|
0.5
|
|||||
|
Deck size
(mm) |
Length
|
4500
|
4500
|
4500
|
3000
|
2100
|
1100
|
|||||
|
|
Transmission width
|
1850
|
1850
|
1850
|
1320
|
1050
|
500
|
|||||
|
|
Concentrate width
|
1550
|
1550
|
1550
|
1100
|
850
|
430
|
|||||
|
Stroke(mm)
|
|
16-22
|
11-16
|
11-16
|
6-30
|
12-28
|
9-17
|
|||||
|
Frequency of stroke (r/min)
|
|
220
|
250
|
250
|
210-320
|
250-450
|
280-460
|
|||||
|
Max feeding size(mm)
|
|
2
|
0.5
|
0.5
|
sand-2
slurry-0.1 |
sand-2
slurry-0.074 |
sand-2
slurry-0.074 |
|||||
|
Water consumption(t/h)
|
|
0.7-1
|
0.4-0.7
|
0.4-0.7
|
0.3-1.5
|
0.2-1
|
0.1-0.5
|
|||||
|
Slope(°)
|
|
0-5
|
|
|
0-10
|
0-8
|
0-8
|
|||||
|
Motor power(kW)
|
|
1.1
|
|
|
|
|
0.5
|
|||||
6 Types of Gold Ore
Gold exists in quartzite. Usually, quartz appears as small stones in large cracks in riverbeds or mountain slopes and has crystals in different colors such as white, yellow, pink, purple, gray, or black. The most common types of quartz with gold ore are rose quartz gold ore and rainbow gold ore. A high gold-quartz ore contains 25% gold by mass, and it occurs in areas where the bedrock is fractured by tectonic and volcanic activity.
Gold exists in quartzite. Usually, quartz appears as small stones in large cracks in riverbeds or mountain slopes and has crystals in different colors such as white, yellow, pink, purple, gray, or black. The most common types of quartz with gold ore are rose quartz gold ore and rainbow gold ore. A high gold-quartz ore contains 25% gold by mass, and it occurs in areas where the bedrock is fractured by tectonic and volcanic activity.
Flow chart of gold ore processing:
Placer gold ore with high gold content mostly exists in the form of particles. Therefore, the ideal method to process placer gold ore is gravity separation.
Placer gold ore with high gold content mostly exists in the form of particles. Therefore, the ideal method to process placer gold ore is gravity separation.
According to different physical and chemical properties of different types of gold ores, flotation separation utilizes various reagents to make the gold attached to the bubbles then scraping these gold particles from blades to get the concentrate.
Working Principle
The manganese, gold shaking table is shaken back and forth longitudinally, using a slow forward stroke and a rapid return strike that causes particles to raw along the deck parallel to the direction of motion. The lighter materials move up and over the riffles and down to exit on the tailings side of the table. Wash water is fed at the top of the table at right angles to the direction of table movement. These forces combine to move particles diagonally across the deck from the feed end and they separate out on the table according to size and density. Tables are most commonly used to recover gold from hard rock ores, but can also be used to recover other mineral materials of higher than normal density. They do an excellent job of recovering small gold particles, even with a fairly high feed rate.
About Hengtailong
Customer Visits/Evaluations/Our Services
Before-sale services
:
We guide customers to choose the best and applicable device; provide the advanced, energy-saving and practical technological processes, as well as we are responsible for the planning and design of the site.
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts.
Tips:
The prices in the web only to be reference,according to raw material's price fluctuations; Specific price is subject to the negotiation.
Sale services:
Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery.
After-sale services:
Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers.
Solemn Promise:
The quality guarantee period of machines is one year except the wearing parts.
Tips:
The prices in the web only to be reference,according to raw material's price fluctuations; Specific price is subject to the negotiation.
Product Packaging
Packaging Details:
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
RFQ
Q:
Why we believe in Gongyi Hengchang company?
A: 1.More than 28 years’ experience.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q:Deliver time ?
A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q:Payment terms ?
A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q:Deliver time ?
A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q:Payment terms ?
A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
