Quick Details
-
Product name:
-
8-port 10/100/1000Mbps + 2-port 1000Mbps SFP Fiber
-
Product Model:
-
OFS-GSF2T8S
-
Fiber Media:
-
Multi-mode:550M- 2KM Single-mode: 20/40/60/80/100KM
-
Forwarding Mode:
-
Store-and-Forward
-
LED Indicators:
-
Power: PWR;FX Link/Act;TP 1000(1-8); TP Link/Act(1-8)
-
Power Supply:
-
Input: AC100 ~ 250V, Output:DC5V 2A.
-
Max power:
-
5W
-
Environment temperature:
-
0 ~ +55℃
-
Storage temperature:
-
-20 ~ +70℃
-
Humidity:
-
5% ~ 90%
Quick Details
-
Model Number:
-
OFS-GSF2T8S
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OPTFOCUS
-
Product name:
-
8-port 10/100/1000Mbps + 2-port 1000Mbps SFP Fiber
-
Product Model:
-
OFS-GSF2T8S
-
Fiber Media:
-
Multi-mode:550M- 2KM Single-mode: 20/40/60/80/100KM
-
Forwarding Mode:
-
Store-and-Forward
-
LED Indicators:
-
Power: PWR;FX Link/Act;TP 1000(1-8); TP Link/Act(1-8)
-
Power Supply:
-
Input: AC100 ~ 250V, Output:DC5V 2A.
-
Max power:
-
5W
-
Environment temperature:
-
0 ~ +55℃
-
Storage temperature:
-
-20 ~ +70℃
-
Humidity:
-
5% ~ 90%

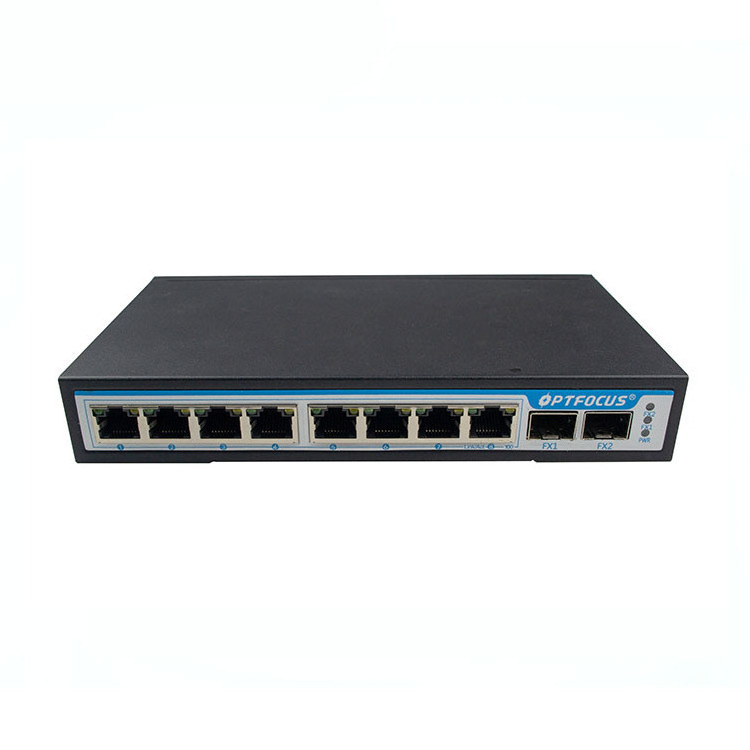

Wholesale 8 port gigabit ethernet optical fiber switch
OFS-GSF2T8S
8ports 10/100/1000M +2ports 1000M SFP Fiber Switch
OFS-GSF2T8S series is a Layer 2 + Optical Ethernet switch with 2*1000Mbps SFP Optical fiber ports and 8*10/100/1000Mbps RJ45 ports. It is designed to meet the various application needs, and provide an Ethernet network communication solution with a high performance-price ratio.
OFS-GSF2T8S’s high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission.for connecting with devices like computer, switch, hub, server, etc.
Technical Specifications
| Product Name |
8-port 10/100/1000Mbps + 2-port 1000Mbps SFP Fiber |
| Product Model |
OFS-GSF2T8S |
|
Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 100Base-T;IEEE802.3u;1000Base-TX/FX;IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) | |
| 1000BASE-TX: Cat6 or later UTP(≤100 meter) | |
| Fiber Media |
Multi-mode:550M- 2KM |
|
Single-mode: 20/40/60/80/100KM |
|
|
Performance Specification |
Bandwidth: 20Gbps |
|
Packet Forwarding Rate:1488000pps/port |
|
|
MAC Address Table:8K |
|
| Forwarding Mode | Store-and-Forward |
|
LED Indicators |
Power: PWR;FX Link/Act;TP 1000(1-8); TP Link/Act(1-8) |
|
Power Supply |
Input: AC100 ~ 250V, Output:DC5V 2A |
|
Max power |
5W |
| Environment temperature |
0 ~ +55℃ |
| Storage temperature | -20 ~ +70℃ |
|
Humidity |
5% ~ 90% |
Feature s :
- 8 Port 10/100/1000Mbps with Auto Uplink™ , 2 port 1000Mbps SFP Slot
- Automatic MAC address learning and aging
- 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
- LED indicators for monitoring power/link/activity
- Supports10/100/1000Mbps-Full/Half-duplex
- Supports Wall-mount and DIN-Rail installation ,Optional
- Supports Broadcast Storm Control
- Excellent heat elimination without cooling fan
- Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City
- Harsh environment or higher requirement
- -10℃-55℃operating temperature range.
Chassis Dimension
Package Dimension
More information
|
Installation |
DIN-Rail or Wall mounts,Optional,Default device is not |
|
Packing List |
1× Switch 1×User Manual/Certificate of quality/Warranty card 1×power adapter |
|
MTBF |
100,000 hours |
|
Weight & Size |
Product Weight: 0.5 KG Packing weight: 1.1 KG Product size (L×W×H): 190 mm× 104mm× 29mm Packing size(L×W×H): 306mm×152 mm× 55mm |
|
Warranty |
1-years |
Ordering Information:
|
model |
Product description |
|
OFS-GSF2T8S |
8* 10/100/1000Base-T RJ45,2* 1000M fiber SFP ports, without SFP module,external PS |
