Products
SDM Geomembrane 1Mm Fish Pond Lining Epdm Rubber Pond Liner Membrane Pond Liners
SDM Geomembrane 1Mm Fish Pond Lining Epdm Rubber Pond Liner Membrane Pond Liners
SDM Geomembrane 1Mm Fish Pond Lining Epdm Rubber Pond Liner Membrane Pond Liners
SDM Geomembrane 1Mm Fish Pond Lining Epdm Rubber Pond Liner Membrane Pond Liners
SDM Geomembrane 1Mm Fish Pond Lining Epdm Rubber Pond Liner Membrane Pond Liners
SDM Geomembrane 1Mm Fish Pond Lining Epdm Rubber Pond Liner Membrane Pond Liners
SDM Geomembrane 1Mm Fish Pond Lining Epdm Rubber Pond Liner Membrane Pond Liners
SDM Geomembrane 1Mm Fish Pond Lining Epdm Rubber Pond Liner Membrane Pond Liners

SDM Geomembrane 1Mm Fish Pond Lining Epdm Rubber Pond Liner Membrane Pond Liners

FOB Reference Price: Get Latest Price
≥1000 Square meters
US $1.3
≥15000 Square meters
US $1.2
≥20000 Square meters
US $1
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Application:
pond, pool
Design Style:
Industrial
Place of Origin:
Shandong, China
Brand Name:
SDM
Model Number:
a103
Product Name:
HDPE Geomembrane
Color:
green Black white blue
MOQ:
1000m2
Thickness:
0.2mm-2mm
Length:
50m-100m/roll (as Request)
Width:
2m-8m
Raw material:
High-density Polyethylene Resin
Certificates:
ASTM
Surface:
Smooth Surface

Quick Details

Warranty:
More than 5 years
After-sale Service:
Online technical support, Onsite Installation, Onsite Training, Free spare parts, Return and Replacement, hdpe geomembrane
Project Solution Capability:
graphic design, 3D model design, total solution for projects, Others, hdpe geomembrane
Application:
pond, pool
Design Style:
Industrial
Place of Origin:
Shandong, China
Brand Name:
SDM
Model Number:
a103
Product Name:
HDPE Geomembrane
Color:
green Black white blue
MOQ:
1000m2
Thickness:
0.2mm-2mm
Length:
50m-100m/roll (as Request)
Width:
2m-8m
Raw material:
High-density Polyethylene Resin
Certificates:
ASTM
Surface:
Smooth Surface
HDPE Geomembrane Product Parameter
Thickness
0.75
1.0
1.25
1.50
2.00
2.50
3.00
Density g/m2
≥0.94
≥0.94
≥0.94
≥0.94
≥0.94
≥0.94
≥0.94
Tensile yield strength (N/mm)
≥11
≥15
≥18
≥22
≥29
≥37
≥44
Tensile breaking strength (N/mm)
≥20
≥27
≥33
≥40
≥53
≥67
≥80
Bongation at yield(%)
≥12
≥12
≥12
≥12
≥12
≥12
≥12
Elongation at break(%)
≥700
≥700
≥700
≥700
≥700
≥700
≥700
Tear resistance(N)
≥93
≥125
≥160
≥190
≥250
≥315
≥375
Puncture strength(N)
≥240
≥320
≥400
≥480
≥640
≥800
≥960
Tensile load stress cracking
≥300
≥300
≥300
≥300
≥300
≥300
≥300
Carbon black content(%)
2.0-3.0
2.0-3.0
2.0-3.0
2.0-3.0
2.0-3.0
2.0-3.0
2.0-3.0
For other geomembrane product parameters, please contact US.

HDPE geomembrane production process

HDPE geomembrane produced by our company is made of imported new materials, and the indexes meet the American standard. The best
quality and the lowest price.

HDPE geomembrane various specifications color

HDPE geomembrane produced by our company can be customized according to your requirements. We can produce all kinds of colors,
sizes, thicknesses, widths and lengths for you. Make you 100%satisfied.
We produce a variety of HDPE geomembrane breeding, non-toxic, harmless. Food grade safety.
Large aquaculture aquaculture using geomembrane shrimp, large size, high survival rate.
Tilapia grown in large aquaculture fisheries using HDPE geomembranes are long, large, compact and high density.
Geomembrane American standard index testing instrument
Every batch of geomembrane produced by us will be strictly tested to ensure that every square meter of products with 100%
qualified rate reaches the hands of customers, and the test report will be sent together with the products. 100% customer
satisfaction.

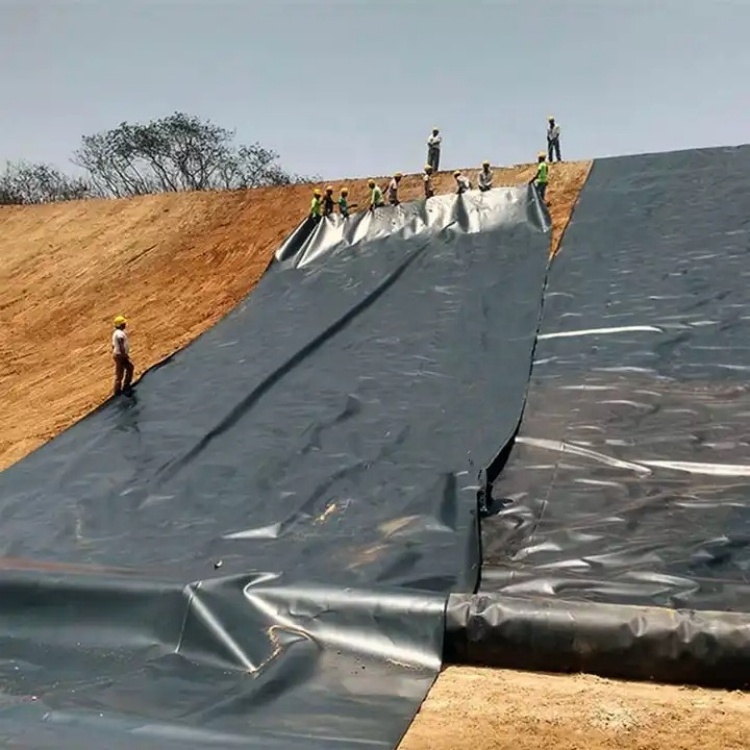

Our Project Cases
HDPE membran liner is a smooth, high-quality, (HDPE) HDPE polypropylene liner, which is made of specially formulated
originalpolyethylene resin. This raw material is specially designed for flexible geomembrane applications.The HDPE membran liner containsabout 97.5% polyethylene, 2.5% carbon black and traces of antioxidants and heat stabilizers. It does not use otheradditives,fillers or extenders. HDPE lining has excellent chemical resistance, mechanical properties, environmental stress crackresistance,dimensional stability and thermal aging characteristics. In addition, HDPE membran liner has puncture resistance andtear resistance that are unmatched by other geotechnical products on the market.The Advantages of HDPE Geomembrane Liner forLandfill Application (1)Good physical and mechanical performance
(2)High tearing resistance, strong deformation adaptability
(3)Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
(4)Good adaptability to high and low temperature, non-toxicity, long service life
(5)Good waterproof, drainage, anti-seepage and damp proof effects
(6)Wide range of thickness specifications
(7)Low cost and easy installation
Our sales staff introduced the product details of HDPE membraneLiner and sent product production videos and pictures andinspection
certificates to let customers fully understand our professional capabilities in the HDPE geomembrane liner industry.During the negotiation, we mailed samples of 1.2mm, 1.5mm and 2.0mm HDPE geomembrane polypropylene liner to customers. introduced the company’s basic situation, the advantages of our products, and the company’s success stories in landfilling inrecent years. Last but not least, we have also given reasonable suggestions and documentation on how to install, construct andweld in the application of HDPE membran liner in landfill projects. The final customer also carried out sample SGS inspection inKenya and chose our 2.0mm HDPE geomembrane liner to be applied to the landfill project in Kenya. After two months of understandingeach other, we successfully completed an order of 30,000 square meters in the third month.

Specifications of HDPE Membran Liner for Landfill Project
* Total Quantity – 30000square meters
* Each roll size – 7m*100m
* Thickness – 2.0mm
Geomembrane used in the construction of South Africa's National Large Fish Pond project
HDPE geomembrane used in large dam construction projects in Sweden
Our company also sells all welding equipment for welding geomembranes
Our company has a professional installation and construction team, can combine the design scheme to complete the construction
quickly and perfectly, we also have a professional design team, can carry out a reasonable design according to your actual site
situation, let your project more perfect
Shandong Marlboro New Material Technology Co., Ltd . is located in tai 'an city, Shandong Province, the root of the famous MountTai. The company is located in a superior location, convenient transportation, only 3 hours drive from Qingdao port, can ensure fast delivery. Shandong Marlboro New Material Technology Co., Ltd. is a high quality geosynthetics supplier. The main products are: geomembrane , geotextile , HDPE geocell , geogrid , drainage board ,drainage net and so on. Shandong Marlboro has been committed to providing global customers with one-stop pond lining and other geosynthetic materials. In recent years, the compan has continuously invested in technological innovation, production equipment improvement and engineering capacity construction,with advanced production lines and optimized manufacturing process. We have strong technical force and professional talents, can meet your needs. Geomembranes and other geosynthetics in various active and state forms have been provided to more than 40 countries. Our main customers from Australia, France, Sweden, the UK, Hong Kong, Hungary, New Zealand, Poland,Mexico,Ecuador,Brazil,Pakistan, Bangladesh, Thailand, Vietnam, Malaysia, Indonesia, Singapore, Philippines, Sri Lanka, India, the united Arab emirates,Saudi Arabia, Qatar, Kenya and Ethiopia , Ghana, Mali, Nigeria, South Africa, Swatini, Mongolia, etc. All
products have passed ISO9001, ISO14001, TUV, Soncap, SASO, BV certification, SGS, Intertek and other tests
Roots blower oxygenator
380V voltage, mainly used in large aquaculture and fishing farms, with strong oxygenation effect, long-term operation state, to ensure uninterrupted supply and delivery of oxygen for a long time.

Impeller type oxygenator

Impeller TYPE OXYGENator is mainly used in large fish ponds, large aquaculture and fishing grounds, with large oxygenation area,
high water wave, good oxygenation effect.
.

Blower type oxygenator

Blower type oxygenator is mainly used in round fish tanks, rectangular fish tanks, with oxygen depth, effectively reduce the residual chlorine in water. Oxygenation is uniform.

Fountain type oxygenator

Fountain type oxygenator is mainly used for small ponds and pools.

Shandong Marlboro New Material Technology Co. LTD

Our factory mainly produces geomaterials, with an advanced production of geomembrane assembly line. Sincerely invite every customer to visit the guidance.

production workshop

We have a large production workshop, spacious and bright, clean production environment, we produce every product is the best quality, the lowest price, you are welcome to visit us here
FAQ Q: Service: A. OEM/ODM orders are warmly welcome B. All of our products have proceeded testing before shipment and we guaranteed the good quality. Q: why should you buy from us not from other suppliers? A: good quality and service, timely delivery. Q: Quality Control: A: We have established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing. Q : Could you send the sample before order confirmation?
A : Yes, we'd love to send a free sample to you for an evaluation if you need. Q: What about lead time?
A: the quantity is small receive deposit can arrange delivery immediately, the quantity is large 3-5 days, can also arrange
delivery time according to customer requirements
Q : Are you the Gold and Assessed supplier on alibaba?
A : Yes. We are the gold and assessed supplier on alibaba and has got the factory report by SGS.
Not only is stringent internal quality control carried out at SD MARLBORO, but regular testing and analyzing of our product performance is implemented by authoritative testing organizations in Europe and the United States.
