Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZIYE
-
Voltage:
-
380V/220V/415V/110V
-
Dimension(L*W*H):
-
1.7*1.1*1.6m
-
Weight:
-
850 kg
-
Web Width:
-
420 mm
-
Max Die Cutting Speed:
-
120m/min
-
Unwind:
-
3" Pneumatic Air Expanding Shaft
-
Slitting Width:
-
≥15mm
-
Auto Counter:
-
Yes
-
Web Guide System:
-
Yes, Two Electrical Eyes
-
Product:
-
Adhesive label, paper, plastic film...
-
Name:
-
servo controlled printed label full rotary die cutting machine
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Online support
Quick Details
-
Type:
-
Slitting Rewinder
-
Production Capacity:
-
120 m/min
-
Max. workable width:
-
420 mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZIYE
-
Voltage:
-
380V/220V/415V/110V
-
Dimension(L*W*H):
-
1.7*1.1*1.6m
-
Weight:
-
850 kg
-
Web Width:
-
420 mm
-
Max Die Cutting Speed:
-
120m/min
-
Unwind:
-
3" Pneumatic Air Expanding Shaft
-
Slitting Width:
-
≥15mm
-
Auto Counter:
-
Yes
-
Web Guide System:
-
Yes, Two Electrical Eyes
-
Product:
-
Adhesive label, paper, plastic film...
-
Name:
-
servo controlled printed label full rotary die cutting machine
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Online support
Product Description
D

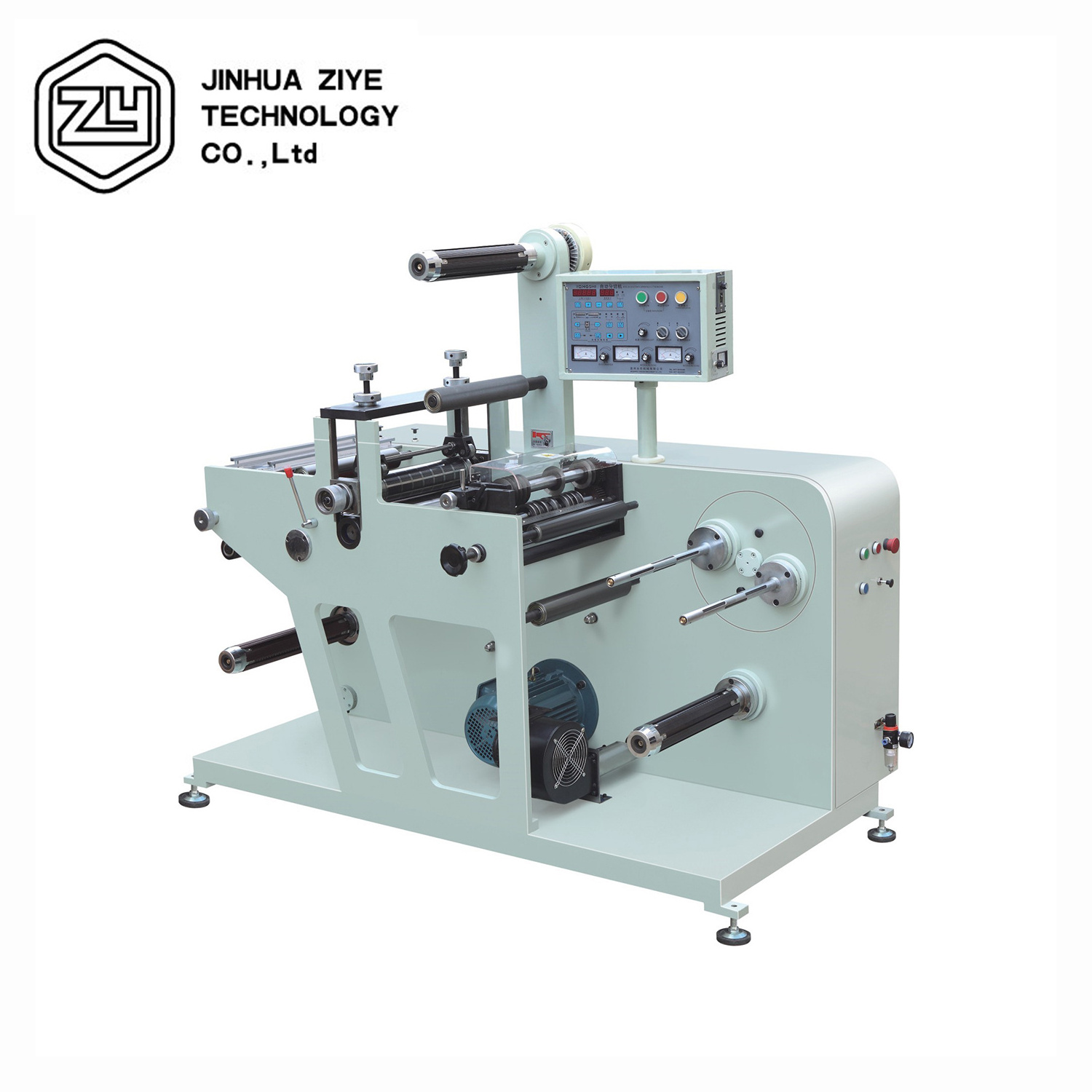

ES420T Servo Controlled Printed Label Flexible Full Rotary Die Cutting Machine For Sticker Labels
Feature&Configuration:
1. One Die Cutting Station + One Slitting Station.
2. With 1pc 3’’ Unwinding Shaft, 2pcs 1.5’’ Rewinding Shafts + 1pc 3” Rewinding Air Shaft(turret Rewind, With Airtac Pneumatic Parts)
3. With Meter/number Counter.
4. With Two Photoelectric Eyes---web Guide System
5. With 8 Pcs Rotary Slitting Knife.
6. 1pc Magnetic Brake, 3pcs Magnetic Clutch.
7. 1pc Blower. Machine Has Blower Fan To Blow Away The Trimmed Sides.
8. 1pc Auto-counter
9. 1pc Main Motor
10. 1pc Synchronous Motor
11. Frequency Converter
12. With Turret Rewind
Samples
Product Paramenters
|
Machine Model
|
DES320T
|
DES420T
|
|
Slitting Speed
|
120m/min
|
120m/min
|
|
Die Cutting Speed
|
120m/min
|
120m/min
|
|
Max. Web Width
|
320mm
|
320mm
|
|
Max. Unwinding Diameter
|
550mm
|
550mm
|
|
Max. Rewinding diameter for big roll
|
500mm
|
500mm
|
|
Max. Rewinding diameter for small roll
|
300mm
|
300mm
|
|
Length of Die Cutting
|
178-470 mm
|
178-470 mm
|
|
Dimensions
|
1700*1000*1600mm
|
1700*1100*1600mm
|
|
Main motor
|
3 KW
|
3 KW
|
|
Voltage
|
220V/380V
|
220V/380V
|
|
Min. Slitting width
|
15mm
|
15mm
|
|
Machine weight
|
750 kgs
|
850 kgs
|
Details Images
Slitting Unit
1-Set Slitting Unit comes with 8 Sets Rotary Knives in Standard Configuration.
Die Cutting Unit
Cooperate With Magnetic Cylinder and Flexible Dies
Unwind Unit
With 1 pc 3" Air Expanding Shaft.
Can accept max diameter 550mm material jumbo roll. (can be customized)
Rewind Unit
With 2pcs 1.5” Air shaft, (Turret Rewind), can accept 300mm diameter roll.
With
1 pc 3" Air Expanding Shaft.
, can accept 500mm diameter roll.
Magnetic Brake and Clutch
With One 25 N.M Magnetic Brake, Two 25 N.M Magnetic Clutch
Machine Drive By Synchronous Belt. Low Noise and Stable Operation
Controller Panel
Speed Controller
Tension Controller
Counter...
Blower Fan
Machine Has Blower Fan To Blow Away The Trimmed Sides to collect waste.
Counter
Machine can count with meter or quantity.
