Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000-6500K, 3000~6500K
-
Support Dimmer:
-
YES
-
Input Voltage(V):
-
AC100-240V 100-277V 277-480V
-
Lamp Luminous Flux(lm):
-
12000~28000
-
Working Temperature(℃):
-
-20 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
A2107-1500- 200W-xx
-
Item Type:
-
linear led high bay light
-
Beam angle:
-
150 Degree
-
PF:
-
PF>0.96
-
Installation:
-
Suspended or Ceiling-mounted
-
Power:
-
80w~250w available
-
Dimension:
-
2ft, 3ft, 4ft, 5ft
-
LED Light Source:
-
2835SMD
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
160, 140lm/w, 150lm/w, 160lm/w
-
Lamp Body Material:
-
Aluminum Alloy
-
Application:
-
Warehouse
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000-6500K, 3000~6500K
-
Support Dimmer:
-
YES
-
Input Voltage(V):
-
AC100-240V 100-277V 277-480V
-
Lamp Luminous Flux(lm):
-
12000~28000
-
Working Temperature(℃):
-
-20 - 45
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
A2107-1500- 200W-xx
-
Item Type:
-
linear led high bay light
-
Beam angle:
-
150 Degree
-
PF:
-
PF>0.96
-
Installation:
-
Suspended or Ceiling-mounted
-
Power:
-
80w~250w available
-
Dimension:
-
2ft, 3ft, 4ft, 5ft
-
LED Light Source:
-
2835SMD

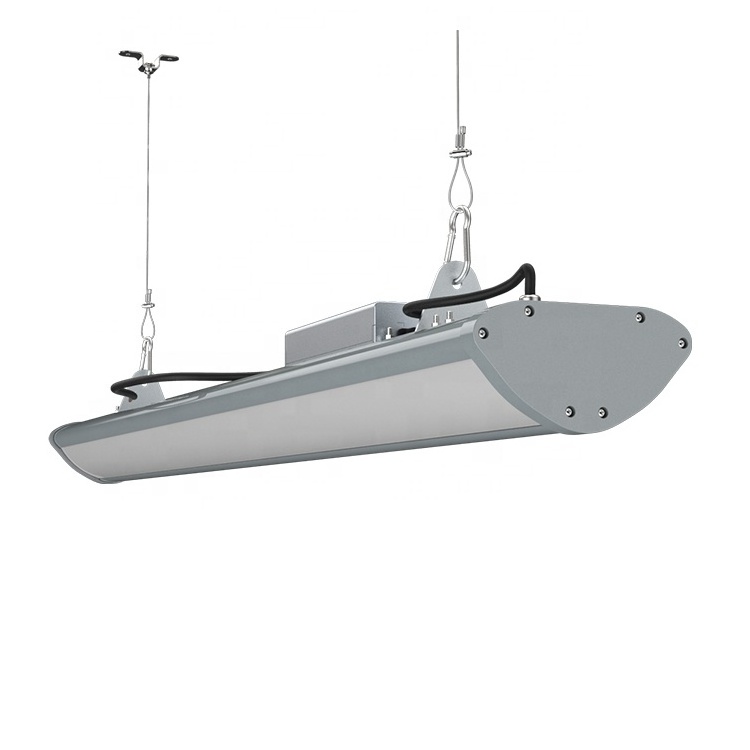

LINEAR LED HIGH BAY TUBE LIGHT FIXTURE
A2107 LED Linear High Bay is made of the electrophoresis coating Aluminum to upgrade the corrosion-proof ability of light. The finely-engineered fixture dissipates heat and keeps the LEDs inside cool and bright for years and years, meanwhile expanded the luminaire’s lighting area reaches 240 degrees.
CONSTRUCTION
| Dimension | 2FT,3FT,4FT,5FT |
| Housing | Aircraft Aluminum |
| Finish | Silver (standard), White, Black |
| Mounting | Surface mount brackets (standard),Wall mount and suspension sets optional |
| Cover | Polycarbonate:Milky cover (standard), Clear cover |
| IP Rating | IP65 |
| IK | IK10 |
ELECTRICAL
| Available Watts | 60W, 80W, 100W, 120W, 150W, 200W,240W |
| Input Voltages | AC100-240V 50/60Hz standard |
| Power Factor | >0.95 |
| THD | <15% |
OPTICAL & PERFORMANCE
| LED Chips | LM80/2835 Led Chips |
| Luminous Efficacy | 120/140/160 LM/W |
| Lumen Output | 7200-40000LM |
| CCT | 3000/4000/5000/6000/6500K |
| CRI | >80 |
| Beam Angles | 240° |
OPTIONS
| Dimming | 0-10V| Dali Dimming |
| Function | Microwave Sensor| Emergency |
| Input Voltages | AC200~240V |
GENERAL
| Lighting | Even illumination; Non-glare |
| Lifespan | 50,000HRS |
| Warranty | 5 Years |
| Operating Temp | -20°C ~ +45°C |
| Storage Temp | -30°C ~ +70°C |
| Lighting area | 240° |
| Certifications | ENEC,TUV, SAA, CB, CE, RoHS |
| Model No. | Wattage | Voltage | CCT | Lumens(Lm) | Dimension (mm) |
| A2107-600-60W | 60W | AC100-240V | 3000~6500K | 9600 | 600*154*79 |
| A2107-600-80W | 80W | 12800 | |||
| A2107-900-100W | 100W | 16000 | 900*154*79 | ||
| A2107-900-120W | 120W | 19200 | |||
| A2107-1200-150W | 150W | 24000 | 1200*154*79 | ||
| A2107-1500-200W | 200W | 32000 | 1500*154*79 | ||
| A2107-1500-240W | 240W | 38400 |
Widely used in Airport, Auto Dealership, Plant workshop, Garages, Stadiums, Gymnasiums, Industrial & Warehouse, Recreation & Public Venues, etc.
