Quick Details
-
Model Number:
-
3660
-
Style:
-
Radio Control Toy
-
Description:
-
3660 brushless motor
-
Battery:
-
2s~3s
-
Connector:
-
4mm
-
Function:
-
waterproof
-
Color:
-
Black
-
Certificate:
-
CE ROHS
-
Speed Electric Controller:
-
80A ESC
Quick Details
-
Use:
-
Vehicles & Remote Control Toys
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rocket
-
Model Number:
-
3660
-
Style:
-
Radio Control Toy
-
Description:
-
3660 brushless motor
-
Battery:
-
2s~3s
-
Connector:
-
4mm
-
Function:
-
waterproof
-
Color:
-
Black
-
Certificate:
-
CE ROHS
-
Speed Electric Controller:
-
80A ESC

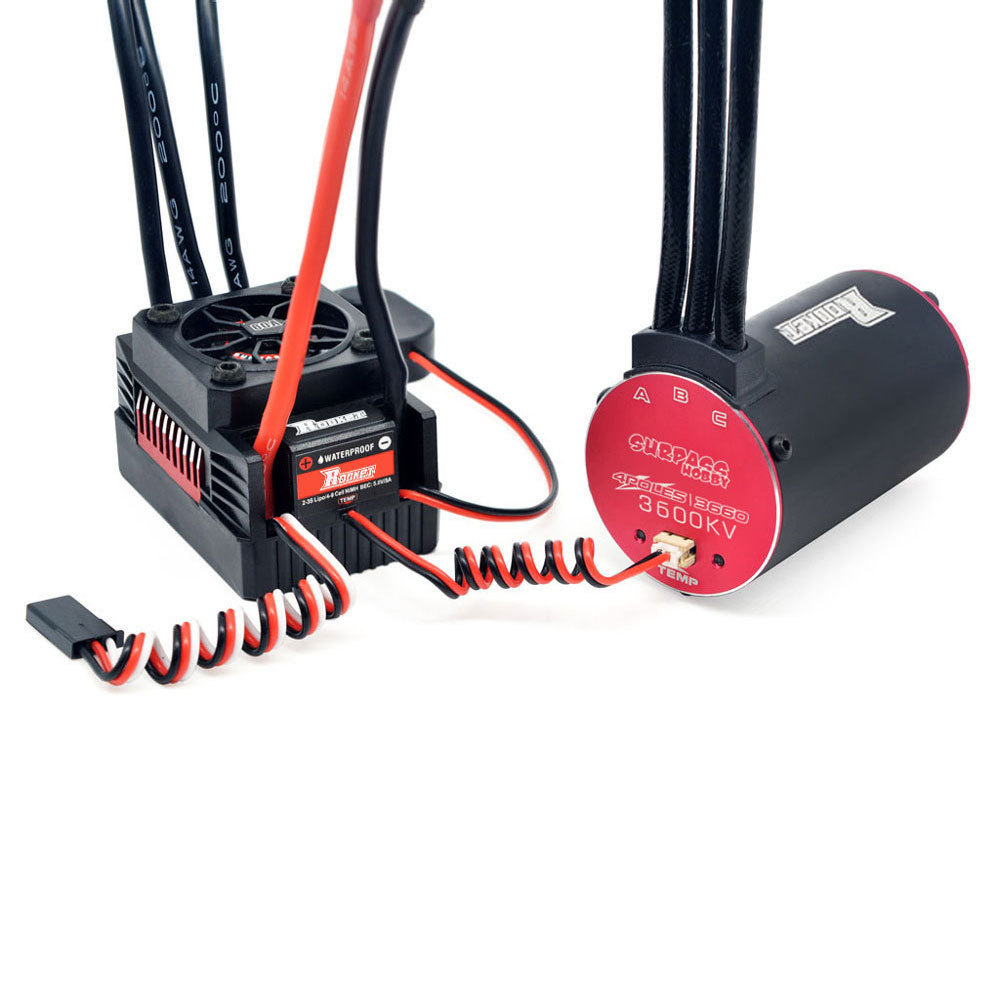

RC radio control toys car parts brushless dc motor 3660 +80A ESC combo for 1/10 on road/Buggy Monster Cars
Features:
>Pole-4 rotor design , with strong torque and stable output power .
>High hardness aluminum CNC case, high temperature resistant copper
wires , 0.2mm stator.
>Explosion-proof rotor, high toughness stainless steel shaft, high precision
and high quality bearing make the motor super durable.
>Removable/Replaceable Rotor design, Convenient for cleaning and
maintenance, Effectively extend the service life of the motor and improve
work efficiency.
>The motor has built-in temperature unit and ports, which can realize the
motor temperature Overheat protection function by matching with the ESC.
| Product | Item Number | Kv(RPM/Volt) | Watts |
Max
voltage |
Max
Amps |
Rotor
Poles |
IO(A) | Resistance(Ω) | Max RPM | Motor size(mm) | Weight(g) | Shaft(mm) |
| 3660/2.5T | SP-036602-01 | 4250 | 1300 | <12V | 108A | 4 | 5.0A | 0.0038 | 50000 | 36mm×60mm | 245 | 5.0mm |
| 3660/3T | 3600 | 1300 | <13V | 100A | 4 | 4.8A | 0.005 | 50000 | 36mm×60mm | 245 | 5.0mm | |
| 3660/3.5T | 3200 | 1300 | <15V | 87A | 4 | 3.8A | 0.0075 | 50000 | 36mm×60mm | 245 | 5.0mm | |
| 3660/4T | 2800 | 1300 | <19V | 68A | 4 | 2.3A | 0.008 | 50000 | 36mm×60mm | 245 | 5.0mm |
DECLARATION
This is Electronic Speed Controller (ESC) for car. High power system for RC model is very dangerous, so please read this
manual carefully. Since we can't control over the correct use, installation, application, or maintenance of our products,
we've no liability shall be assumed nor accepted for any damages, losses or costs resulting from the use of the product.
Any claims arising from the operating, failure of malfunctioning etc. will be denied. We assume no liability for personal
injury, consequential damages resulting from our product or our workmanship.
FEATURES
1. Water-proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in
water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
2. Specially designed for RC car with excellent start-up, acceleration and linearity features.
3. Compatible with sensorless brushless motor.
4. The strong resistant current capability, excellent heat dissipation.
5. Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / ESC Over-heat protection /
Motor Over-heat protection / Throttle signal loss protection / Motor blocked protection
.
6. Built-in switch-mode BEC 5.8V/5A for usage with high torque and high voltage servos.
7. Easily programmed and compatible with pocket-sized program card.
