Quick Details
-
Dimension(L*W*H):
-
Based on specific machines
-
Weight:
-
2000 KG
-
Place of Origin:
-
Zhejiang, China
-
Voltage:
-
380V/220V
-
Advantage:
-
Energy Saving
-
Quality:
-
Top Level
-
Final product:
-
Jam and marmalade
-
Main structure:
-
SUS304 and SUS316L stainless steel
-
processing line:
-
jam or sauce processing
-
After-sales Service Provided::
-
supplied
Quick Details
-
Machinery Capacity:
-
customized
-
Brand Name:
-
SUOTE
-
Year:
-
New and Unused
-
Dimension(L*W*H):
-
Based on specific machines
-
Weight:
-
2000 KG
-
Place of Origin:
-
Zhejiang, China
-
Voltage:
-
380V/220V
-
Advantage:
-
Energy Saving
-
Quality:
-
Top Level
-
Final product:
-
Jam and marmalade
-
Main structure:
-
SUS304 and SUS316L stainless steel
-
processing line:
-
jam or sauce processing
-
After-sales Service Provided::
-
supplied
Wenzhou Suote Co., Ltd.(the former Wenzhou SuoteLight Industry Machinery Co.,LTD)was established in 1998. it is located in Wenzhou Economic and Technological Development Zone，No.838, Binhai 9 Road. lt is a company specializing in design,manufacturing, installation and other professional technologies, mainly in the service, new energy,food, biochemical , environmental protection and other systems engineering. Theregistered capital of the company is 10.08 million. it covers an area of 12,600m2 and employs 147 people. The products have passed the national GMP certification, and was named as a science andtechnology-based enterprise in Zhejiang Province in May 2015.
|
|
SJN II 500
|
SJN II 1000
|
SJN ||1500
|
SJN || 2000
|
|
Evaporation capacity(Kg/h)
|
500
|
1000
|
1500
|
2000
|
|
Steam consumption(Kg/h)
|
s250
|
s500
|
s750
|
s1000
|
|
Size
|
4x1.5x3.3
|
5x1.6x3.5
|
6x1.6x3.7
|
6.5x1.7x4.3
|
|
Circulating water consumption (Th)
|
6
|
12
|
15
|
18
|
|
Evaporation temperature
|
first level
|
80-90
|
Vacuum degree (Mpa)
|
first level
|
0.02~0.04
|
||||
|
|
second level
|
55-70
|
|
second level
|
0.05-0.06
|
||||
|
Vapor pressure (Mpa)
|
<0.25
|
|
Concentrated Specific Gravity
|
1.2-1.3
|
|
||||
|
Container Category
|
1 Class
|
|
|
|
|
||||

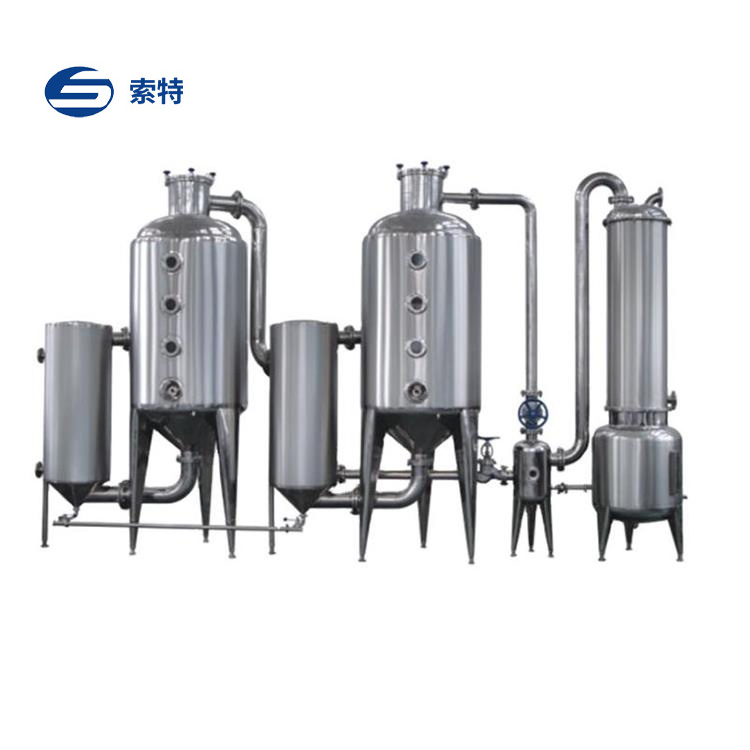

The Complete Pear Paste Production Line Equipment
Processing line is mainly used for processing
pear paste.
Process
Ingredients - Washing - Cutting - Softening - Juicing - Filtering - Concentration - Adding Sugar - Adding Chinese Juice
Features and Application
1.
Large
condenser configuration
2. It can be
split into two single effect and combined equipment
with different production methods for concentration.
3. After decomposition, the single effect evaporation capacity of the two sets is
2.5 times
that of the double effect evaporation.
4. Fully comply with "
GMP
" standards.
