Quick Details
-
Model Number:
-
RO-35
-
Max. Current:
-
16A
-
Mechanical Life:
-
Over 10000times
-
color:
-
can be optional;
-
Material:
-
can be metal or plastic
-
function:
-
can 1-2-3
-
glow-wire test:
-
850℃
-
Shell material:
-
PA66
-
Safety certification:
-
VDE,CQC,ENEC
-
Operating temperature range:
-
-40°C to 125°C
-
Environmental humidity:
-
45%~95%
-
Insulation resistance:
-
great than or equal to 100 mΩ
-
flammability rating:
-
UL94v0
Quick Details
-
Max. Voltage:
-
250Vac,
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NONE
-
Model Number:
-
RO-35
-
Max. Current:
-
16A
-
Mechanical Life:
-
Over 10000times
-
color:
-
can be optional;
-
Material:
-
can be metal or plastic
-
function:
-
can 1-2-3
-
glow-wire test:
-
850℃
-
Shell material:
-
PA66
-
Safety certification:
-
VDE,CQC,ENEC
-
Operating temperature range:
-
-40°C to 125°C
-
Environmental humidity:
-
45%~95%
-
Insulation resistance:
-
great than or equal to 100 mΩ
-
flammability rating:
-
UL94v0

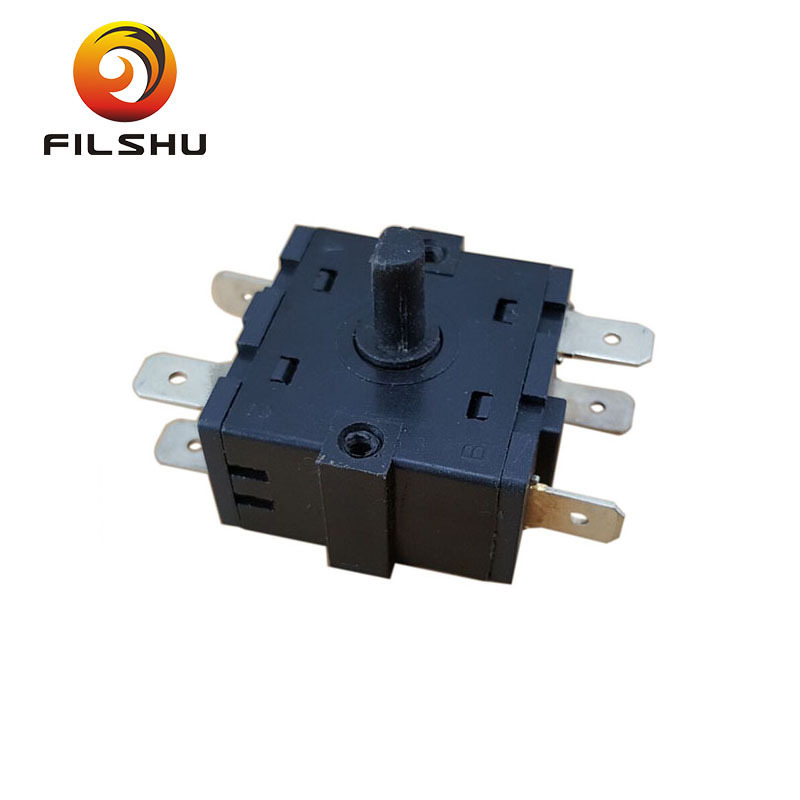

4 position electrical changeover rotary switch 16a 250v
Specification
1.VDE, RoHS approved..ISO9001:2008;
2.16(4)A 250Vac T125 1E4;ENEC;
3.15.1A 125/250Vac;
4.can be with 3,6,terminals,so function can be optional ;
5.Electrical life :Over 10000times;
6.Material can be plastic or metal case;
6.Ued for gear switching of minitype household appliances,ETC.juicers, food processor .Meat gear machin .
| Electrical life 1E4 |
| Mechanical life 5E4 |
| Contact resistance ≤ 50mΩ |
| Insulation resistance > 100MΩ |
| High voltage resistance below 3mm 750V |
| Resistance to tracking PTI 175 |
| Contact gap DT with centre-OFF below 3mm |
| Protection type IP20 |
| Ambient temperature 0 °C ...+125 °C |
| Flammability UL94V-0 |
| Heat and fire resistance 850 °C |
| Material of housing and rocker PA/PC |
| Material of Contacts Ag or AgCdO |
| Material of Terminals Copper Alloy |
|
Temperature rise at the terminals Max.30K (UL1054)
(According to electrical life endurance) Max.55K (EN61058-1) |
| Push-on force of terminals ≥ 96N |
1. Packaging : Cartons and plastic bags,depends on the customer's demand
2. Shipment : Shipping worldwidely by sea, air or Express (small quantity) like EMS,UPS,FedEx,DHL
1. Quality guaranteed : Special supervision team control quality.
2. After service guaranteed : Assure you the best services at all times.
3. Delivery time: Your shipment will be loaded in 10-30 days,depends on quantity.
4. Payment terms : T/T,PayPal,Credit card
5. OEM & ODM are available.
