Quick Details
-
Model Number:
-
YD series
-
Output Power:
-
0.55~22HP
-
Frequency:
-
50HZ or 60HZ
-
Product:
-
YD series Three Phase Pole Changing Two-Speed Asynchronous Motor
-
Color:
-
Can be customized
-
Insulation class:
-
B.F
-
Frame NO.:
-
80~180
-
Operation service:
-
S1
-
EFF:
-
EF3 EF2 EF1
-
Power:
-
0.45~18.5kw
-
Rated Voltage:
-
+/-5%
-
Protection class:
-
IP55
-
Ambient Temperrture:
-
-15℃~40℃
Quick Details
-
AC Voltage:
-
460 / 480 V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TIANYUAN
-
Model Number:
-
YD series
-
Output Power:
-
0.55~22HP
-
Frequency:
-
50HZ or 60HZ
-
Product:
-
YD series Three Phase Pole Changing Two-Speed Asynchronous Motor
-
Color:
-
Can be customized
-
Insulation class:
-
B.F
-
Frame NO.:
-
80~180
-
Operation service:
-
S1
-
EFF:
-
EF3 EF2 EF1
-
Power:
-
0.45~18.5kw
-
Rated Voltage:
-
+/-5%
-
Protection class:
-
IP55
-
Ambient Temperrture:
-
-15℃~40℃

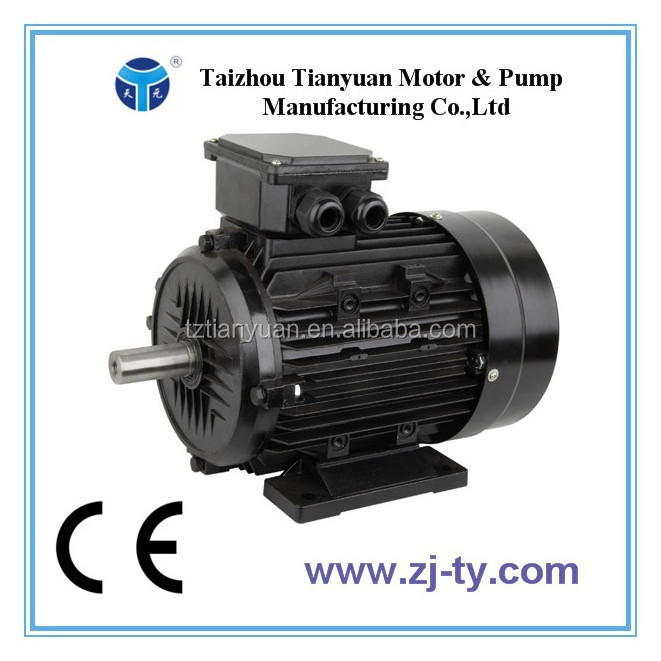

YD series Three Phase Pole Changing Two-Speed Asynchronous Motor
| 1.Features |
1.Great starting torque
2.Low nosie
3.Low vibration
4.Mounting dimensions are complied with the standard of the International Electrotechnical Commission(IEC)
| 2.Application |
- YD series pole-changing multi-speed three phase induction motor are derived from Y2 series motors.
- It can change speed easily.
- The speed of this series motor can be changed step by step according to the demends of load characteristics,thereby reaching the aims of economizing on electricity and simplifying the system of speed variation.
- It used widely in the industry departments of machine tools,chemical industry,textile,metallurgy and mine,printing,gearbox,agricultural machinery and etc.
| 3.Working Conditions |
- Ambient temperature:-15C~40C
- Altitude:no higher than 1000meters from sea level
- Voltage:380+/-5% or 110V
- Frequency:50HZ or 60HZ
- Insulation class :B.F
- Coolong type:IC411
-
Duty type:S1.
| 4.Main Technical Paremeters |
|
No. |
Brand Name: |
Tianyuan |
|
1 |
Series Name: |
YD series Three Phase Pole Changing Two-Speed Asynchronous Motor |
|
2 |
Certificate: |
CE,ISO9001 |
|
3 |
Phase: |
Three Phase |
|
4 |
Type: |
Induction Motor |
|
5 |
Structure: |
Asynchronous Motor |
|
6 |
Housing |
Aluminium/Cast iron |
|
7 |
Rotor |
45# Steel |
|
8 |
Voltage: |
380V or on request |
|
9 |
Rate Frequency |
50HZ/60HZ |
|
10 |
Current |
0.5~42.7A |
|
11 |
Standard: |
IE2 |
|
12 |
Output Power: |
0.45~18.5kw |
|
13 |
Wire: |
100% copper |
|
14 |
Poles: |
2P, 4P, 6P, 8P |
|
15 |
Duty: |
Continous S1 |
|
16 |
Protect Feature: |
Totally Enclosed |
|
17 |
Insulation Class: |
B.F |
|
18 |
Protection Class: |
IP55 |
|
19 |
Speed |
730-2860r/min or on request |
|
20 |
Ambient Temperature |
-15°C-40°C |
|
21 |
IM: |
B3,B5,B35,B14,B34 |
|
22 |
Standard: |
Confirm to IEC international standard |
|
23 |
Delivery Time: |
30-60 Days |
|
24 |
Package |
Packed with export requirement protect the motors and convenient for transport. |
| 5.Model Form |
| 6.Three Phase Motor Dimensions(mm) |
