The ESP series is the defining standard for amplifier design today.No compromises,no gimmicks,Just briliant engineering backed by superior manufacturing,support and an unsurpassed commitment to quality.Like all amps,the defining characteristic of the ESP Series is sonic accuracy.A tight ,rock-solid low end,with smooth,detailed highs and a well-defined midrange,in short,the most accurate reproduction of an audio sigal you’ve ever heard.And because we put the quality of sound above all else,it is the most coveted amplifiier in the business.when it comes to maufacturing amps,our work is based on one simple fact: there are no short cutsto quality ,And our ESP have proven it time again in some of the most demanding applications in the world,Developing innovative products that meet your specific needs is what we are about. We provide a practical solution to bi-amplifier system app-lications such as stage monitors.Each amp combines a highand medium-power module in a single.low profile unit.
Feature: Full reliability of circuit; Overload of speaker load; Short-circuit of speaker wire; High /low voltage stability;
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
ESP-1800
-
Dimension:
-
483W*488D*133H
-
Power Supply Mode:
-
Other
-
SNR:
-
≥110dB
-
Output Power:
-
1800W*2
-
Connection Type:
-
Other
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KSA
-
Model Number:
-
ESP-1800
-
Dimension:
-
483W*488D*133H
-
Power Supply Mode:
-
Other
-
SNR:
-
≥110dB
-
Output Power:
-
1800W*2
-
Connection Type:
-
Other
Products Description
ESP SERIES AMPLIFIER

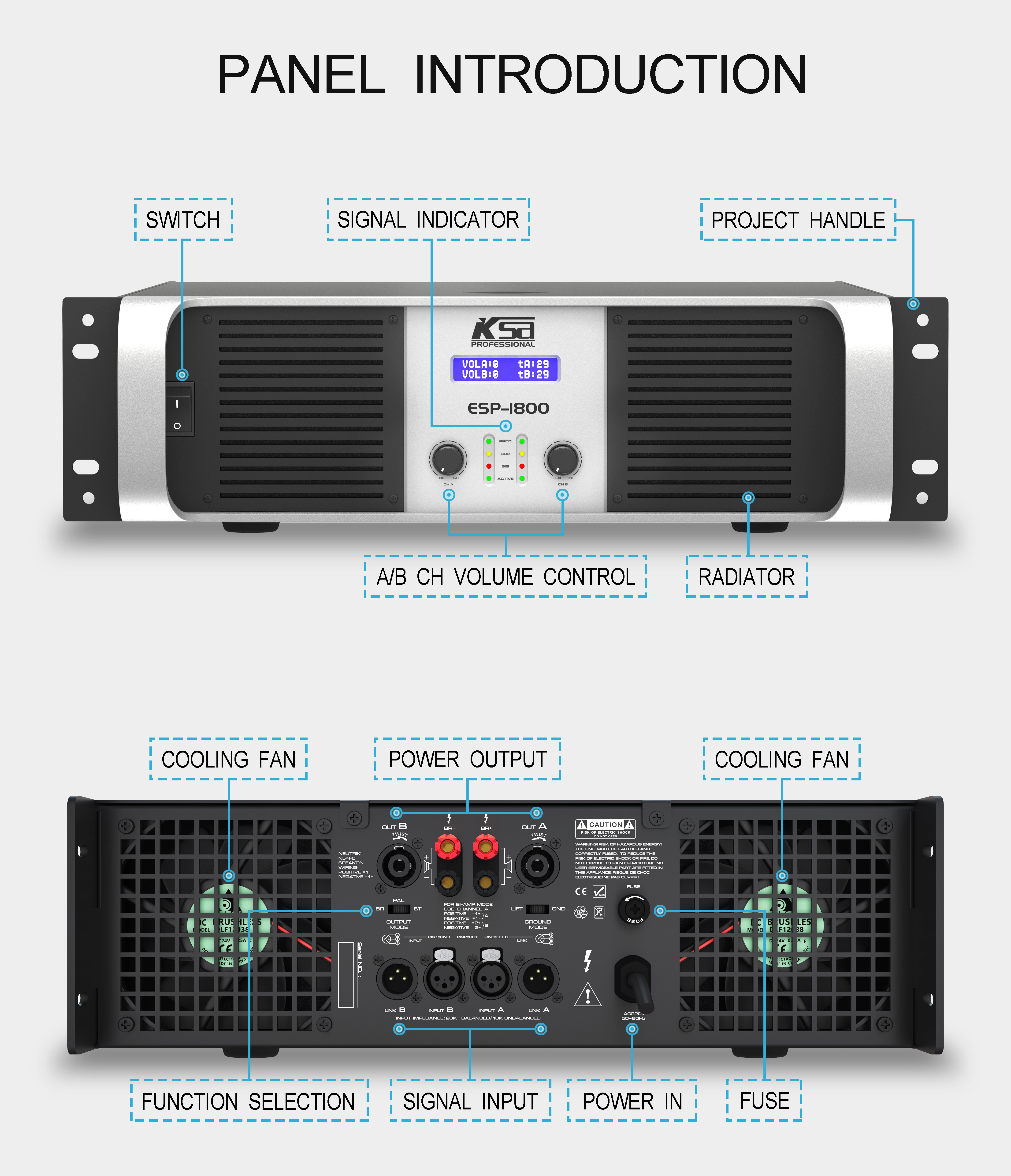

Panel Introduction
Specification
|
General
|
ESP-450
|
ESP- 650
|
ESP-850
|
ESP-1050
|
ESP- 1350
|
ESP - 1500
|
ESP-1800
|
||||||
|
8Ω Stereo
|
465W X2
|
650W X2
|
850W X2
|
1050WX2
|
1350W X2
|
1500W X2
|
1800WX2
|
||||||
|
4Ω Stereo
|
700WX2
|
1000WX2
|
1250WX2
|
1650WX2
|
2050WX2
|
2400WX2
|
2800W X2
|
||||||
|
2Ω Stereo
|
1050WX2
|
1500WX2
|
1800W X2
|
2500W X2
|
3060W X2
|
3600WX2
|
4000WX2
|
||||||
|
8Ω Bridge
|
1400W
|
2000W
|
2500W
|
3300W
|
4000W
|
4800W
|
5600W
|
||||||
|
Signal to noise
|
≥120dB
|
≥115dB
|
≥112dB
|
≥110dB
|
≥110dB
|
≥110dB
|
≥110dB
|
||||||
|
Slew rate
|
80V/μs
|
90V/μs
|
90V/μs
|
100V/μs
|
100V/μs
|
103V/μs
|
105V/μs
|
||||||
|
Damping factor
|
≥300
|
≥280
|
≥200
|
≥300
|
≥280
|
≥200
|
≥200
|
||||||
|
Frequency response
|
20HZ-20KHZ，±0.5dB
|
|
|
|
|
|
|
||||||
|
THD+N
|
≤0.1%，1/3Rate Power@8Ω1KHZ
|
|
|
|
|
|
|
||||||
|
IMD
|
≤0.01%，1/3Rate Power@8Ω
|
|
|
|
|
|
|
||||||
|
Input sensitivity
|
1V/OdB，Balance
|
|
|
|
|
|
|
||||||
|
Input Impedance
|
10K/20K.(Unbalance/Balance)
|
|
|
|
|
|
|
||||||
|
Cross talk
|
≥75dB
|
≥78dB
|
≥80dB
|
≥85dB
|
≥88dB
|
≥88dB
|
≥90dB
|
||||||
|
Input
|
Balance input XLR-F/Balance output XLR-M
|
|
|
|
|
|
|
||||||
|
Output
|
NL4 SPEAKON &Binding Post
|
|
|
|
|
|
|
||||||
|
Front panel indicator
|
ACTIVE，SIGNAL (-40dB)，CLIP (PEAK)，PROTECT
|
|
|
|
|
|
|
||||||
|
Output Circuitry
|
Class H
|
Class H
|
Class H
|
Class TD
|
Class TD
|
Class TD
|
Class TD
|
||||||
|
Cooling
|
Air flow from front to rear
|
|
|
|
|
|
|
||||||
|
NW/GW (kg)
|
19.42/21.2
|
21.18/23
|
23.82/25.6
|
33/35
|
34/36
|
34/37
|
37.5/39.3
|
||||||
|

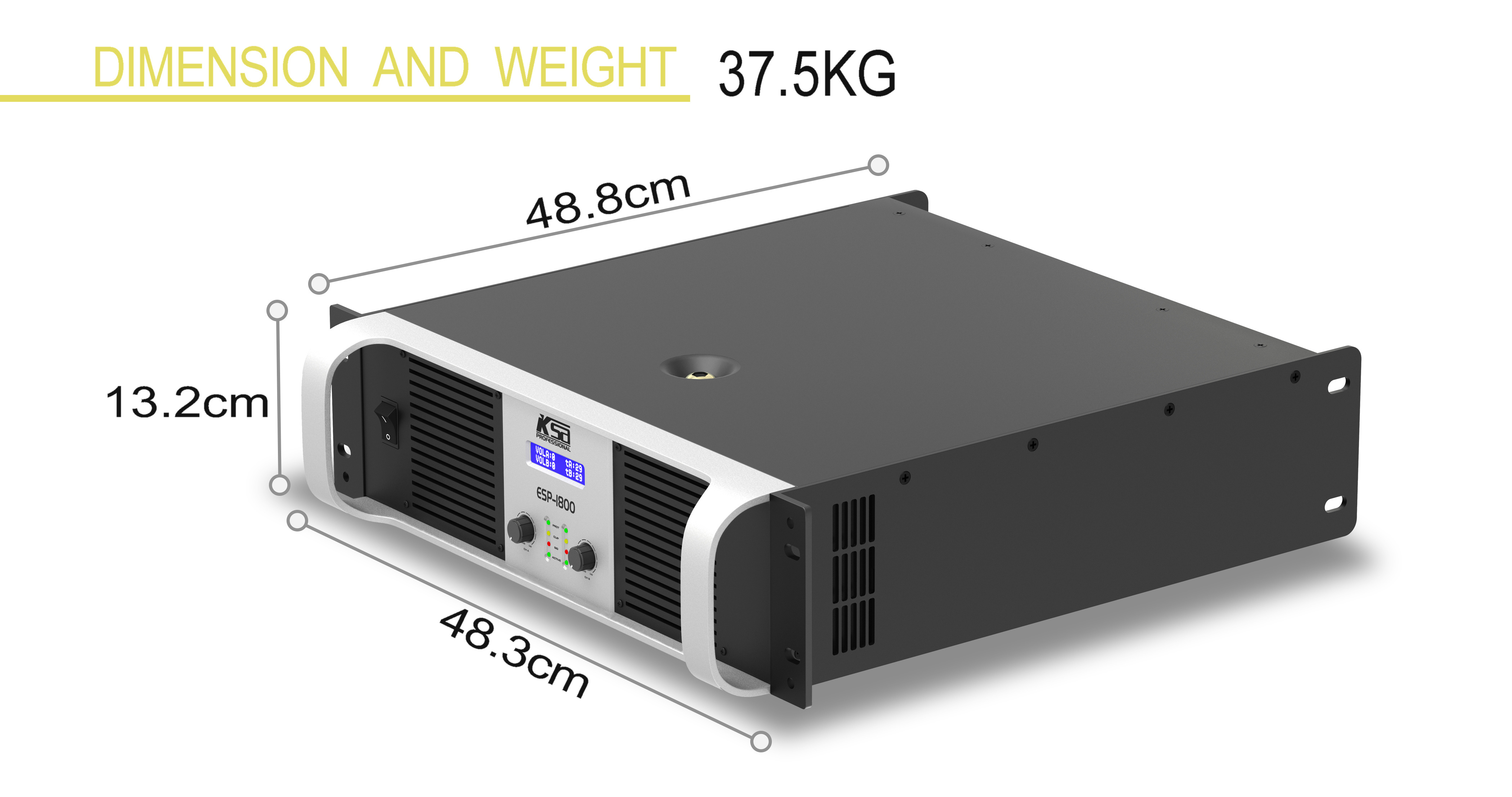

Product Dimension (mm)
|
483W*478D*88H(2U)
|
|
|
483W*488D*132H (3U)
|
|
|
|
||||||
|
Packaging Dimension (mm）
|
613W*570D*165H
|
|
|
613W*570D*200H
|
|
|
|
||||||
