Quick Details
-
Brand Name:
-
Bangnuo
-
Voltage:
-
380V
-
Power:
-
11.5 KW
-
Dimension(L*W*H):
-
8.5m*1.0m*1.0m
-
Weight:
-
7000 kg
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-

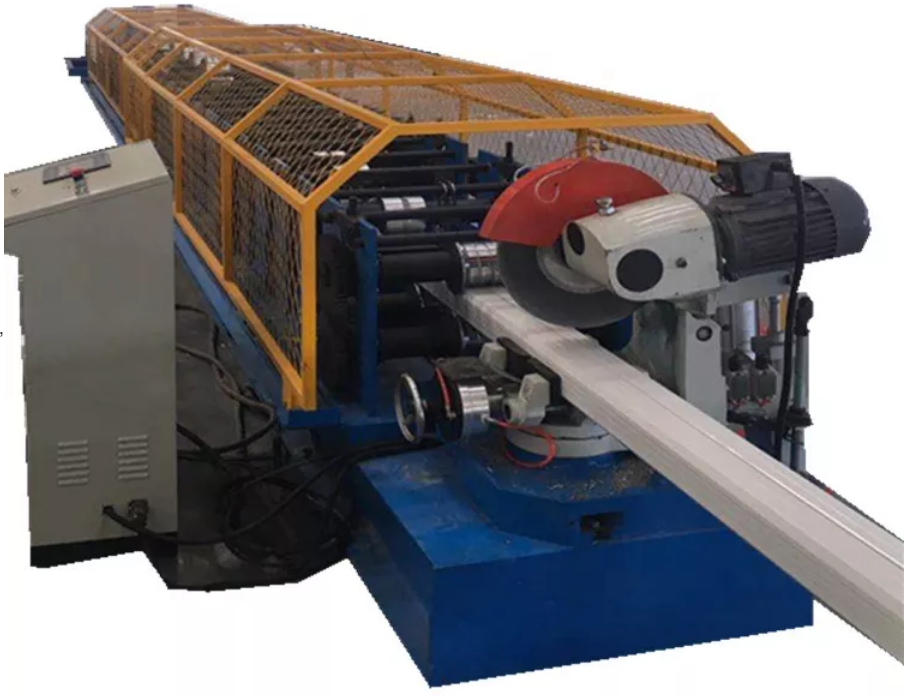

Down pipe
-
Color:
-
as required
-
Material:
-
steel
-
Control system:
-
PLC (Imported brand)
-
Certification:
-
CE ISO
Quick Details
-
Pipe Material:
-
Stainless steel
-
Production Capacity:
-
8~10m/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Bangnuo
-
Voltage:
-
380V
-
Power:
-
11.5 KW
-
Dimension(L*W*H):
-
8.5m*1.0m*1.0m
-
Weight:
-
7000 kg
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Down pipe
-
Color:
-
as required
-
Material:
-
steel
-
Control system:
-
PLC (Imported brand)
-
Certification:
-
CE ISO
Products Description
|
Description |
Explaination |
|
Working speed
|
3-5 m/min（Including shear time）
|
|
Pressed plate thickness
|
0.3-0.8mm
|
|
Control mode
|
Panasonic PLC
|
|
Decoiler
|
5 t manual decoiler
|
|
Number of molding passes
|
16 lanes
|
|
Roll material
|
After finishing, the surface of 45# steel is chrome plated.
|
|
Shaft material and diameter
|
45# Steel finishing，Shaft diameter is￠70mm
|
|
Main engine power
|
5.5kw
|
|
Power of hydraulic station
|
5.5kw
|
|
Hydraulic pressure
|
12Mpa
|
|
Scissors material
|
Cr12Mov， quench HRC 58-62℃
|
|
Length tolerance
|
3m±1.5mm
|
|
Voltage
|
380V, 50HZ,3 phase（According to customer requirements can be adjusted）
|
|
Transmission mode
|
1.0 inch single row chain
|
|
Equipment form
|
Slab-wall structure
|
|
Equipment color
|
Company color
|
|
Equipment size
|
L*W*H—8.5m*1.7m*1. 2m
|
|
Date of delivery
|
80 days
|
|
Payment method
|
30% advance charge，70% pay off on delivery
|
Flow Chart
Equipment composition
|
5 t manual decoiler
|
1 set
|
|
Molding machine
|
1 set
|
|
Control cabinet
|
1 set
|
|
Hydraulic station
|
1 set
|
