Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Resucerial
-
Model Number:
-
RE418
-
Color:
-
Clear/milky/ruby/black
-
Name:
-
Large diameter Quartz glass tube
-
Other name:
-
Quartz glass tube
-
Glass Type:
-
high ozone, ozone free, uv blocking, Low OH
-
Softening Point:
-
1680℃
-
Annealing Point:
-
1210℃
-
Density:
-
2.2g/cm3
-
Thermal Conductivity(20℃):
-
1.40W/m.℃
-
Specific Heat(20℃):
-
670J/Kg.℃
-
Dielectric Constant:
-
3.75
-
Strain Point:
-
1120℃
Quick Details
-
Type:
-
Clear Quartz Pipe
-
Application:
-
light,joint,chemical and etc
-
Outside Diameter:
-
1.50-450mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Resucerial
-
Model Number:
-
RE418
-
Color:
-
Clear/milky/ruby/black
-
Name:
-
Large diameter Quartz glass tube
-
Other name:
-
Quartz glass tube
-
Glass Type:
-
high ozone, ozone free, uv blocking, Low OH
-
Softening Point:
-
1680℃
-
Annealing Point:
-
1210℃
-
Density:
-
2.2g/cm3
-
Thermal Conductivity(20℃):
-
1.40W/m.℃
-
Specific Heat(20℃):
-
670J/Kg.℃
-
Dielectric Constant:
-
3.75
-
Strain Point:
-
1120℃
Low price high purity big diameter silica quartz high purity big diameter silica quartz glass tube
Quartz glass type:
- Clear fused quartz high purity big diameter silica quartz glass tube
- Dehydroxyl(baked) clear fused quartz high purity big diameter silica quartz glass tube
- low Hydroxyl(vacuum baked) clear fused quartz high purity big diameter silica quartz glass tube
- high ozone clear fused quartz high purity big diameter silica quartz glass tube
- uv blocking high purity big diameter silica quartz glass tube
- ozone free quartz high purity big diameter silica quartz glass tube
1.Fused quartz high purity big diameter silica quartz glass tube available as continuous machine drawn and automatic controlled tubing.
2.This glass had the typical characteriastics of high purity, good spectral transmission, well controlled dimension and lower OH and so on.
3.It serves as the first choice of heat resistant material for halogen lamps, mercury lamps, metal halide lamps and other quartz lamps, used in light, chemical, semiconductor and etc
4.This glass can be supplied in the range of 3-450mm outside diameter, 0.6-20.0mm wall thickness and 10-4500mm length.
5.Exhaust tubes with good CPK are suitable for high-speed streamline production.
6.And further processing of trim cutting, fire polishing, bending and pinching and etc. can be done according to the requirement of customers.
7.OH-content can be controled within 20ppm\15ppm\10ppm\5ppm\2ppm according to the requirement of customers.
Typical Application:
1.halogen,germicidal with ozone lamps,heater etc.
2.mercury,halogen,heater.
3.metal halide lamps and other applications requiring hydroxyl free material.
4.high rate of transmittance and hydroxyl free(import material produced).
5.high rate of transmittance of high ozone germicidal lamps(import material produced).
6.uv blocking applications including halogen and discharge lamps etc.
7.ozone free uv germicidal lamps etc.
8.optical, sunlight,semiconductor and etc.
Parameter of high purity big diameter silica quartz high purity big diameter silica quartz glass tube:
| Model | RE418 |
| Brand | Resucerial |
| Outer Diameter | 1.50-450mm |
| Material | high purity >99.95%(SiO2) |
| Wall Thickness | 0.30-20mm |
| Length | 10-4500mm |
| Shape | Straight, C, U,Round,Pear,spiral,domed, closed |
| Softening Point | 1680℃ |
| Annealing Point | 1210℃ |
| Strain Point | 1120℃ |
| Density | 2.2g/cm3 |
| Hardness | 5.5-6.50Mohs' |
| Design Tensile Strength | 4.80x 10 7 N/m^2 |
| Design Compressive Strength | 1.10x 10 9 N/m^2 |
|
Cofficient Of Thermal
Expansion(20-320℃) |
5.70x 10 -7 cm/cm.℃ |
| Thermal Conductivity(20℃) | 1.40W/m.℃ |
| Specific Heat(20℃) | 670J/Kg.℃ |
| Electrical Resistivity(350℃) | 7x 10 7 ohm.cm |
| Dielectric Constant | 3.75 |
| Dielectric Strength | 5x 10 7 V/m |
Clear Fused Quartz Glass Tube
|
Chemical Composition |
||||||||||
|
AL |
K |
Na |
Li |
Ca |
Mg |
Cu |
Mn |
Pb |
B |
Ti |
|
20 |
3.5 |
3.5 |
1.0 |
2.0 |
0.5 |
0.3 |
0.5 |
<0.01 |
<0.2 |
2.0 |
| Dimensional Tolerance | ||||||
| RANGE OF OD | OD | WT | siding | OUT OF ROUND | BOW/1220MM | |
| <6MM | ±2.0% | ±10% | 12% | 2.00% | 2.5MM | |
| 6.0-15.00MM | ±1.25% | ±8% | 10% | 1.50% | 2.5MM | |
| 15.0-20.0MM | ±1.25% | ±10% | 15% | 1.50% | 2.5MM | |
| 20.0-25.0MM | ±1.25% | ±10% | 15% | 1.50% | 3.0MM | |
| 25.0-30.0MM | ±1.35% | ±12% | 15% | 1.50% | 3.0MM | |
| 30.0-80.0MM | ±1.5% | ±14% | 15% | 2.00% | 3.0MM | |
| 80.0-150.0MM | ±1.5% | ±14% | 15% | 2.00% | 3.0MM | |
| 150.0-200.0MM | ±1.5% | ±14% | 15% | 2.00% | 3.0MM | |
| 200.0-300.0MM | ±1.5% | ±14% | 15% | 2.00% | 3.0MM | |
| 300.0-450.0MM | ±1.5% | ±14% | 15% | 2.00% | 3.0MM | |

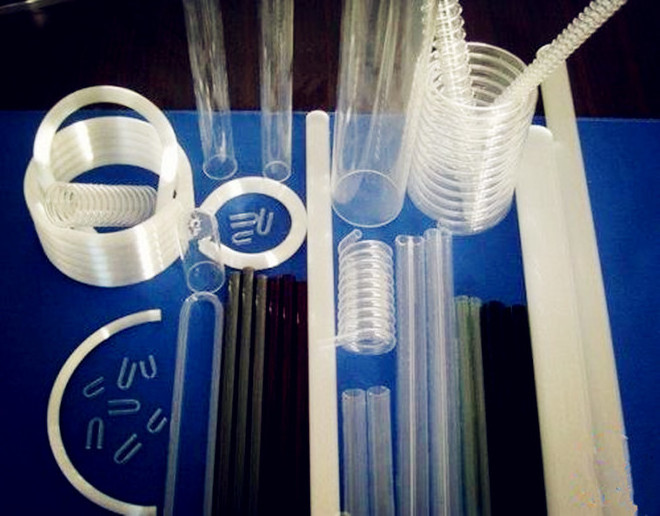

Photos of high purity big diameter silica quartz high purity big diameter silica quartz glass tube :
