This product is the best and allpositional rutile electrode, it is relatively insensitive torust or other surface impurities. It deposits smoothweld beads in all positions, including vertical down.Good slag detachability, low spatter and stable arc, It isvery easy to strike and re-strike, make it ideal for shortwelds, root runs and tacking
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
NO
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
no
-
Model Number:
-
E6013
-
Operating Current:
-
DC AC
-
Application:
-
Low Carbon Steel Structure
-
Product Name:
-
Welding Rod
-
Usages:
-
Welding Tool
-
Welding type:
-
Electric Welding
-
Packing:
-
20kg/carton
-
Certification:
-
GS
Quick Details
-
Material:
-
carbon steel
-
Welding Current:
-
International Standard
-
Operating Temperature:
-
<-20℃
-
Warranty:
-
NO
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
no
-
Model Number:
-
E6013
-
Operating Current:
-
DC AC
-
Application:
-
Low Carbon Steel Structure
-
Product Name:
-
Welding Rod
-
Usages:
-
Welding Tool
-
Welding type:
-
Electric Welding
-
Packing:
-
20kg/carton
-
Certification:
-
GS
Product Description

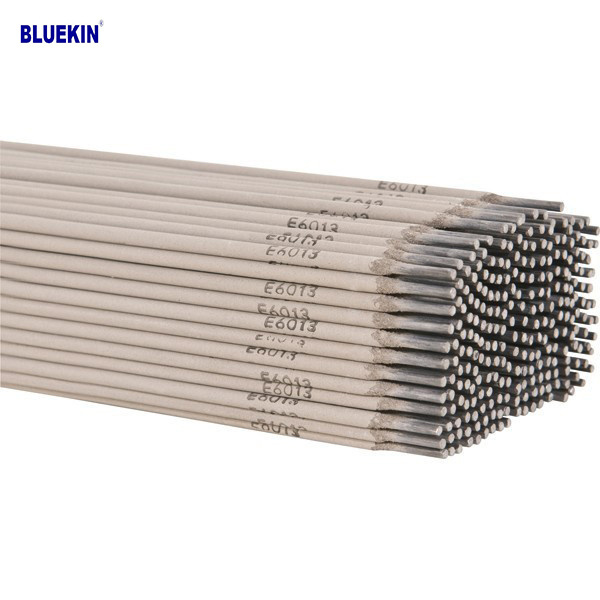

WELDING ROD
Specification
|
Product Name
|
Welding Rod
|
|
Material
|
Carbon steel
|
|
OEM
|
Avaliable
|
|
Standard
|
AWS GB ISO
|
|
Grade
|
6011 6013 6018 7018
|
|
Packing
|
2.5KG,5KG per box,NW20KG/CTNRock
|
|
Delivery
|
20 WORKING DAYS AFTER DEPOSIT
|
|
Used
|
Welding steel plate and structure
|
|
Typical Mechanical Properties:
|
|
|
|
Tensile strength(Mpa):
|
495
|
|
|
Yield stress(Mpa):
|
400
|
|
|
Elongation (%)
|
26
|
|
|
Impact values(≥47J/-20℃):
|
80
|
|
|
Reference Current (AC, DC)
|
|
|
|
|
|
|||||
|
Electrode Diameter(mm)
|
φ2.0
|
φ2.5
|
φ3.2
|
φ4.0
|
φ5.0
|
|||||
|
Length(mm)
|
300
|
300(350)
|
350
|
400
|
400
|
|||||
|
Welding Current (A)
|
40~70
|
55~95
|
80~130
|
120~180
|
160~230
|
|||||
|
V-up, OH
|
35~60
|
45~90
|
60~120
|
100~160
|
120~200
|
|||||
Advantage:
1. Stable arc, less splash
2. Shaped good appearance
3. Easy for removal of slag layer
4. Easy for striking arc and restriking arc.
5. Operable with low amperages on sheet metal
6. Slag control accommodates vertical down welding
Packing & Delivery
Inner packing:
1) 2.5mm x 300mm, 5kg/inner box + plastic bag
2) 3.2mm x 350mm, 5kg/inner box + plastic bag
3) 4.0mm x 400mm, 5kg/inner box + plastic bag
1) 2.5mm x 300mm, 5kg/inner box + plastic bag
2) 3.2mm x 350mm, 5kg/inner box + plastic bag
3) 4.0mm x 400mm, 5kg/inner box + plastic bag
Outer packing:
4box/carton 20kg/carton
