Quick Details
-
Weight (KG):
-
30 kg
-
vessel diameter:
-
8 inch
-
Membrane length:
-
40 inch
-
Port Design:
-
End/Side
-
Operating Temperature:
-
-7℃-49℃
-
Operating PH Range:
-
3-11
-
Cleaning PH Range:
-
2-12
-
Number of Membrane:
-
1-6 PCS
-
Product name:
-
FRP membrane housing
-
Usage:
-
RO membrane container
-
Application:
-
Wastewater Treatment
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YOUBER
-
Material:
-
FRP
-
Weight (KG):
-
30 kg
-
vessel diameter:
-
8 inch
-
Membrane length:
-
40 inch
-
Port Design:
-
End/Side
-
Operating Temperature:
-
-7℃-49℃
-
Operating PH Range:
-
3-11
-
Cleaning PH Range:
-
2-12
-
Number of Membrane:
-
1-6 PCS
-
Product name:
-
FRP membrane housing
-
Usage:
-
RO membrane container
-
Application:
-
Wastewater Treatment
Membrane components:
Dow, GE, Koch, Hydranautics, Saehan, Toray, TRISEP membrane components of other standards
Quality Assurance:
100% pressure vessels were tested with 1.2 – 1.5 times design pressure
100,000 times fatigue test
6 times design pressure burst test
100% pressure vessels have their own numbers, we can trace them

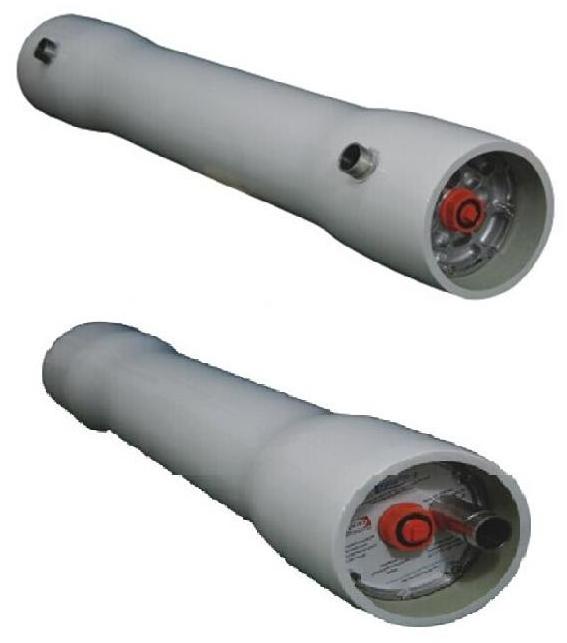

1. YB8040E-A-1 series FRP pressure vessel
|
Specification |
YB8040E150A |
YB8040E300A |
YB8040E450A |
|
Series |
A |
A |
A |
|
vessel diameter |
8 inch |
8 inch |
8 inch |
|
Membrane length |
40 inch |
40 inch |
40 inch |
|
Port Design |
End |
End |
End |
|
Design pressure |
150PSI |
300PSI |
450PSI |
|
Operating Temperature |
-7℃—49℃ |
-7℃—49℃ |
-7℃—49℃ |
|
Factory Test Pressure |
225PSI |
450PSI |
675PSI |
|
Operating PH Range |
3-11 |
3-11 |
3-11 |
|
Cleaning PH Range |
2-12 |
2-12 |
2-12 |
|
Number of Membrane |
1-6 PCS |
1-6 PCS |
1-6 PCS |
|
Specification |
YB8040E600A |
YB8040E800A |
YB8040E1000A |
YB8040E1200A |
|
Series |
A series |
A series |
A series |
A series |
|
Vessel diameter |
8 inch |
8 inch |
8 inch |
8 inch |
|
Membrane length |
40 inch |
40 inch |
40 inch |
40 inch |
|
Port Design |
End |
End |
End |
End |
|
Design pressure |
600PSI |
800PSI |
1000PSI |
1200PSI |
|
Operating Temperature |
-7℃—49℃ |
-7℃—49℃ |
-7℃—49℃ |
-7℃—49℃ |
|
Factory Test Pressure |
900PSI |
1200PSI |
1500PSI |
1800PSI |
|
Operating PH Range |
3-11 |
3-11 |
3-11 |
3-11 |
|
Cleaning PH Range |
2-12 |
2-12 |
2-12 |
2-12 |
|
Number of Membrane |
1-6 PCS |
1-6 PCS |
1-6 PCS |
1-6 PCS |
2. YB8040E-D series FRP pressure vessel
|
Specification |
YB8040E300D |
|
Series |
D |
|
Vessel diameter |
8 inch |
|
Membrane length |
40inch |
|
Port Design |
End |
|
Design pressure |
300PSI |
|
Operating Temperature |
-7℃—49℃ |
|
Factory Test Pressure |
450PSI |
|
Operating PH Range |
3-11 |
|
Cleaning PH Range |
2-12 |
|
Number of Membrane |
1-6 PCS |
3 . YB8040S-A series FRP pressure vessel
|
Specification |
YB8040S600A |
YB8040S800A |
YB8040S1000A |
YB8040S1200A |
|
Series |
A |
A |
A |
A |
|
Vessel diameter |
8 inch |
8 inch |
8 inch |
8 inch |
|
Membrane length |
40 inch |
40 inch |
40 inch |
40 inch |
|
Port Design |
side |
side |
side |
Side |
|
Design pressure |
600PSI |
800PSI |
1000PSI |
1200PSI |
|
Operating Temperature |
-7℃—49℃ |
-7℃—49℃ |
-7℃—49℃ |
-7℃—49℃ |
|
Factory Test Pressure |
900PSI |
1200PSI |
1500PSI |
1800PSI |
|
Operating PH Range |
3-11 |
3-11 |
3-11 |
3-11 |
|
Cleaning PH Range |
2-12 |
2-12 |
2-12 |
2-12 |
|
Number of Membrane |
1-6 PCS |
1-6 PCS |
1-6 PCS |
1-6 PCS |
4 . YB8040S-D series FRP pressure vessel
|
Specification |
YB8040S300D |
|
Series |
D |
|
Vessel diameter |
8 inch |
|
Membrane length |
40 inch |
|
Port Design |
side |
|
Design pressure |
300PSI |
|
Operating Temperature |
-7℃—49℃ |
|
Factory Test Pressure |
450PSI |
|
Operating PH Range |
3-11 |
|
Cleaning PH Range |
2-12 |
|
Number of Membrane |
1-6 PCS |
Stainless Steel RO membrane Filter Housing catalog:
1. YB1-RO40 stainless steel membrane housing
1. material:SUS304,SUS316L
2. end cover material:ABS,SUS304,SUS316L
3. maximum working pressure:250Psi
4. polishing treatment surface or wire drawing treatment surface
5. opening: end port
Performance parameter of YB1-RO40 stainless steel membrane housing
|
Model |
L(mm) |
L1(mm) |
D(mm) |
A(in) |
B(out) |
|
YB1-2514 |
414 |
360 |
Φ62 |
1/4" |
1/4" |
|
YB1-2521 |
592 |
538 |
Φ62 |
3/8" |
1/4" |
|
YB1-2540 |
1082 |
1028 |
Φ62 |
3/8" |
3/8" |
|
YB1-4014 |
428 |
368 |
Φ102 |
1/2" |
1/2" |
|
YB1-4021 |
605 |
545 |
Φ102 |
1/2" 3/4" |
1/2" |
|
YB1-4040 |
1087 |
1027 |
Φ102 |
1/2" 3/4" |
1/2" |
|
YB1-4080 |
2103 |
2043 |
Φ102 |
3/4" |
1/2" |
|
YB1-40120 |
3119 |
3059 |
Φ102 |
3/4" |
1/2" |
|
YB1-40160 |
4135 |
4075 |
Φ102 |
3/4" |
1/2" |
2. YB2-RO40 stainless steel membrane housing
1. material:SUS304,SUS316L
2. end cover material:ABS,SUS304,SUS316L
3. maximum working pressure:250Psi
4. polishing treatment surface or wire drawing treatment surface
5. opening: side port
Performance parameter of YB2-RO40 stainless steel membrane housing
|
Model |
L(mm) |
L1(mm) |
D(mm) |
A(in) |
B(out) |
|
YB2-2521 |
655 |
511 |
Φ62 |
1/2" |
1/4" |
|
YB2-2540 |
1136 |
994 |
Φ62 |
1/2" |
3/8" |
|
YB2-4021 |
668 |
515 |
Φ102 |
3/4" |
1/2" |
|
YB2-4040 |
1148 |
998 |
Φ102 |
3/4" |
1/2" |
|
YB2-4080 |
2164 |
2014 |
Φ102 |
3/4" |
1/2" |
|
YB2-40120 |
3180 |
3030 |
Φ102 |
3/4" |
1/2" |
|
YB2-40160 |
4196 |
4046 |
Φ102 |
3/4" |
1/2" |
3. YB3-RO40 stainless steel membrane housing
1. material:SUS304,SUS316L
2. maximum working pressure:400Psi
3. polishing treatment surface or wire drawing treatment surface
4. opening: side por
Performance parameter of YB3-RO40 stainless steel membrane housing
|
Model |
L(mm) |
L1(mm) |
D(mm) |
A(in) |
B(out) |
|
YB3-4040 |
1176 |
1010 |
Φ102 |
1" |
3/4" |
|
YB3-4080 |
2192 |
2026 |
Φ102 |
1" |
3/4" |
|
YB3-40120 |
3208 |
3042 |
Φ102 |
1 1/4" |
3/4" |
|
YB3-40160 |
4224 |
4058 |
Φ102 |
1 1/2" |
3/4" |
4. YB4-RO40 stainless steel membrane housing
1. material:SUS304,SUS316L
2. maximum working pressure:1000Psi
3. polishing treatment surface or wire drawing treatment surface
Performance parameter of YB4-RO40 stainless steel membrane housing
|
Model |
L(mm) |
C(mm) |
D(mm) |
A(in) |
B(out) |
|
YB5-4021-E |
612 |
Φ19.5 |
Φ102 |
1/2" 3/4" |
1/2" |
|
YB5-4040-E |
1094 |
Φ19.5 |
Φ102 |
1/2" 3/4" |
1/2" |
|
YB5-4080-E |
2110 |
Φ19.5 |
Φ102 |
3/4" |
1/2" |
|
YB5-40120-E |
3126 |
Φ19.5 |
Φ102 |
3/4" |
1/2" |
|
YB5-40160-E |
4142 |
Φ19.5 |
Φ102 |
3/4" |
1/2" |
Hollow fiber UF membrane:
YOUBER is a professional producer and provider of water treatment, we can accoding to the customers' requirements to do different membranes with different materials and different precision.
1.We are a professional manufacturer of UF membrane;
2. We can provide various dimension, different membrane materials like PVC , PES , PVDF etc, various filtration precision, various flow rate and performance personalized UF membrane module;
3. We can provide OEM, ODM service;
4. We also can provide membrane system desgin, installation, commisioning, maintenance service guidance and so on.
Small moveable Sea water desalination machines :
We have desalinator flow rate: 500LPD, 1000LPD, 2000LPD, 3000LPD, 5000LPD, 10000LPD etc....
We also can do different flow rate according to client's requirements.
It can be used in some islands or some areas lacking of fresh water, sailing yachts, shipping boats, fishing boats and so on.
The size is small;
It is movable and convenient;
Easy operation and less maintenance;
It can turn seawater into direct drinking fresh water;
We also have CE certificate for it.
YB-SWRO-500LPD YB-SWRO-1000LPD YB-SWRO-2000LPD
YB-SWRO-5000LPD YB-SWRO-10000LPD
Portable gravity UF water filter for outdoor camping, travelling, emergency drinking, life rescue:
For outdoor camping& hiking& emergency rescue direct drinking water. No electricity, and it can be used repeatedly
It can be used for outdoor camping, hiking, personal straw direct water.
It can turn river water, raining water, lake water and other type of fresh water into drinking water.
Bacteria removing rate is 99.9999%;
It needs no electricity and power, filtration by its gravity.
Very portable and easy to carry, convenient use;
It can be backwashed to recover the flow rate.
More information please do not hesitate to contact us.
