Quick Details
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
50
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LUCKY SOLAR
-
Model Number:
-
JXNP-serial
-
Product name:
-
SOLAR WATER HEATER
-
Pressure:
-
Non-pressurized
-
Inner tank:
-
SUS 304 2B stainless steel
-
Outer tank:
-
Stainless steel or galvanized steel
-
Heating System:
-
solar
-
Usage:
-
Daily hot water
Quick Details
-
Warranty:
-
5 years
-
Application:
-
Outdoor, Hotel, Garage, Commercial, Household
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
50
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LUCKY SOLAR
-
Model Number:
-
JXNP-serial
-
Product name:
-
SOLAR WATER HEATER
-
Pressure:
-
Non-pressurized
-
Inner tank:
-
SUS 304 2B stainless steel
-
Outer tank:
-
Stainless steel or galvanized steel
-
Heating System:
-
solar
-
Usage:
-
Daily hot water
Camping Solar Water Heater of 20 30 40 50 60 70 80 100liters
How it Works:
The design of this type uses the all-glass evacuated solar collector tubes as the heat absorb element. The high vacuum degree of the clearance between the outer and inner tube can reduce the heat emission which caused by convection and conduction to a very low level. All-glass evacuated tube transfers sun energy into heat energy by high absorption rate and low emittance rate of layer films. Depend on the different density between the hot water and the cold water, a cycle created in the tube which hot water ascending and cold water descending status. Keeping natural circulation like this, the water in the tank will be heated.
Material:
1. Inner tank: SUS304-2B stainless steel
2. Outer tank: Color steel
3. Insulation: Polyurethane
4. Frame: Stronger galvanized steel
Characteristics:
1. Beautiful appearance, steady structure, higher grads.
2. Inner and outside water tank shell all are welded by argon arc.
3. The tubes and frame are adjustable, power bearing is average, and can assure the vacuum tubes to use long time.

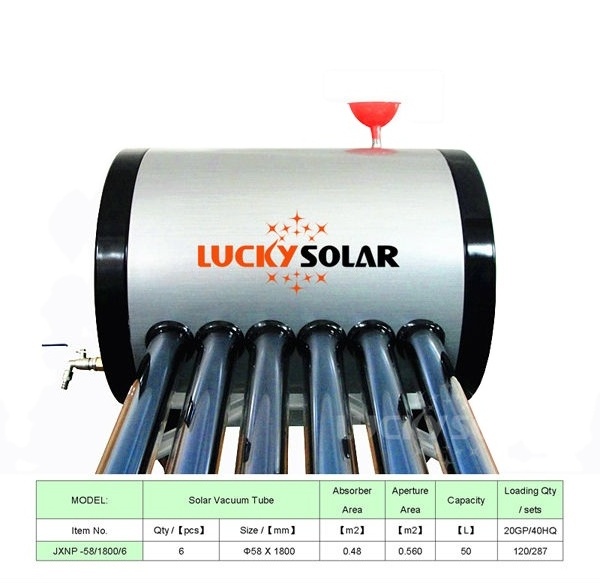

50litres Camping Solar Water Heater System Specification
|
WATER STORAGE TANK SPECIFICATION |
||
|
Material of out tank |
High quality color steel. |
|
|
Material of inner tank |
Food grade SUS304-2B stainless steel |
|
|
Tank insulating layer |
Imported polyurethane,50mm thickness can conserve the heat for maximum 72 hours |
|
|
Tank diameter |
460/360mm |
|
|
Inlet and outlet hole |
Male G 1/2 |
|
|
Tube to tube distance |
8mm |
|
|
Welding: |
Argon arc welding |
|
|
EVACUATED VACUUM TUBES SPECIFICATION |
||
|
Tube structure |
All-glass double deck co-axial structure |
|
|
Glass material |
High borosilicate 3.3 glass |
|
|
Outer tube dia. and glass thickness |
Ø58±0.7mm; Glass thickness 1.6±0.15mm |
|
|
Inner tube dia. and glass thickness |
Ø47±0.7mm; Glass thickness 1.6±0.15mm |
|
|
Tube size |
58*1800mm |
|
|
Absorptive coating property
|
Structure |
Cu/SS-ALN(H)/SS-ALN(L)/ALN |
|
Sediment method |
Three targets magnetron sputtering plating |
|
|
Specific absorption |
0.93-0.96(AM1.5) |
|
|
Emission ratio |
0.04-0.06(800C ± 50C ) |
|
|
Vacuum tightness |
5.0×10¯³ Pa |
|
|
Idle sunning property parameters |
260-300 m².C/KW |
|
|
Average heat loss coefficient |
ULT=0.4~0.6W/(M2.0C) |
|
|
Resistant Hail |
≤25mm |
|
|
Useful life |
15 years |
|
|
BRACKET |
||
|
Bracket: |
High quality aluminum alloy structure |
|
|
Bracket angle: |
25,38,45 degree flat roof |
|
|
Fastening pieces: |
Made of stainless steel.. |
|
