Quick Details
-
Brand Name:
-
Milestone
-
Model Number:
-
S
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
473hp
-
Cable Length:
-
customization
-
Outlet Size:
-
10 inch
-
Power:
-
45kw, Electric
-
Usage:
-
Water
-
Standard or Nonstandard:
-
Standard
-
Theory:
-
Centrifugal Pump
-
Material:
-
HT250, SS304,SS316
-
Pump Type:
-
Horizontal water pump
-
Motor Type:
-
Electric water pump
-
Bearing:
-
Famous brand
-
Driven Type:
-
DC, CL, CRz, ZV
Quick Details
-
Application:
-
Irrigation and Agriculture
-
Pressure:
-
High Pressure
-
Voltage:
-
380v
-
Brand Name:
-
Milestone
-
Model Number:
-
S
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
473hp
-
Cable Length:
-
customization
-
Outlet Size:
-
10 inch
-
Power:
-
45kw, Electric
-
Usage:
-
Water
-
Standard or Nonstandard:
-
Standard
-
Theory:
-
Centrifugal Pump
-
Material:
-
HT250, SS304,SS316
-
Pump Type:
-
Horizontal water pump
-
Motor Type:
-
Electric water pump
-
Bearing:
-
Famous brand
-
Driven Type:
-
DC, CL, CRz, ZV

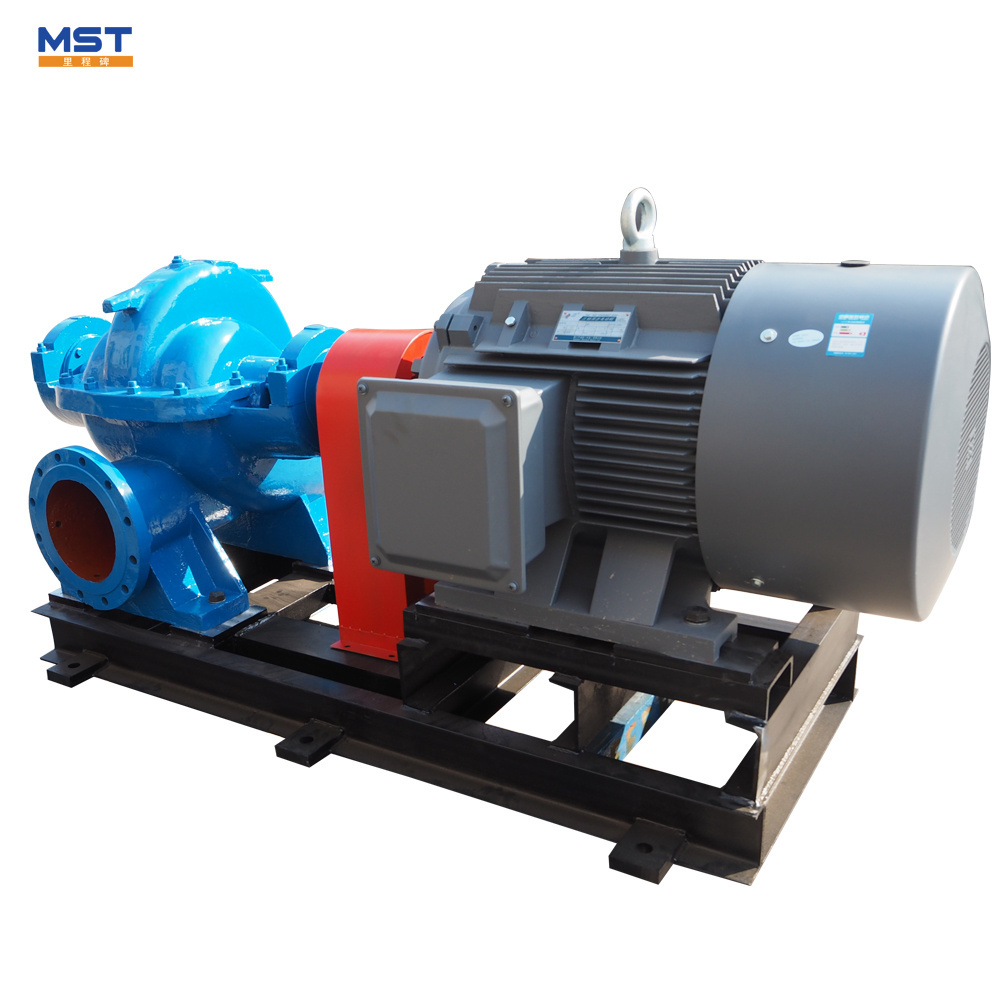

Marine sea water cooling centrifugal pump
General Description:
S type pump is a single-stage double suction horizontal split centrifugal water pump. It is used to
transport pure water and the liquid which physical and chemical nature is similar with water the maximum tempreture isn't more than 80 ℃.
Features:
1.Compact structure,beautiful outline,stable operation,low noise;
2.Both inlet and outlet of this pump are placed under the axial line,so it is unnecessary to remove t he inlet and outlet pipeline and motor
3.The shaft seal of water pump has fine mechanical seal and soft stuffing seal,which can be sele cted according to different condition by user
4.The impeller is static-balance calibrated,fixed on the shaft with round nut,and its axial position an be adjustedvia the round nut
5.The pump is direct drived by motor via resilient coupling,it can be drived by internal combustion engine if it is necessary.
sea water centrifugal pump:
| Item |
110 kw centrifugal pump 85m head split case pump |
| Model | MS |
| Material | Cast iron SS 304,SS 316L, etc |
| Color | Decided by user |
| Mode | Horizontal |
| Impeller | Double suction impeller |
| Drive | Direct coupling |
| Seal | Packing seal or mechanical seal |
| Speed | 2950r/m, 1450r/min, 970r/min,730r/min,585r/min |
| Theory | Centrifugal pump |
| Structure | Single stage pup |
| Usage | Clean water, raw water, sea water etc. |
| Power | Electric motor or Diesel engine |
| Standard | ISO |
| Application | Plant, mine, power station, urban water supply, irrigation etc |
| Outlet diameter | 1 inch to 32 inch |
| Capacity | 25-15000m3/h |
| Head | 8.6-200m |
| Power | 22-1250kw |
| Warranty | 1year |
| Certificate | ISO9001 |
| OEM | Acceptable |
| Feature | High flow rate, high efficiency, easy maintenance |
Horizontal centrifugal electric water pump suitable for water supply and drainage in
factories,mines and cities, power station,drainage and irrigation of farming,and kinds of hydraulic projects.
