Quick Details
-
Production Capacity:
-
no
-
Power:
-
145kw
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
China Kudat
-
Dimension(L*W*H):
-
4020x7290x2770mm
-
Warranty:
-
One year and life long after sale service
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Standard paving width:
-
3400mm
-
Paving speed:
-
0-10m/min
-
Grade ability:
-
At work:≥10%
-
Travel speed:
-
0~1.5km/h
-
Engine model:
-
Volvo TAD620VE
-
Rating rotate speed:
-
2300r/min
-
Screw rotate speed:
-
0-34 r/min
-
Electrical system:
-
24V DC
-
Control panel:
-
yes
Quick Details
-
Max. Paving Thickness:
-
350mm
-
Weight:
-
22 kg
-
Engine Brand:
-
V0LV0
-
Production Capacity:
-
no
-
Power:
-
145kw
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
China Kudat
-
Dimension(L*W*H):
-
4020x7290x2770mm
-
Warranty:
-
One year and life long after sale service
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Standard paving width:
-
3400mm
-
Paving speed:
-
0-10m/min
-
Grade ability:
-
At work:≥10%
-
Travel speed:
-
0~1.5km/h
-
Engine model:
-
Volvo TAD620VE
-
Rating rotate speed:
-
2300r/min
-
Screw rotate speed:
-
0-34 r/min
-
Electrical system:
-
24V DC
-
Control panel:
-
yes

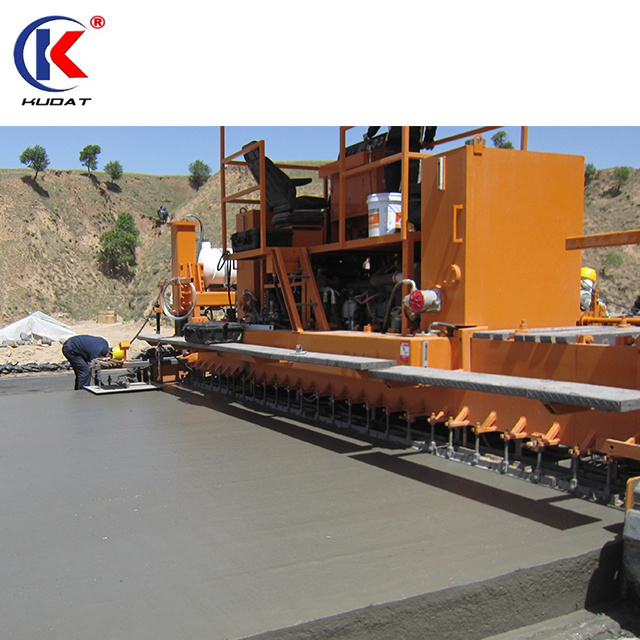

TECHNICAL SPECIFICATIONS HTH3400B SLIPFORM PAVER
The technology of HTH3400B slipform is advanced PAV-SAVER imported from American Pro-Hoff Company, to build high speed railway and highway, using of this paver can greatly improve paving quality and speed, therefore, it is widely used to construct high speed railway,highway, plaza etc.
The paver is full hydraulic slipform, with big power, and the machine travels with two crawlers. The automatic driving and leveling control systems are equipped in this machine. When working, the paver can accomplish paving, scraping, vibrating, tamping, extruding, shaping at one time.
Main parameters
| Basic paving width | 3400 mm |
| Maximum paving width | 6000 mm |
| Maximum paving thickness | 350mm |
| Overall weight | 22T |
| Overall size | 4020mm*7290mm*2770mm |
| Paving speed | 0 ~ 10m/min |
| Travel speed | 0 ~ 1.5km/h |
| Flatness (surveyed by 3 meters ruler) | 3mm/3m |
| Grade ability | At work:≥10% |
| Engine | Volvo |
| Type | 6 cylinders; water-cooling |
| Power | 145kW/2300r/min |
Driving system :
the whole machine is full hydraulic, the engine is connected with transfer and pumps, supplying power for many components as follows :
1 . Crawler traveling devices
2 . Feeding devices
3 . Vibration
4 . Tamper bar
5 . Body lifting and dropping
6 . Water cleaning system and all the executive cylinders
Working devices :
| Crown pan basic width | 3.4-6m |
| Vibrators frequency | 5 ~ 167 Hz |
| Tamper bar rotate speed | 0 ~ 170 r/min |
| Screw rotate speed | 0 ~ 34 r/min |
Main performance characteristics of the HTH3400B SLIPFORM
1 . Original VOLVO water-cooling engine is used to supply driving and reliable powers.
2 . Full hydraulic driven, with CAN communications management bus and distributed control structure, reduce failure rate.
3 . With failure intellective diagnose function, alarm for potential failure.
4 . The screw can be controlled from either side of the paver, so the effect of feeding is perfect
5 . The operator has wide view, easy to observe.
6 . The material of screws and crown pan is wearable and advanced in the world.
7 . Because of the using of automatic leveling, the lengthwise flatness is not exceed 3mm/3m , the transverse grade :2/1000.
8 . Crawlers with life-time lubricated thrust wheels and track shoes wear well and are difficult to skid.
9 . It can accomplish the cement concrete paving at one time, and finish middle piling and side piling.
