Quick Details
-
Range of Spindle Speed(r.p.m):
-
1 - 8000
-
Place of Origin:
-
China
-
Brand Name:
-
SHANDONG HUAWEI
-
Model Number:
-
XK7124
-
Year:
-
2021
-
Voltage:
-
220V/380V/430V
-
Dimension(L*W*H):
-
1900X1620X2000
-
Weight (KG):
-
2350
-
Spindle Motor Power(kW):
-
3.7
-
Max. Table Load(kg):
-
280 kg
-
Marketing Type:
-
New Product 2021
-
Product name:
-

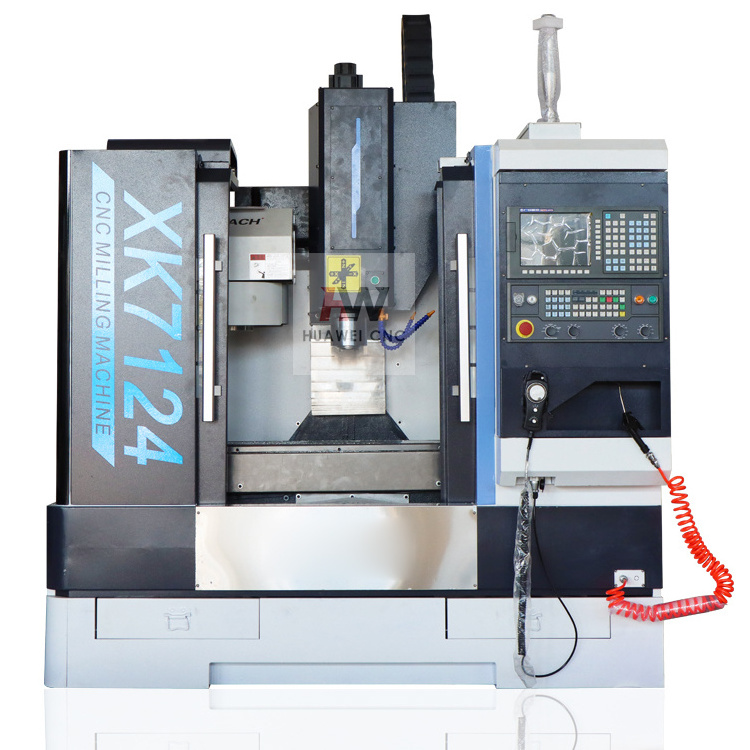

HUAWEI XK7124 CNC MILLING MACHINE
-
Machine Type:
-
small cnc milling machine
-
Guideway:
-
Taiwan Linear Guideways
-
Color:
-
Custom-made
-
Key words:
-
5 axis cnc mill XK7124 small cnc milling machine for Metal
-
Distance From Spindle Nose to Worktable:
-
110-550mm
-
T slot:
-
3-16x75
Quick Details
-
Table Travel (X) (mm):
-
500
-
Table Travel (Y) (mm):
-
320
-
Table Travel (Z) (mm):
-
450
-
Range of Spindle Speed(r.p.m):
-
1 - 8000
-
Place of Origin:
-
China
-
Brand Name:
-
SHANDONG HUAWEI
-
Model Number:
-
XK7124
-
Year:
-
2021
-
Voltage:
-
220V/380V/430V
-
Dimension(L*W*H):
-
1900X1620X2000
-
Weight (KG):
-
2350
-
Spindle Motor Power(kW):
-
3.7
-
Max. Table Load(kg):
-
280 kg
-
Marketing Type:
-
New Product 2021
-
Product name:
-
HUAWEI XK7124 CNC MILLING MACHINE
-
Machine Type:
-
small cnc milling machine
-
Guideway:
-
Taiwan Linear Guideways
-
Color:
-
Custom-made
-
Key words:
-
5 axis cnc mill XK7124 small cnc milling machine for Metal
-
Distance From Spindle Nose to Worktable:
-
110-550mm
-
T slot:
-
3-16x75
Product Description
China hot sell 5 axis cnc mill machining VMC machine center XK7124 small cnc milling machine for Metal
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
Product main technical parameters:
|
The name
|
XK7124
|
|
Table size
|
1000×240mm
|
|
Max.table load
|
300kg
|
|
T slot qty-width*distance
|
3-14x75
|
|
spindle speed
|
8000r p m
|
|
spindle nose to table surface
|
90-470mm
|
|
Spindle center to Column surface
|
360mm
|
|
Spindle taper
|
BT40
|
|
Main motor power
|
2.2/3.7kw (servo)
|
|
X axis travel
|
450mm
|
|
Y axis travel
|
380mm
|
|
Z axis travel
|
400mm
|
|
X/Y/Z axis rapid feed
|
15/15/15m/min
|
|
Positioning accuracy
|
±0.01mm
|
|
Repeatabeility accuracy
|
±0.005mm
|
|
Net Weight
|
2400 kg
|
|
Overall Dimension
|
1900X1620X2000
|
Detailed Images
Related Products
Certificate
Certificate Introduction
Certificate Introduction
Certificate Introduction
FAQ
1.How to send my enquiry? You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype)
. 2 . How can I choose the most suitable machines? Please tell us your requirement of the machine, or you can also send us the
products drawing, our engineer can help to choose the best model for you.
3: What's your main products of your company? A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling
Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine,Radial Drilling Machine ,Sawing Machine ,Shaper machine and
so on .
4: What's the Payment Terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at
sight .
5.Check the acceptance When receiving the goods, please check product carefully: Whether there is packing damage, leakage and
whether the goods are damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine
If there is any problem about machine, please take pictures and contact us immediately.
6.OEM Service We accept purchase orders with customers' brand or trade mark.
. 2 . How can I choose the most suitable machines? Please tell us your requirement of the machine, or you can also send us the
products drawing, our engineer can help to choose the best model for you.
3: What's your main products of your company? A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling
Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine,Radial Drilling Machine ,Sawing Machine ,Shaper machine and
so on .
4: What's the Payment Terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at
sight .
5.Check the acceptance When receiving the goods, please check product carefully: Whether there is packing damage, leakage and
whether the goods are damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine
If there is any problem about machine, please take pictures and contact us immediately.
6.OEM Service We accept purchase orders with customers' brand or trade mark.
