Professional Supply Stainless Steel Bag Filter Vessel For Water Treatment

Professional Supply Stainless Steel Bag Filter Vessel For Water Treatment

Bag filter working principle:

Bag filter is a widely used for liquid filtration,it can remove the particles of different size from liquid,in order to achieve liquid filtration,purification,separation,recovery purposes.It consists of three parts:bag housing,supporting basket and filter bags.According to flow rate,you may use multiple bags in a bag housing.First,the liquid enter into the housing from the inlet,which may placed in the side or on the top,and then flow into the filter bag which is braced by basket.Due to the impact pressure of fluid,the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet pipe.Impurities are trapped in the bag,the filtration process is complete.When you replace or clean the bag,just simply loosen the bolt,rotary hand wheel lifting the lid,and get the bag.

Bag filter vessel Design Advantages:

1, compact structure, reasonable size. Simple to install and operate, convenient, small foot print.

2, high filtration accuracy, for any fine particles or suspended, filtered range from 0.5um.
3, the processing flow of a large area of the filter unit, the filtration resistance is small, a high filtration efficiency.
4, widely used, can be used for coarse filtration, the filter or fine filter; filter to achieve the same effect in the case, when compared with plate and frame filter, cartridge-type filters and other equipment with a lower investment cost, long life and filtration costs low.
5, bag filter-free cleaning, replacement filter bags can be completed within 30 seconds, convenient, time saving time and labor.

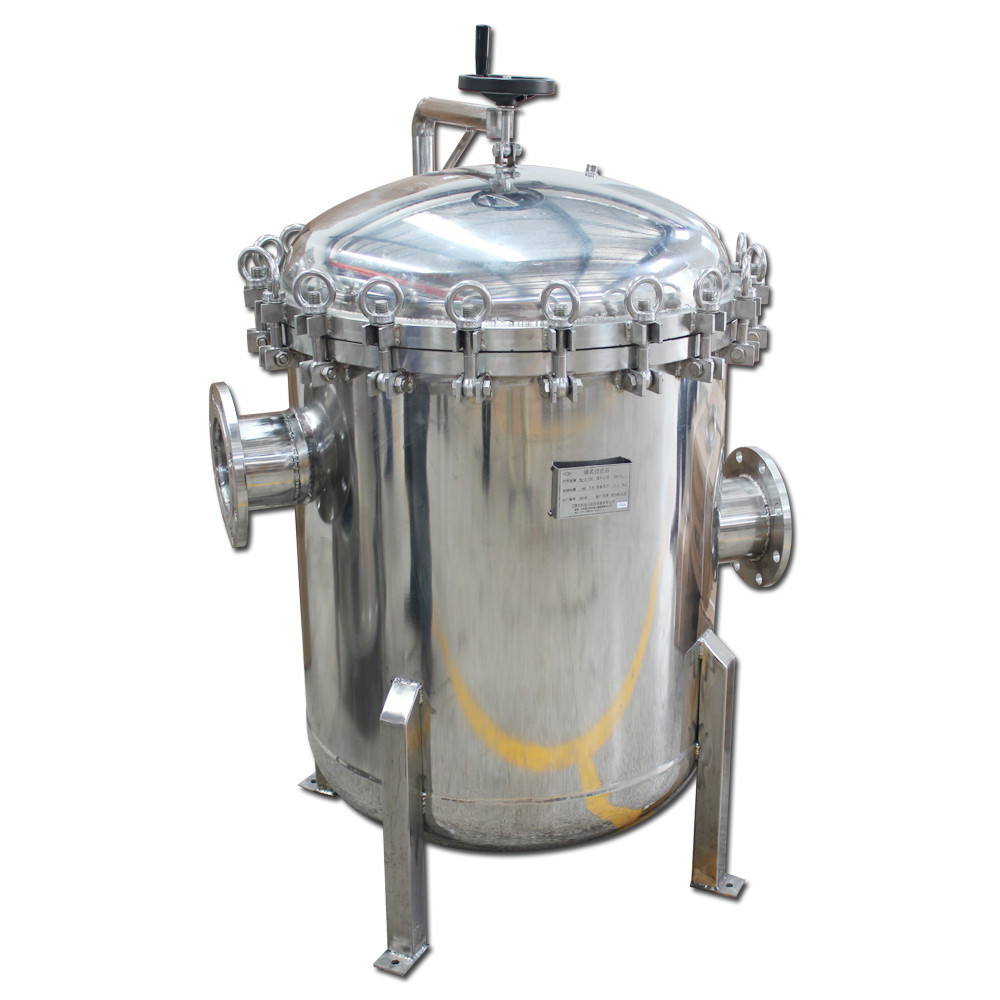

Bag filter vessel Details

To customer Details:

01. What is the capacity (m3/hour)you required for this equipment?
02. What is the material for this bag filter?
Stainless steel (SS304/SS316)?
03. What is the working pressure for it?
04. What is the filtration degree?
10 micron or 200 micron?

Specifications: (The practical dimension could be customized )

Bag filter vessel apply

Food & beverages
Dyes & Intermediates
RO Pre filtration
Pharmaceuticals
Bore Well water
Processing Chemicals
Dairy Petroleum Derivatives
Paints & Inks
Coolants
Water Treatment
