Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
3.2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Dosing
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3200*2140*1950mm
-
Weight (KG):
-
1300
-
product name:
-
cnc 3 axis router controller machine furniture industry
-
Working area:
-
1300mm*2500mm
-
Spindle:
-
3kw air cooling spindle
-
Control system:
-
DSP Control System
-
Application:
-
Wood Working
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Motor:
-
Stepper Motor 450B
-
Machine bed:
-
Welded with thickness steel tube
-
Wire:
-
Original Shanghai Echu wire
-
keyword:
-
cnc router machine furniture industry
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
3.2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Dosing
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
3200*2140*1950mm
-
Weight (KG):
-
1300
-
product name:
-
cnc 3 axis router controller machine furniture industry
-
Working area:
-
1300mm*2500mm
-
Spindle:
-
3kw air cooling spindle
-
Control system:
-
DSP Control System
-
Application:
-
Wood Working
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Motor:
-
Stepper Motor 450B
-
Machine bed:
-
Welded with thickness steel tube
-
Wire:
-
Original Shanghai Echu wire
-
keyword:
-
cnc router machine furniture industry

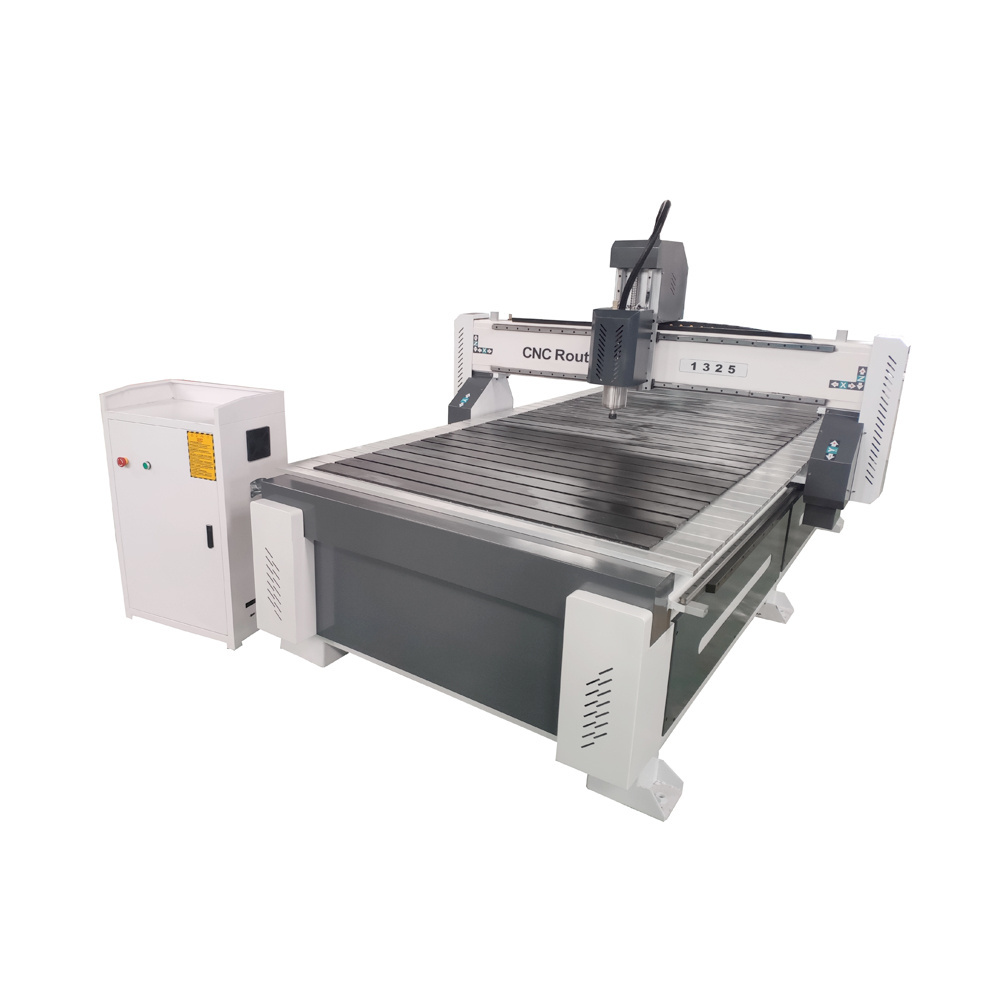

cnc 3 axis router controller machine furniture industry 6kw spindle for cnc router
Introduction for cnc router
This machine is basic model. It is suitable for furniture industry.
1. T-slot table can fix materials of different sizes effectively.Vacuum table is for option.
2. Taiwan TBI balls screws, HIWIN square guide rails, high precision, large load
bearing and stable running.
3. Gantry-traveling, stronger, reliable and stable, non-deforming, high locating accuracy.
4. Y axis use servo/stepper motor drive, select matching to ensure smooth movement.
5. DSP control system, with U disk available and not need computer ( can be completely off-line operation. ), provides high independence and great convenience for operation. Also have MARCH3 NC-Studio for your choice which is control by computer.
CNC ROUTER
|
Technical parameter for CNC router |
||
|
NO |
Description |
Parameter |
|
1 |
Working area |
1300*2500*200mm |
|
2 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
|
3 |
X,Y,Z Re-positioning Accuracy: |
±0.03mm/300mm |
|
4 |
Max. Rapid Travel Rate |
25 000mm/min |
|
5 |
Max. Working Speed |
15 000mm/min |
|
6 |
Spindle Speed |
0-24000RPM |
|
7 |
Command Language |
G Code |
|
8 |
Spindle |
3kw |
|
9 |
Control system |
Ncstudio |
1.Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2.The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
3.Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4.Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
FAQ
1. I want to buy a cnc router,what suggestion can you give?
For small size,we have 300*400mm, 400*400mm, 600*900mm; for bigger size,we have 1200*1200mm, 1200*2400mm, 1300*2500mm and so on. Customization is also ok.
2. If machine have any problem after I receive it, how can I do ?
Free parts will be sent to you within warranty time, and there is technical
support from our professional engineer. Our after-sales staff can come to your workshop if the problem still can not be fixed.
3 .Could you help me to arrange the shipment?
Of cause, we can offer our client FOB,CFR or CIF price,even EXW price. If
possible we can help to arrange the shipment
