Quick Details
-
Power:
-
2.2KW
-
Min. Lifting Height:
-
205mm, Customized
-
Table Size:
-
customized
-
Overall Dimensions:
-
customized
-
Weight:
-
1600 kg
-
Product name:
-
Platform Lift
-
Voltage:
-
220/380V 50/60hz
-
Color:
-
Customers' Requirements
-
Application:
-
Lifting
-
Feature:
-
Easy Operation Safety Convenience
-
Control:
-
Control Box
-
Platform:
-
Anti-skid Checkered Plate
-
Lifting speed:
-
4-6m/min
-
Install:
-
In pit or on ground
-
Working Condition:
-
Indoor Outdoor
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PLK LIFT
-
Power:
-
2.2KW
-
Min. Lifting Height:
-
205mm, Customized
-
Table Size:
-
customized
-
Overall Dimensions:
-
customized
-
Weight:
-
1600 kg
-
Product name:
-
Platform Lift
-
Voltage:
-
220/380V 50/60hz
-
Color:
-
Customers' Requirements
-
Application:
-
Lifting
-
Feature:
-
Easy Operation Safety Convenience
-
Control:
-
Control Box
-
Platform:
-
Anti-skid Checkered Plate
-
Lifting speed:
-
4-6m/min
-
Install:
-
In pit or on ground
-
Working Condition:
-
Indoor Outdoor

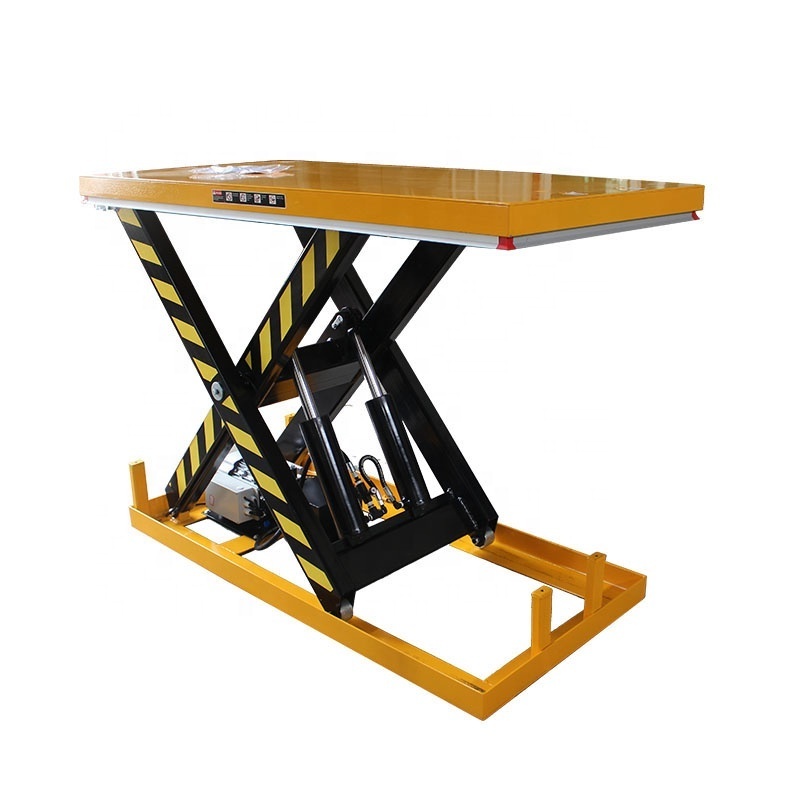

Good Quality Electric Hydraulic Table Lift
Heavy duty scissor lift table is customized for the large goods with heavy load capacity, such as 10 ton, 20 ton even to 100 ton.
|
Model |
Load Capacity (KG) |
Self Height (MM) |
Max Platform Height(MM) |
Platform Size (MM) |
Lifting time (S) |
Voltage (V) |
Net weight (KG) |
|
HW1001 |
1000 |
205 |
1000 |
1300 × 820 |
20 ~ 25 |
Single scissor 1ph or 3ph |
160 |
|
HW1002 |
1000 |
205 |
1000 |
1600 × 1000 |
20 ~ 25 |
186 |
|
|
HW1003 |
1000 |
240 |
1300 |
1700 × 850 |
30 ~ 35 |
200 |
|
|
HW1004 |
1000 |
240 |
1300 |
1700 × 1000 |
30 ~ 35 |
210 |
|
|
HW1005 |
1000 |
240 |
1300 |
2000 × 850 |
30 ~ 35 |
212 |
|
|
HW1006 |
1000 |
240 |
1300 |
2000 × 1000 |
30 ~ 35 |
223 |
|
|
HW1007 |
1000 |
240 |
1300 |
1700 × 1500 |
30 ~ 35 |
365 |
|
|
HW1008 |
1000 |
240 |
1300 |
2000 × 1700 |
30 ~ 35 |
430 |
|
|
HW2001 |
2000 |
230 |
1000 |
1300 × 850 |
20 ~ 25 |
235 |
|
|
HW2002 |
2000 |
230 |
1050 |
1600 × 1000 |
20 ~ 25 |
268 |
|
|
HW2003 |
2000 |
250 |
1300 |
1700 × 850 |
25 ~ 35 |
289 |
|
|
HW2004 |
2000 |
250 |
1300 |
1700 × 1000 |
25 ~ 35 |
300 |
|
|
HW2005 |
2000 |
250 |
1300 |
2000 × 850 |
25 ~ 35 |
300 |
|
|
HW2006 |
2000 |
250 |
1300 |
2000 × 1000 |
25 ~ 35 |
315 |
|
|
HW2007 |
2000 |
250 |
1400 |
1700 × 1500 |
25 ~ 35 |
415 |
|
|
HW2008 |
2000 |
250 |
1400 |
2000 × 1800 |
25 ~ 35 |
500 |
|
|
HW4001 |
4000 |
240 |
1050 |
1700 × 1200 |
30 ~ 40 |
375 |
|
|
HW4002 |
4000 |
240 |
1050 |
2000 × 1200 |
30 ~ 40 |
405 |
|
|
HW4003 |
4000 |
300 |
1400 |
2000 × 1000 |
35 ~ 40 |
470 |
|
|
HW4004 |
4000 |
300 |
1400 |
2000 × 1200 |
35 ~ 40 |
490 |
|
|
HW4005 |
4000 |
300 |
1400 |
2200 × 1000 |
35 ~ 40 |
480 |
|
|
HW4006 |
4000 |
300 |
1400 |
2200 × 1200 |
35 ~ 40 |
505 |
|
|
HW4007 |
4000 |
350 |
1300 |
1700 × 1500 |
35 ~ 40 |
570 |
|
|
HW4008 |
4000 |
350 |
1300 |
2200 × 1800 |
35 ~ 40 |
655 |
|
|
HD1000 |
1000 |
305 |
1780 |
1300X820 |
35-45 |
Multi scissor 1ph or 3ph |
210 |
|
HD2000 |
2000 |
350 |
1780 |
1300X850 |
35-45 |
295 |
|
|
HD4000 |
4000 |
400 |
2050 |
1700X1200 |
55-65 |
520 |
|
|
HT1000 |
1000 |
470 |
3000 |
1700x1000 |
35-45 |
450 |
|
|
HT2000 |
2000 |
560 |
3000 |
1700x1000 |
50-60 |
750 |
|
|
HF400 |
400 |
600 |
4140 |
1700x1000 |
30-40 |
800 |
|
|
HF800 |
800 |
706 |
4210 |
1700x1000 |
70-80 |
858 |
Features & Advantages :
1. Surface treatment: shot blasting and s toving varnish with anti-corrosion function.
2. High quality pump station make s scissor lift table lift s and fall very stabl e .
3. Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
4. Removable lifting eye to help lift the table and install.
5. Heavy duty cylinders with drainage system and check valve to stop the lift table dropping in case of hose burst.
6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
7. Equipped with aluminum safety sensor under the platform for anti-pinch while dropping.
8. Up to American standard ANSI/ASME and Europe standard EN1570
9. Safe clearance between scissor to prevent damages during operation.
10. Brief structure make it much easier to operate and maintain.
11. Stop at the per-concerted and accurate location point.
All our products are CE certificated, good quality and competitive price. Welcome to send the inquiry to us if you are interested in any of them, and we will reply you ASAP.
