Quick Details
-
Model Number:
-
LITH-Metal Foam
-
Shape:
-
Sheet
-
Material:
-
Metal
-
Chemical Composition:
-
Customized
Quick Details
-
Application:
-
Industrial
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Lith
-
Model Number:
-
LITH-Metal Foam
-
Shape:
-
Sheet
-
Material:
-
Metal
-
Chemical Composition:
-
Customized
Customizable Porous Open Cell Metal Foam Copper Nickel Aluminum Titanium Iron foam Cu Ni Al Ti Fe Metal Material Alloy Foam
Quantity Discount is Available: >5pcs, 15% OFF
Quantity Discount is Available: >10pcs, 25% OFF and Free Shipping
Specifications
| Product |
Description |
Dimension ( T* L*W ) |
Copper Foam |
80um-25mm Porosity >98% 110 Pores per Inch (50-130PPI can be customized) Purity ≥99.99% ,Sold in roll or sheet
|
3mm*300mm*200mm 2mm*500mm*500mm 2mm*100mm*100mm 1.6mm*200mm*300mm 1.6mm*100mm*100mm 1.5mm*200mm*300mm 1.0mm*300mm*200mm 1mm*500mm*500mm 0.5mm*100mm*100mm 0.3mm*100mm*100mm 0.2mm*100mm*100mm 0.1mm* 100mm*100mm 80um*100mm*100mm 30um*100mm*100mm The size can be customized |
Nickel Foam |
The aperture : 0.1mm-10mm (5-130ppi)
Porosity : 75-98%
Bulk density : 0.1-0.8g/cm3 |
8mm*300mm*200mm 7mm*300mm*500mm 6mm*300mm*200mm 5mm*300mm*200mm 4mm*300mm*200mm 3mm*300mm*200mm 2mm*300mm*200mm 1.7mm*300mm*200mm 1.6mm*300mm*200mm 1.5mm*300mm*200mm 1.0mm*300mm*200mm 0.5mm*300mm*200mm 0.3mm*300mm*200mm 0.2mm 200mm*300mm The size can be customized |
Aluminum Foam |
Porosity: Customized as request Purity> 98% The aperture 1 mm Through Hole Rate ≥98% Compressive strength3Mpa ~ 17Mpa |
17mm*300mm*200mm 16mm*300mm*500mm 15mm*300mm*200mm 14mm*300mm*200mm 13mm*300mm*200mm 12mm*300mm*200mm 11mm*300mm*200mm 10mm*300mm*200mm 9mm*300mm*200mm 8mm*300mm*200mm 7mm*300mm*200mm 6mm*300mm*200mm 5mm*300mm*200mm 4mm 200mm*300mm The size can be customized |
| Titanium foam |
Temperature resistance : 800 ℃ |
0.6mm*100mm*100mm 0.7 mm* 1 00mm* 1 00mm 1mm*100mm*100mm 1.5mm*100mm*100mm 2mm*100mm*100mm 2.7mm*100mm*100mm The size can be customized |
Iron Nickel Foam |
The aperture : 0.1mm 10mm (5-130ppi) Porosity : 75-98% Through Hole Rate : ≥98% Bulk density : 0.1-0.8g/cm3 |
0.5mm/0.1mm*200mm*300mm 1mm*200mm*300mm 2mm*200mm*300mm 3mm*200mm*300mm 4mm*200mm*300mm The size can be customized |
Silver Foam |
Purity> 99.99% (excellent anti-corrosive) Net weight: 21g Porosity: ≥85% Specific Surface area: ≥10 m^2 /g Tensile Strength: Lengthwise≥1.25N/mm^2; Widthwise≥1.00N/mm^2 |
0.3mm*100mm*100mm 0.5mm*100mm*100mm 0.8mm*100mm*100mm 1mm*100mm*100mm 1.5mm*100mm*100mm 1.7mm*100mm*100mm 0.5mm*300mm*200mm 0.8mm*500mm*500mm The size can be customized |
Graphene Foam |
Carbon content: 99%, no metal support Density: 4 mg/cm 3 Pore Size: 580 microns Packing: in sealed membrane box |
1.2mm*100mm*100mm 1.6mm*200mm*300mm |
| CarbonFoam |
Porosity~31 um Carbon content 99.5% in woven Carbon loading 5mg/cm^2 Web material Woven carbon fiber, coating for hydrophobicity Microporous Layer Nafion & Tef-lon (~50um thick) |
3mm*100mm*100mm 5mm*100mm*100mm 6mm*100mm*100mm 1mm*100mm*100mm 1.6mm*100mm*100mm The size can be customized |

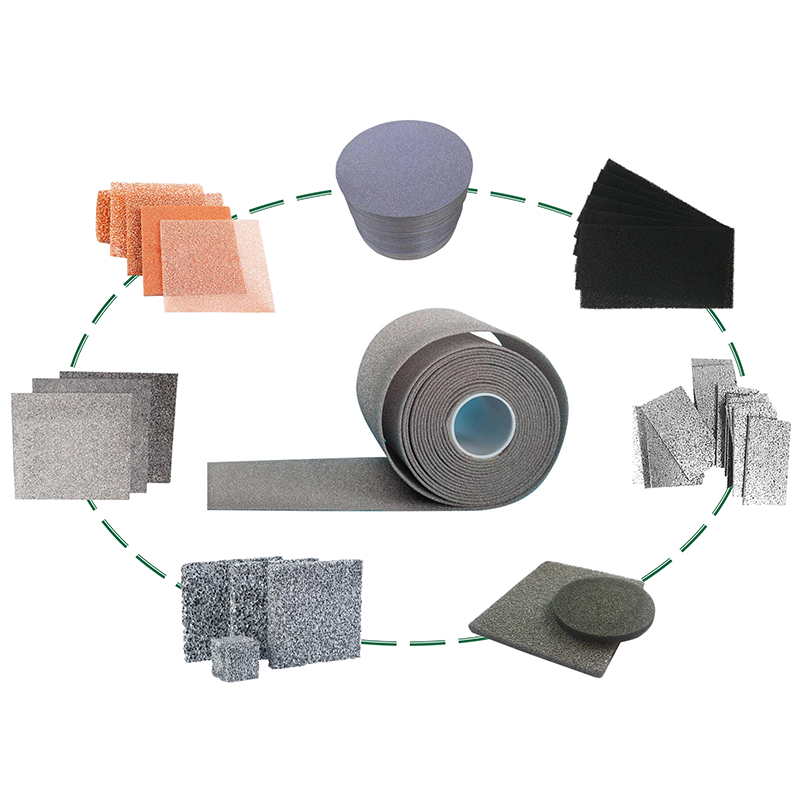

Product Image
