Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
Customer needing
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MVIP
-
Voltage:
-
380 V/220 V
-
Dimension(L*W*H):
-
1800*3000*300 mm
-
Weight (KG):
-
1500
-
Product name:
-
Dual-process 1325 cnc router machine
-
Working area:
-
1300* 2500* 250 mm
-
Working table:
-
Aluminum T-Slot + PVC
-
Cooling system:
-
Water Cooling
-
X, Y Transmission:
-
Helical rack and pinion
-
Z Transmission:
-
Rolling ball screw
-
Motor:
-
Stepper motors
-
Driver:
-
Leadshine drivers
-
Control system:
-
DSP Handle
-
Color:
-
Customers Needing
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
6000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
Customer needing
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MVIP
-
Voltage:
-
380 V/220 V
-
Dimension(L*W*H):
-
1800*3000*300 mm
-
Weight (KG):
-
1500
-
Product name:
-
Dual-process 1325 cnc router machine
-
Working area:
-
1300* 2500* 250 mm
-
Working table:
-
Aluminum T-Slot + PVC
-
Cooling system:
-
Water Cooling
-
X, Y Transmission:
-
Helical rack and pinion
-
Z Transmission:
-
Rolling ball screw
-
Motor:
-
Stepper motors
-
Driver:
-
Leadshine drivers
-
Control system:
-
DSP Handle
-
Color:
-
Customers Needing
Details

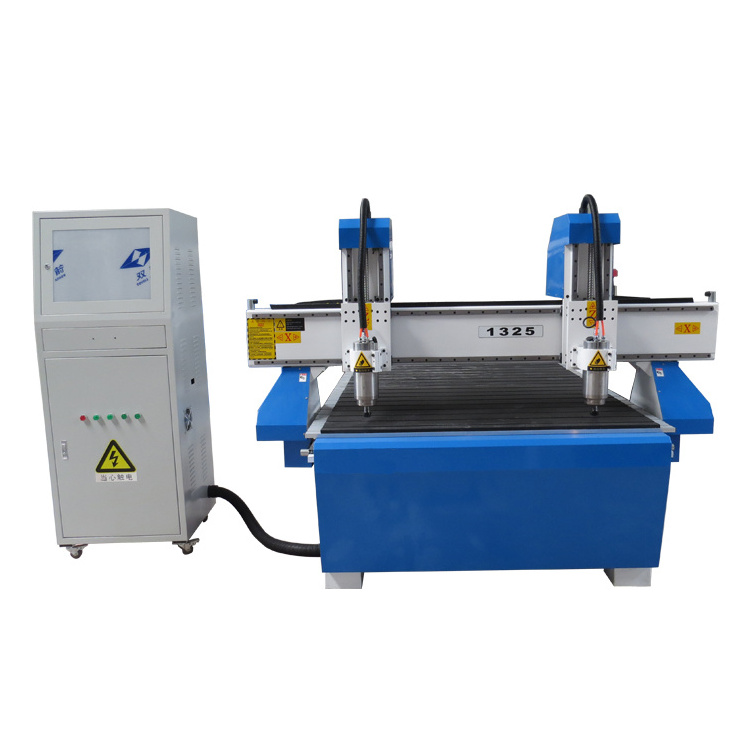

Dual-process 1325 3 axis cnc router machine. Suitable for high efficiency double woodworking processing in manufacturer price.
Applicable for wood PVC Acrylic soft-metal processing design. The two spindles work at the same time, different power of spindles depend on your processing needing. We also provide more different models machinery. Contract us for more details.
Control system
High precision DSP Handle control system. Ensure the accuracy of your processing.
Motor
Stepper motors is less accuracy than servo motors, but they are much more cheaper than servo. And they are enough for normal woodworking.
Guide rail
Square Linear Guide Rail provide more accuracy than round one. Ensure the stability of your work.
Structure
Steel welded frame provide high rigidity and ensure the accuracy during your work.
Working table
Aluminum T-slot working table ensure the long service life and clamp your material.
Spindle
Two spindle can work alone or together, more free and efficiency than normal cnc router.
Samples of the machine
Specification
|
item
|
value
|
|
Condition
|
New
|
|
Range of Spindle Speed(r.p.m)
|
6000rpm - 24000rpm
|
|
Positioning Accuracy (mm)
|
0.02mm
|
|
Number of Axes
|
3
|
|
No. of Spindles
|
Single
|
|
Working Table Size(mm)
|
1300×2500
|
|
Machine Type
|
CNC Router
|
|
Travel (X Axis)(mm)
|
1300mm
|
|
Travel (Y Axis)(mm)
|
2500mm
|
|
Repeatability (X/Y/Z) (mm)
|
0.03mm
|
|
Spindle Motor Power(kW)
|
Customer needing
|
|
CNC or Not
|
CNC
|
|
|
NC Studio, Siemens, Syntec, Mach3, DSP, RichAuto
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Brand Name
|
MVIP
|
|
Voltage
|
380 V/220 V
|
|
Dimension(L*W*H)
|
1800*3000*300 mm
|
|
Weight (KG)
|
1300
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
Competitive Price
|
|
Applicable Industries
|
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Printing Shops, Construction works , Energy & Mining, Other, Advertising Company
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Bearing, Motor, Gear, PLC, Other, Engine, Gearbox
|
|
Product name
|
1325 Woodworking cnc Router Machine
|
|
Working area
|
1300* 2500* 1000 mm
|
|
Working table
|
Aluminum T-Slot with PVC ( vacuum adsorption optional )
|
|
Cooling system
|
Water Cooling
|
|
X, Y Transmission
|
Helical rack and pinion
|
|
Z Transmission
|
Rolling ball screw
|
|
Motor
|
Stepper
|
|
Driver
|
Leadshine drivers
|
|
Control system
|
DSP Handle or optional
|
|
Color
|
Customers Needing
|
Packing & Delivery
1. The machine will be cleaned and brushed with anti-rust oil on guide rail and transmission.2. Adjust the machine and tools cabinet to keep the center of gravity stable.
3. Secure with plastic overcoats and wrap film.
4. Pack into plywood box and secure with packing tape.
5. Packed into containers and shipped to ports.
