Quick Details
-
Usage:
-
Water
-
Power:
-
Electric
-
Theory:
-
Centrifugal Pump
-
Type:
-
Vertical
-
Material of pump body:
-
AISI304
-
Controller:
-
MPPT&DSP technology
-
Fuel:
-
electric
Quick Details
-
Application:
-
Commercial Buildings, Irrigation and Agriculture
-
Pressure:
-
High Pressure
-
Place of Origin:
-
China
-
Usage:
-
Water
-
Power:
-
Electric
-
Theory:
-
Centrifugal Pump
-
Type:
-
Vertical
-
Material of pump body:
-
AISI304
-
Controller:
-
MPPT&DSP technology
-
Fuel:
-
electric
Banner
Products Description

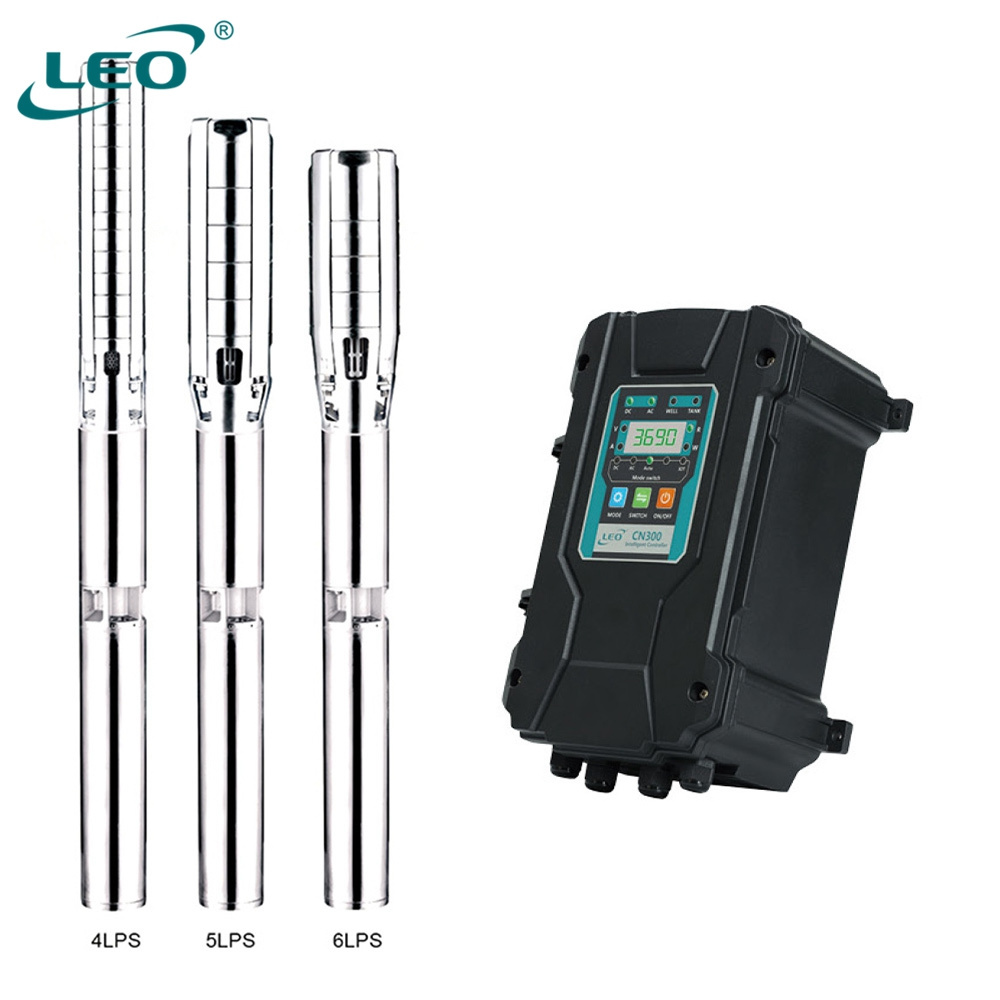

LPS: With Built- in Inverter
Applications
●
Remote areas where grid power supply is non-existent or instable
●
Agriculture irigation, Livestock feeding, Domestic water liting
●
Clear water supply from wells or reservoirs
●
Off grid solar pumping system
Material Features
●
AISI304 Impeller & Diffuser & Pump shaft
●
High precision/ strength graphite bearing
●
100% Pure copper winding
Motor Features
●
Permanent magnet brushless synchronous motor- High Efficiency
●
Double shield structure with water flled - No pollution nisk to drinking water
●
Intelligent inverter built inside (Have MPPT and VFD function)
●
Built-in Inverter easy to replace
Intelligent Inverter
●
MPPT - Maximum Power Point Tracking function - Save solar panel
(Maximizing utilization of power generated by solar panels)”
●
VFD - Variable Frequency Drive function have Max. Speed 6000rpm
●
Can be powered by both AC and DC power supply
●
Suitable for Solar panel, Battery, Grid power supply, Generators
●
Multi-protection function
●
Dry-run protection, Over Current Protection，Phase loss protection,Soft start
Input Voltage
●
AC Voltage Range: 1~Phase, 60~ 300V AC, 50~60Hz
●
DC Voltage Range: 60 ~ 400V
●
Solar Panel Open Circuit Voltage (VOC): 60 ~ 410V (Without CN300)
●
Solar Panel Open Circuit Voltage (VOC): 95 ~ 410V (With CN300)
Input Power Range
●
DC Supply: 0.37 ~ 3kw
●
AC Supply: 0.37 ~ 2.2kw
CN300: LPS Series Intelligent Controller
Applications
●
Designed for LPS series Hybrid AC/DC Solar Pump
Function
●
Auto switch between AC and DC power supply. (Without CN300 have to switched power supply between AC and DC Manually)
●
Mode setting①Only DC mode ②Only AC mode③Auto Mode On Auto Mode:
→If DC power is strong enough, pump only use DC power
→If DC power is not strong enough, pump only use AC power
●
LED screen can show following running status:
On/Off, Input Power & Voltage & Current, Pump Speed(pm)
●
Remarks: CN300 only provided on request.
Features
●
IP55 Protection class
●
2 Float switch available
●
Thickened cast aluminum case
●
GPRS remote control function available on request
●
Large inner wiring space very easy
installation
Wiring Diagram
①With CN300 Controller ② Only AC power supply ③ Only DC Power supply
Product Paramenters
