Quick Details
-
Type:
-
Automatic Transfer Switch
-
Certificates:
-
IEC, CCC, CE
-
Feature:
-
Double complex Contact,Zero Arc,distinct on&off Position indicator
-
Pole:
-
3P,4P
-
voltage:
-
400V
-
Max current:
-
630A
-
Operation type:
-
Auto&Manual, or Manual
-
Quality guarantee:
-
3Years
-
Change over time:
-
Less than 800A 1S/0.5S, 800A~300A1.2S/2.4S
-
COC:
-
China, Automatic change-over switch
-
Certification:
-
CE
-
Max. Current:
-
3200A
-
Max. Voltage:
-
380V
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Xinchi/OEM
-
Model Number:
-
SQ5
-
Type:
-
Automatic Transfer Switch
-
Certificates:
-
IEC, CCC, CE
-
Feature:
-
Double complex Contact,Zero Arc,distinct on&off Position indicator
-
Pole:
-
3P,4P
-
voltage:
-
400V
-
Max current:
-
630A
-
Operation type:
-
Auto&Manual, or Manual
-
Quality guarantee:
-
3Years
-
Change over time:
-
Less than 800A 1S/0.5S, 800A~300A1.2S/2.4S
-
COC:
-
China, Automatic change-over switch
-
Certification:
-
CE
-
Max. Current:
-
3200A
-
Max. Voltage:
-
380V

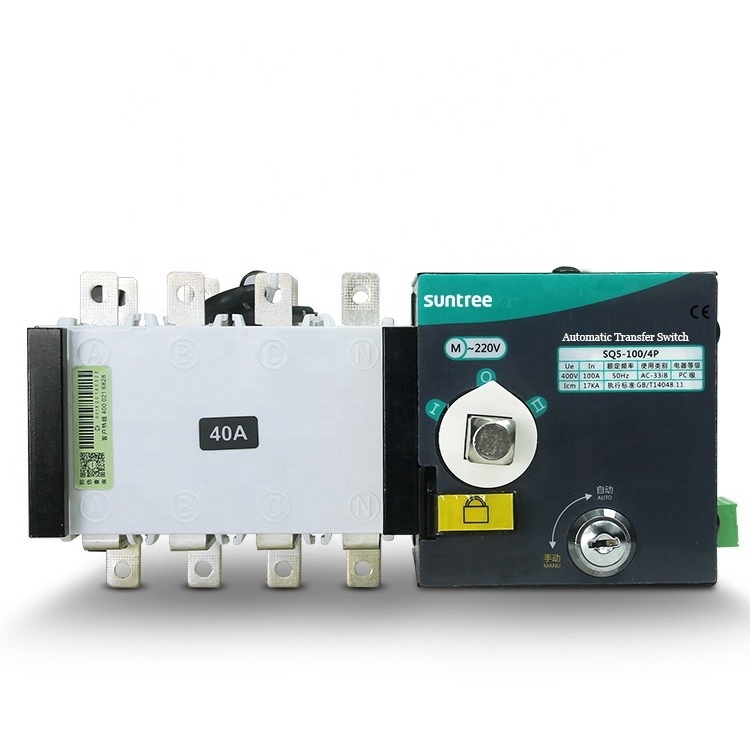

Three Phase 630 Amp 3 Pole ATS Automatic Manual Transfer Switch Changeover Switch for Distribution Power System
SQ5 series Automatic transfer switch mainly used for distribution or electromotor network, which under voltage 380V, rated voltage DC 220V, Rated current 16A-3200A.
Main power and standby power or mutual standby power change over system or city power and generator group overload switch-over. At the same time, it can operated under un-frequency on and off circuit act as disconnector.
Widely used at the field of important power supply site, which transport, distribution power supply system and automatization system. For fire protection,hospital,bank,building,etc, where doesn't allow power off.
|
Conventional thermal current lth A
|
|
|
400-630A
|
|
|||
|
Rated current ln(A)
|
|
|
400A
|
630A
|
|||
|
Rated impulse withstand voltage Ui(A)
|
|
|
500
|
500
|
|||
|
Dielectric strength(V)
|
|
|
8000
|
8000
|
|||
|
Rated surge-resistant voltage Uimp kV(installed category IV)
|
|
|
12
|
12
|
|||
|
|
380A
|
AC-31
|
400
|
630
|
|||
|
|
|
AC-33
|
340
|
536
|
|||
|
|
|
AC-35
|
400
|
630
|
|||
|
|
220A
|
DC-31
|
400
|
630
|
|||
|
|
|
DC-33
|
315
|
500
|
|||
|
|
|
DC-35
|
400
|
500
|
|||
|
Motor power P(380V)kW
|
|
|
220
|
280
|
|||
|
Rated short-time withstand current(kA Rms)0.1S/1S
|
|
|
40/20
|
50/25
|
|||
|
Rated breaking capbility(A Rms)AC33 380V
|
|
|
3200
|
3200
|
|||
|
Rated making capability(A Rms)AC33 380V
|
|
|
4000
|
4000
|
|||
|
Rated short-current making capability lcm(kA peak value)
|
|
|
30
|
30
|
|||
|
Mechanical durability(number of cyclic operation)
|
|
|
5500
|
5500
|
|||
|
Electric durability
|
|
COSφ=0.65 AC33
|
500
|
500
|
|||
|
Change-oner time
|
|
I-0-II or II-0-I (s)
|
1.2
|
1.2
|
|||
|
|
|
I-0 or II-0 (s)
|
0.8
|
0.8
|
|||
|
Power wer consumption of electrical control
|
|
24V(DC)(w)
|
90
|
90
|
|||
|
Moment of operation(Nm)
|
|
|
45
|
45
|
|||
Control Characteristic
27 current grades can be devided into 16A 20A 25A 32A 40A 50A 63A 80A 100A 125A 160A 200A 225A 250A 315A 350A 450A 500A 630A 800A 1000A 1250A 1600A 2000A 2500A 3200A
Basic Type:Main-standby power, self-cast, seif reset.
Type Ⅰ:100A below, city power-city power self-cast, self reset Two way power three phase short phase testing; Above 125A, city power-city power main and standby or mutual power can do selection self-cast two way power three phase checking
Type Ⅱ: City Power-city power main and standby or mutual power supply can do selection(that is self-casting self reset or self-casting without self reset), two way power three phase and lack phase, overload voltage checking
Type Ⅲ: city power-oil machine, self casting self reset, two way power supply three phase and
lack phase, overload voltage, oil machine frequency testing.
