Quick Details
-
Dimension(L*W*H):
-
3350x1300x1400mm
-
Weight:
-
700 KG
-
English user manual:
-
Yes
-
Delivery Time:
-
Within 10 days after the paid deposit
-
Certification of Origin:
-
Yes
-
is_customized:
-
Yes
-
Color:
-
As client required
-
Working video:
-
Yes, supplied
-
Product name:
-
Hay bales
-
Name:
-
hay baler
-
Usage:
-
Agricultural Machinery Farm Machinery
-
warranty period:
-
12 months
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
VIC
-
Application:
-
Hay baling
-
Dimension(L*W*H):
-
3350x1300x1400mm
-
Weight:
-
700 KG
-
English user manual:
-
Yes
-
Delivery Time:
-
Within 10 days after the paid deposit
-
Certification of Origin:
-
Yes
-
is_customized:
-
Yes
-
Color:
-
As client required
-
Working video:
-
Yes, supplied
-
Product name:
-
Hay bales
-
Name:
-
hay baler
-
Usage:
-
Agricultural Machinery Farm Machinery
-
warranty period:
-
12 months
-
Certification:
-
CE ISO

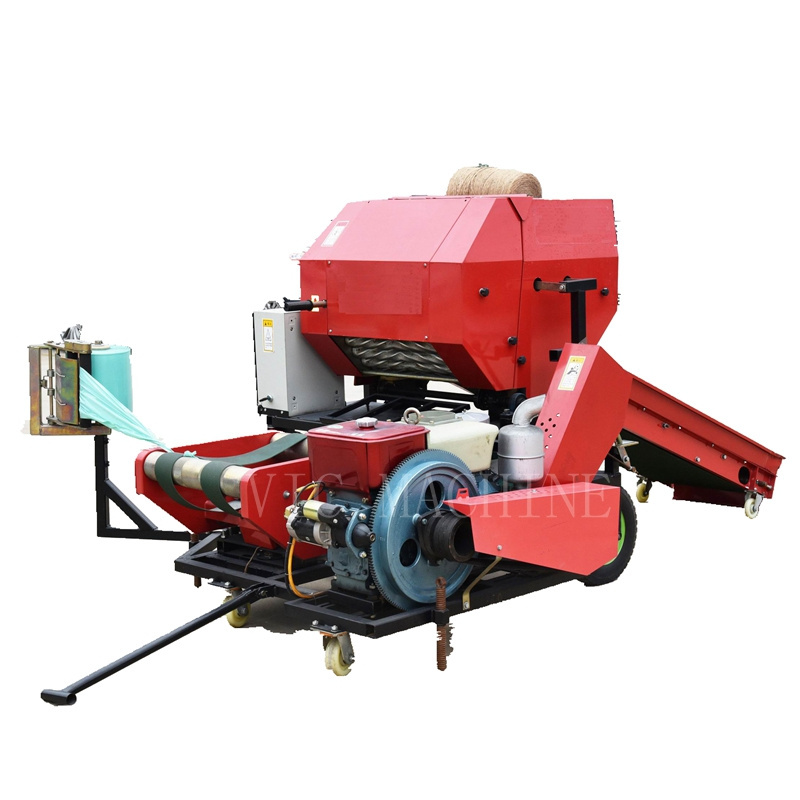

This full automatic baling and film warping machine can be operated by only 1-2 people.
The feeding method is simple and fast.
1.When the bale is adjusted to a certain density, the machine will automatically sound, the conveyor stops, and the hemp rope is baling and cutting.
2.Open the warehouse and roll into the film warping machine, the filming warping machine begin to work, the film will be automatically unloaded after finish warping, the film will be cut and go into next roll working.
Advantage
1.WIth the own conveyor , When the loading is full, the alarm will sound and the loading will stop automatically and the baling will start automatically
2. After the bundling is completed, the pneumatic system pushes it out to the packaging bucket
3. The packaging bucket is automatically rotated to complete the packaging and pour out the finished product
Main date
|
Model |
BW-5552E |
|
Processing capacity |
35-60 seconds/bale, 4-6Ton/H |
|
Power |
Diesel engine type: 18HP |
|
Rated speed |
350rpm |
|
Bale weight |
15-85kgs/bale |
|
Bale size |
550x520mm |
|
Warping efficiency |
8s/l layer |
|
Warping layers |
2-8 layers |
|
Machine overall size |
3350x1300x1400mm |
|
Packing size |
2.2x1.5x1.6m – electric motor type |
|
2.1x1.8x1.55m – diesel engine type |
|
|
Machine weight |
700kgs |
Latest version type: external bearing, hemp rope and net rope baler dual purpose , auto warping and auto film cutting.
Traditional version type: built-in bearing, hemp rope baler, auto warping and manually film cutting.
Net rope baling
Hemp rope baling
External bearing: easy to maintain
hay baler with diesel engine driven
Workshop corner
Production lines and applications
Packaging : In wooden Box
Shipping : By sea.
Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week
.
