Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
PS16B-PNO-E
-
Product type:
-
Waterproof Piezo Switch
-
Mounting hole diameter:
-
16mm
-
Head Shape:
-
Flat
-
Switch combination:
-
1NO
-
Operation type:
-
Momentary Latching
-
Terminal type:
-
Wire Lead
-
Material:
-
Stainless steel/Aluminum Anodized
-
Led color:
-
Red Blue Green White Purple Yellow red+green red+ green+ blue
-
Led voltage:
-
3 5 6 12 24V
Quick Details
-
Protection Level:
-
IP68
-
Max. Current:
-
2A
-
Max. Voltage:
-
24V AC
-
Place of Origin:
-
China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
PS16B-PNO-E
-
Product type:
-
Waterproof Piezo Switch
-
Mounting hole diameter:
-
16mm
-
Head Shape:
-
Flat
-
Switch combination:
-
1NO
-
Operation type:
-
Momentary Latching
-
Terminal type:
-
Wire Lead
-
Material:
-
Stainless steel/Aluminum Anodized
-
Led color:
-
Red Blue Green White Purple Yellow red+green red+ green+ blue
-
Led voltage:
-
3 5 6 12 24V
Products Description

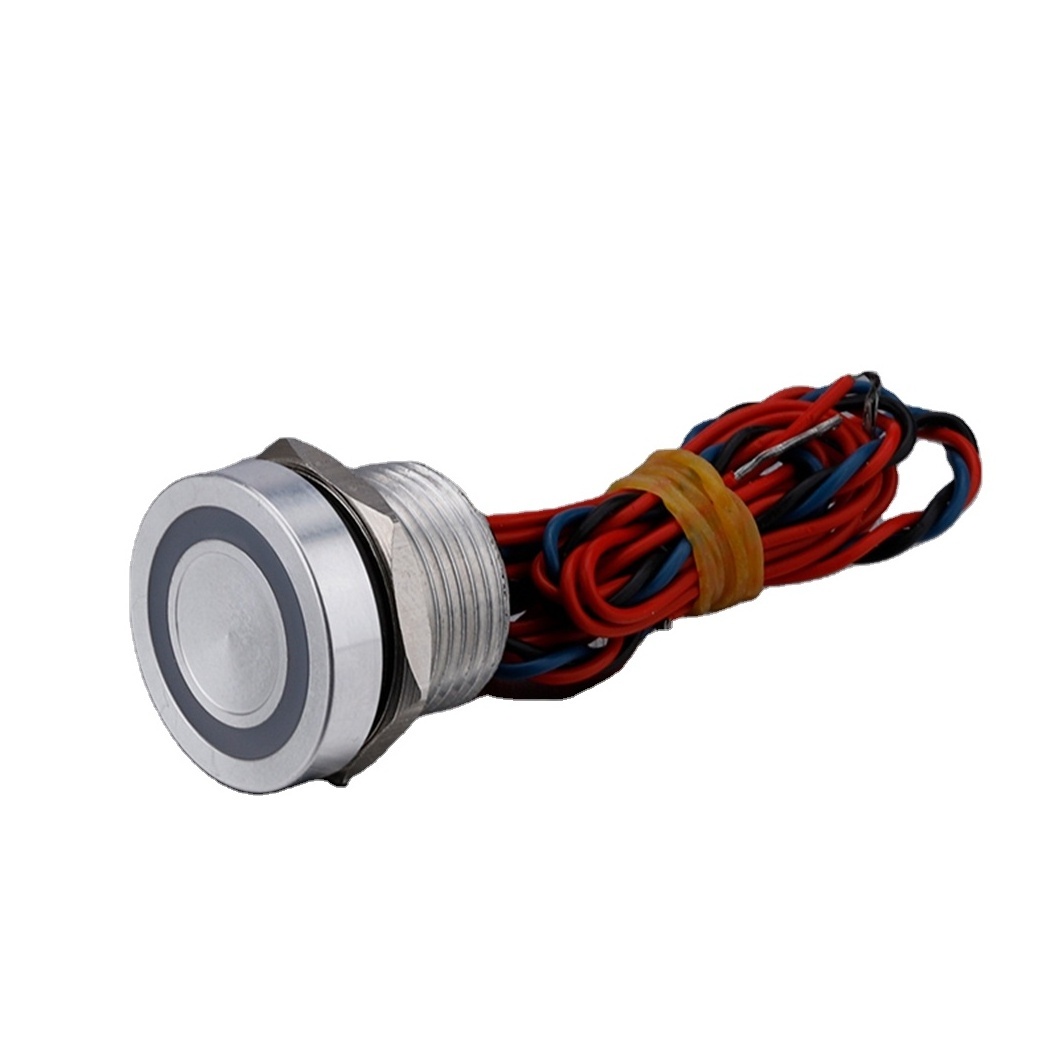

Zero-travel Silent Waterproof IP68 Metal Piezo Switch Momentary Latching LED illuminated replace micro travel push button switch
We have anti-vandal p
ush-button switch with19mm.
WATERPROOF MARINE SWITCH:
This push button switch can be used in a wet environment, no worry about rain or water anymore, which can be used outdoor and rainy day.
WIDE APPLICATION：
This 12V/24V push button switch is suitable for motorized vehicles of motor starting, power starting devices, and can also be an access control button.
What is Momentary(reset) function?
When you push switch and then move your finger, the actuator will back to the original position
What is Latching(Self-locking) function?
When you press the button, it will be ON and keeps locked until you press again, it will return to original position
Product Paramenters
|
Model Specification
|
|
|
|
Model NO.
|
Piezo Switch
|
|
|
Mounting diameter
|
16mm
|
|
|
Head shape
|
Flat
|
|
|
Switch Combination
|
1NO
|
|
|
Operation type
|
Momentary Latching
|
|
|
Rated Current
|
2A 24VAC
|
|
|
Illuminating type
|
illuminated LED
|
|
|
Illuminating color
|
Red Blue Green White Purple Yellow red+green red+ green+ blue
|
|
|
Lamp voltage
|
3-24v
|
|
|
Shell material
|
Stainless steel/Aluminum Anodized
|
|
|
Contact Resistance
|
50mΩ max
|
|
|
Insulation Resistance
|
2000VAC
|
|
|
Dielectric Intensity
|
2000VAC
|
|
|
Accessories
|
Nut, Rubber Waterproof O-ring
|
|
