Quick Details
-
Place of Origin:
-
ZHE
-
Brand Name:
-
YUESHUN
-
Model Number:
-
WD
-
IP level:
-
IP67
-
Switch Combination:
-
/
-
Material:
-
Stainless Steel
-
Mounting hole diameter:
-
16mm-40mm
-
Terminal Type:
-
Sealing glue filling connection
-
Product name:
-
Micro Light Switch
-
Function:
-
Momentary
-
Mechanical Life:
-
More Than 100,0000 times
-
Feature:
-
seal push button switch
-
Emitting Type:
-
Ring power
-
Head shape:
-
Flat Head
-
Style:
-
Simple
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
500mA
-
Max. Voltage:
-
24V AC/DC
-
Place of Origin:
-
ZHE
-
Brand Name:
-
YUESHUN
-
Model Number:
-
WD
-
IP level:
-
IP67
-
Switch Combination:
-
/
-
Material:
-
Stainless Steel
-
Mounting hole diameter:
-
16mm-40mm
-
Terminal Type:
-
Sealing glue filling connection
-
Product name:
-
Micro Light Switch
-
Function:
-
Momentary
-
Mechanical Life:
-
More Than 100,0000 times
-
Feature:
-
seal push button switch
-
Emitting Type:
-
Ring power
-
Head shape:
-
Flat Head
-
Style:
-
Simple
Product Description:
1.
This product is customized from our WD S
eries
；
2. The end of the button is gel type, which acts as a seal .
2. The end of the button is gel type, which acts as a seal .
3. The specification, size, color of the wire and the terminal can be customized
If you need anything, please contact us
If you need anything, please contact us
Product Display

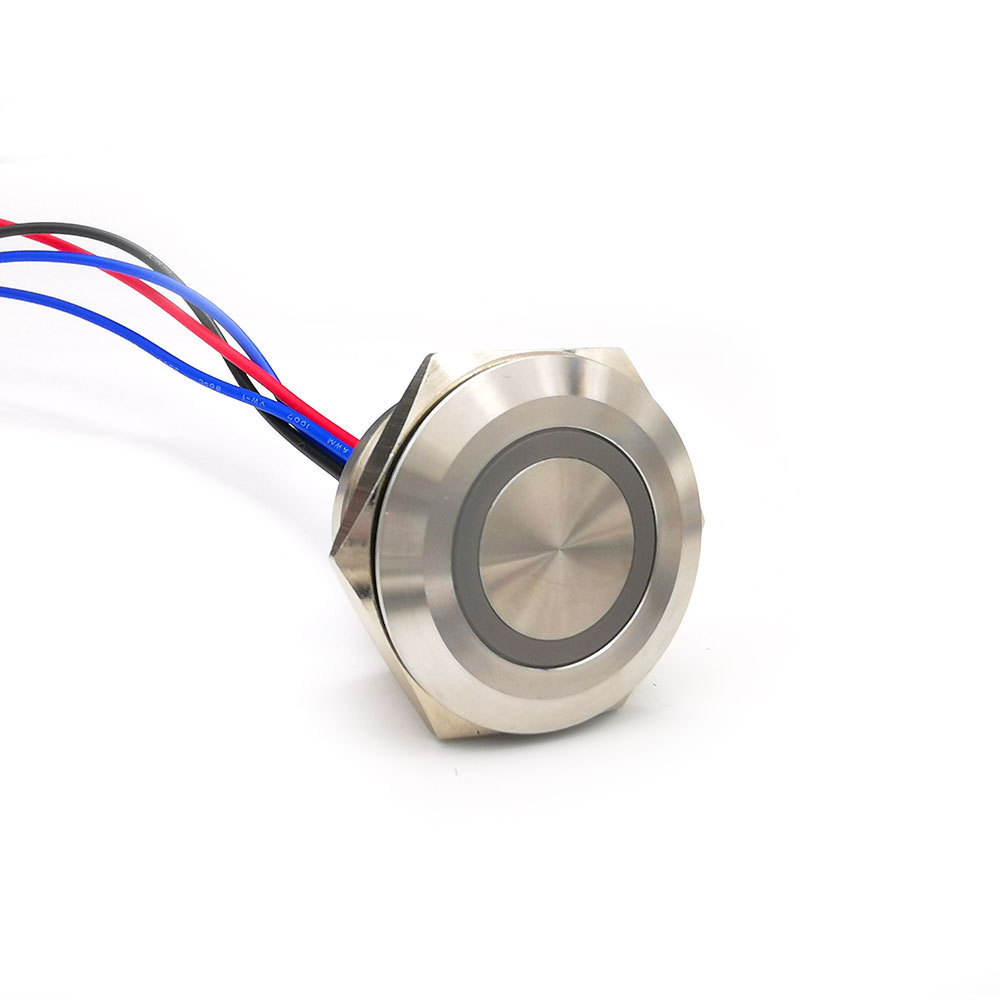

19mm metal illumin momentari seal push button switch
★All our products have passed the CE, CCC, ROHS etc. certifications
★Our push buttons use 95% silver contacts,with good contact performance.
★Our products are of exquisite workmanship,push button's terminal pins are firm in the plastic,integrating with it.
★Our Metal push button switch's Mechanical Life more than 100,0000 times,with long service life.
★It is a Good quality push button, its push feeling is very good.
★Our push buttons are made of anti-damage metal, not easy to fade, excellent performance, IP67 protection level.
★It is waterproof, dustproof and destruction-proof. It can be used in outdoor harsh environment.
Product Paramenters
|
Model Number
|
WD series
|
|
Brand Name
|
YUESHUN
|
|
Mounting Hole Size
|
22mm
|
|
Max Switch Rating
|
500mA / 24V DC
|
|
Contact Configuration
|
1NO
|
|
Operation Type
|
Momentary
|
|
Head Shape
|
Flat Head
|
|
Terminal Type
|
Gel (silica gel )type,Customizable
|
|
LED Type
|
Ring LED Type
|
|
LED Color
|
Default Green(Or Red / Blue / Yellow / Black / White / Orange / Purple available.)
|
|
LED Voltage
|
Default 12V (or 3V / 6V/ 24V available.）
|
|
Body Material
|
Stainless Steel
|
|
Button Material
|
Stainless Steel
|
|
Base Material
|
PBT
|
|
Contact Material
|
Cross Spring Plate
|
|
IP Degree
|
IP67
|
|
Contact Resistance
|
≤ 50mΩ
|
|
Insulation Resistance
|
≥ 10000mΩ
|
|
Dielectric Strength
|
2000VAC
|
|
Operation Temperature
|
-20℃～+55℃
|
|
Mechanica Life
|
More than 1000,000 cycles
|
|
Electrical Life
|
More than 500,000 cycles
|
|
Panel Thickness
|
0.5-3mm
|
|
Torque
|
5-14Nm
|
|
Operating Pressure
|
About 3N
|
|
Operating Distance
|
About 0.3mm
|
Wire Connection Reference
