Quick Details
-
Warranty:
-
30 years
-
Brand Name:
-
Eric
-
Model Number:
-
SU-20W
-
Place of Origin:
-
Shandong, China
-

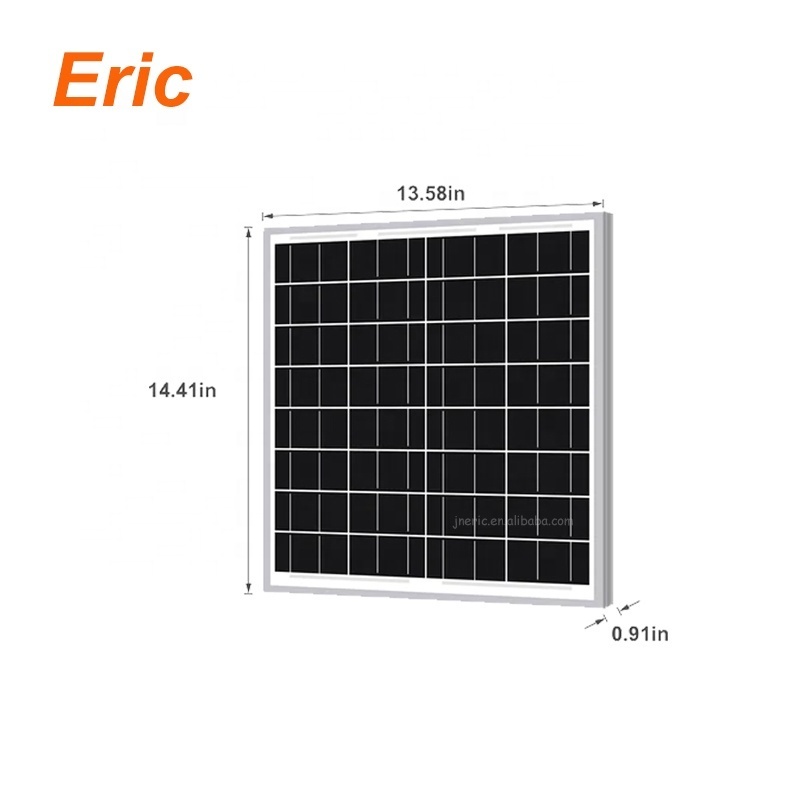

Panel Dimensions:
-
350*366*23mm
-
Product name:
-
20w small size solar power panels
-
Certificate:
-
TUV/CE
-
Solar cell:
-
A-grade
-
Junction Box:
-
IP65 Rated
-
Frame:
-
Aluminum Alloy
-
Keyword:
-
20w pv panels solar panels
-
Color:
-
Dark blue/Balck
-
Output cable:
-
TUV1*4.0mm2
-
Application:
-
Solar Power System
-
Glass:
-
3.2mm High Transmission Tempered Glass
Quick Details
-
Cell size:
-
156*156mm
-
Type:
-
MWT, IBC
-
Panel Efficiency:
-
17.12%
-
Warranty:
-
30 years
-
Brand Name:
-
Eric
-
Model Number:
-
SU-20W
-
Place of Origin:
-
Shandong, China
-
Panel Dimensions:
-
350*366*23mm
-
Product name:
-
20w small size solar power panels
-
Certificate:
-
TUV/CE
-
Solar cell:
-
A-grade
-
Junction Box:
-
IP65 Rated
-
Frame:
-
Aluminum Alloy
-
Keyword:
-
20w pv panels solar panels
-
Color:
-
Dark blue/Balck
-
Output cable:
-
TUV1*4.0mm2
-
Application:
-
Solar Power System
-
Glass:
-
3.2mm High Transmission Tempered Glass
Products Description
|
Max Power (Pmax)
|
Dimensions (mm)
|
Cell Type (mm)
|
Maximum Power Voltage (Vmp)
|
Maximum Power Curremt (Imp)
|
Open Circuit Voltage (Voc)
|
Short Circuit Current (Isc)
|
Weight
|
|
5W
|
230x185x17
|
158.75
|
18.6V
|
0.27A
|
22.6V
|
0.29A
|
0.4KG
|
|
10W
|
230x345x17
|
158.75
|
18.6V
|
0.54A
|
22.6V
|
0.58A
|
0.8KG
|
|
20W
|
345x345x25
|
158.75
|
19.6V
|
1.02A
|
23.6V
|
1.10A
|
1.3KG
|
|
30W
|
550x345x25
|
158.75
|
19.0V
|
1.58A
|
23.0V
|
1.71A
|
2.0KG
|
|
40W
|
640x365x25
|
166
|
19.0V
|
2.11A
|
22.4V
|
2.28A
|
2.5KG
|
|
50W
|
780x365x25
|
166
|
19.0V
|
2.63A
|
22.4V
|
2.85A
|
3.0KG
|
|
80W
|
795x535x30
|
166
|
18.6V
|
4.30A
|
22.0V
|
4.67A
|
4.3KG
|
|
100W
|
975x535x30
|
166
|
18.6V
|
5.38A
|
22.0V
|
5.84A
|
5.84KG
|
|
150W
|
1435x535x30
|
166
|
18.6V
|
8.07A
|
22.0V
|
8.76A
|
8.76KG
|
|
200W
|
1490x700x35
|
166
|
38.0V
|
5.27A
|
44.8V
|
5.72A
|
5.72KG
|
|
40W
|
600x400x25
|
182
|
18.7V
|
2.14A
|
22.2V
|
2.32A
|
2.5KG
|
|
50W
|
740x400x25
|
182
|
18.7V
|
2.68A
|
22.2V
|
2.90A
|
3.1KG
|
|
60W
|
565x580x30
|
182
|
18.6V
|
3.23A
|
22.0V
|
3.45A
|
3.3KG
|
|
70W
|
660x580x30
|
182
|
18.5V
|
3.79A
|
21.8V
|
4.07A
|
3.9KG
|
|
80W
|
750x580x30
|
182
|
18.5V
|
4.33A
|
21.8V
|
4.65A
|
4.4KG
|
|
100W
|
925x580x30
|
182
|
18.5V
|
5.41A
|
21.8V
|
5.82A
|
5.5KG
|
|
120W
|
1070x580x30
|
182
|
18.6V
|
6.46A
|
22.0V
|
6.90A
|
6.3KG
|
|
150W
|
1070x765x30
|
182
|
18.7V
|
8.03A
|
22.2V
|
8.71A
|
8.3KG
|
|
180W
|
1270x765x35
|
182
|
18.7V
|
9.63A
|
22.2V
|
10.46A
|
10.9KG
|
|
200W
|
1405x765x35
|
182
|
37.4V
|
5.35A
|
44.4V
|
5.81A
|
12.0KG
|
|
220W
|
1510x765x35
|
182
|
38.1V
|
5.78A
|
44.9V
|
6.22A
|
12.7KG
|
|
250W
|
1625x765x35
|
182
|
38.8V
|
6.45A
|
45.6V
|
6.88A
|
13.9KG
|
|
300W
|
1750x880x35
|
210
|
38.1V
|
7.88A
|
44.9V
|
8.48A
|
17.2KG
|
|
320W
|
1870x880x35
|
210
|
38.1V
|
8.40A
|
44.9V
|
9.05A
|
18.4KG
|
|
340W
|
1975x880x35
|
210
|
40.3V
|
8.44A
|
47.5V
|
9.09A
|
19.5KG
|
