Quick Details
-
Weight:
-
5200 kg
-
Dimension(L*W*H):
-
6750*2350*2450mm
-
Power:
-
78kw
-
Engine Capacity:
-
NATIONAL 2
-
Name:
-
concrete mixer Truck for Sale
-
Driving type:
-
4WD
-
Brand:
-
MAXTONE
-
Engine:
-
YUCHAI
-
Color:
-
Customized
-
Drum capacity:
-
3.2m3
-
Transmission:
-
4/4
-
Power type:
-
Diesel Engine Concrete Mixer
-
Rotation speed of drum:
-
15-20RPM
-
Drum lifting time:
-
3.5s
Quick Details
-
Marketing Type:
-
NEW Product
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MAXTONE
-
Weight:
-
5200 kg
-
Dimension(L*W*H):
-
6750*2350*2450mm
-
Power:
-
78kw
-
Engine Capacity:
-
NATIONAL 2
-
Name:
-
concrete mixer Truck for Sale
-
Driving type:
-
4WD
-
Brand:
-
MAXTONE
-
Engine:
-
YUCHAI
-
Color:
-
Customized
-
Drum capacity:
-
3.2m3
-
Transmission:
-
4/4
-
Power type:
-
Diesel Engine Concrete Mixer
-
Rotation speed of drum:
-
15-20RPM
-
Drum lifting time:
-
3.5s

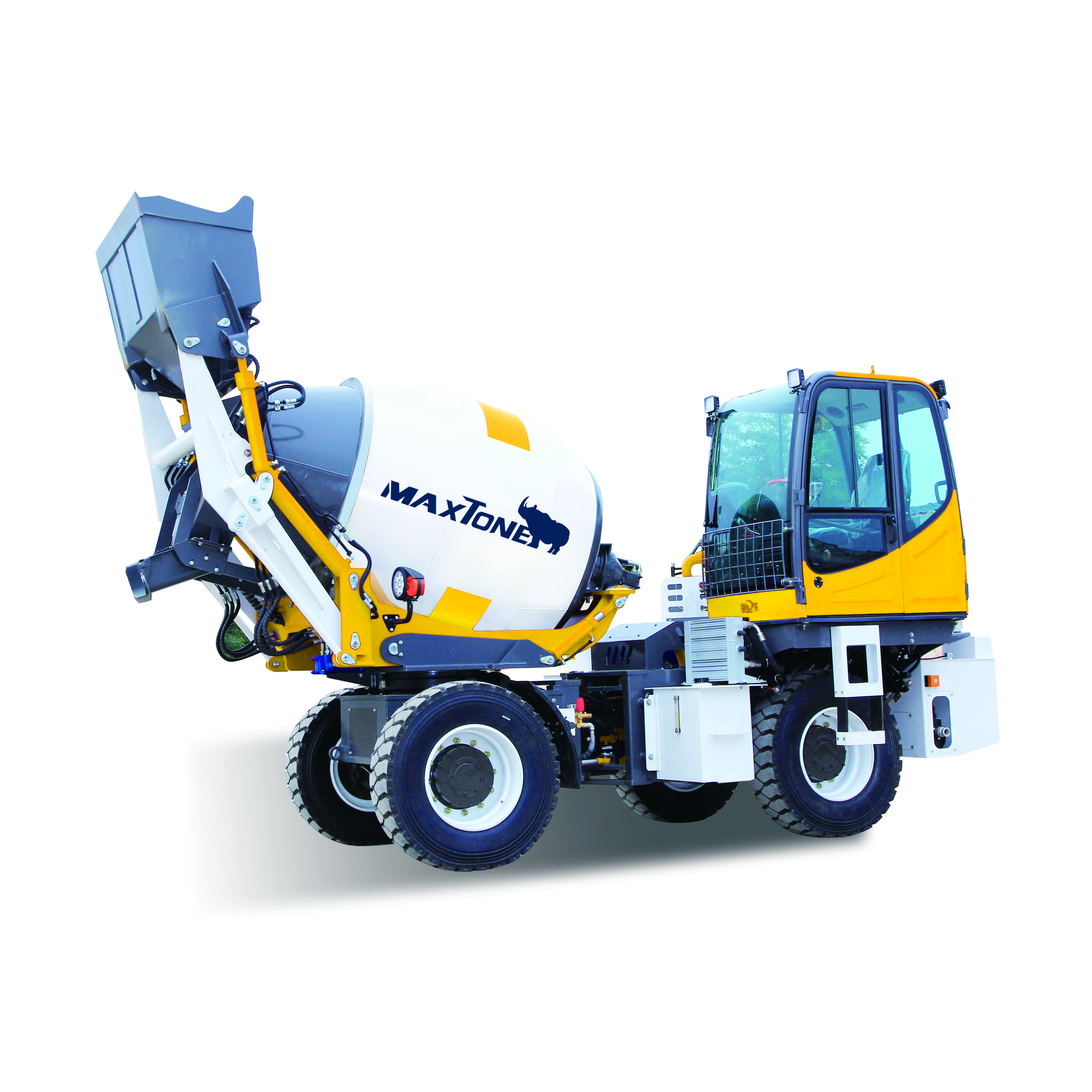

1.6cbm 2cbm 3.5 m3 4m3 Diesel self loading concrete mixer Propelled Small Concrete Mobile Truck for Sale
Product Description
Product Application
1 .Stirring device is mainly composed of mixing drum and auxiliary support components.< Mixing drum of concrete loaded containers,rotates the concrete along the blade spiral direction, constantly in the process of ascension and turning by mixing and stirring.in the process of feeding and transport, mixing barrel forward, concrete, moving along the blade into the discharge, the mixing tube inversion, the concrete to discharge along the blade.
2 .Blade is the main components in the mixing plant, serious wear and tear or damage can lead to concrete mixing unevenly. In addition, the Angle of the blade if the design is not reasonable, still can make concrete segregation.
3 .Cleaning system is the main purpose of cleaning the mixing barrel, is also sometimes used to transport on the way to dry mixing drum. Cleaning system and cooling effect to the hydraulic system. Totally enclosed device adopts rotary sealing technology, sealed the mixers in and out of the mouth, to solve the traditional mixing heavy evaporation, stratification of mortar,concrete material spilled, the series of problems such as driving safety.
1 .Stirring device is mainly composed of mixing drum and auxiliary support components.< Mixing drum of concrete loaded containers,rotates the concrete along the blade spiral direction, constantly in the process of ascension and turning by mixing and stirring.in the process of feeding and transport, mixing barrel forward, concrete, moving along the blade into the discharge, the mixing tube inversion, the concrete to discharge along the blade.
2 .Blade is the main components in the mixing plant, serious wear and tear or damage can lead to concrete mixing unevenly. In addition, the Angle of the blade if the design is not reasonable, still can make concrete segregation.
3 .Cleaning system is the main purpose of cleaning the mixing barrel, is also sometimes used to transport on the way to dry mixing drum. Cleaning system and cooling effect to the hydraulic system. Totally enclosed device adopts rotary sealing technology, sealed the mixers in and out of the mouth, to solve the traditional mixing heavy evaporation, stratification of mortar,concrete material spilled, the series of problems such as driving safety.
Feature
1. The big loading arm can rotate with the tank at the same time without affecting the discharge of the tank.
2. Operate simply and no considerations.
Additionally, the company will responsible for the problems caused by improper operation of the machine.
3. Using heavier axle to avoid shaft breakage.
4. The tank is welded by ourselves the tank thickness is promised. Hydraulic cylinders and key parts are produced independently by our factory as well and the sealing and quality of hydraulic cylinders are strictly controlled according to the standards of excavators and forklift.
Details Images
Customer Photos
now we have many dealer about the maxtone brand self loading concrete mixer truck all over the world.
Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure,mix
and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like
a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement,aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.
The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.
a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement,aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.
The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.
Specification
|
Vehicle parameters
|
1
|
Integrated structure, rear wheel steering
|
The drum rotates 270 ° and can be lifted and lowered
|
|
|
2
|
overall dimension (L*W*H)
|
5300×2350×2950mm
|
|
|
3
|
wheel base (mm)
|
2300mm
|
|
|
4
|
wheel tread
|
2030mm
|
|
|
5
|
Curb Weight（kg）
|
7500kg
|
|
|
6
|
（km/h）Maximum speed (km / h)
|
40
|
|
|
7
|
（°）Maximum climbing gradient
|
45°
|
|
|
8
|
Steering angle
|
|
|
|
9
|
Braking form
|
air brake
|
|
Engine
|
10
|
model
|
yuchai
|
|
|
11
|
type
|
4-cylinder inline, direct injection, water-cooled, four-stroke, supercharged
|
|
|
12
|
replacement
|
2.7
|
|
|
13
|
kW/r/min
|
78/2400
|
|
|
14
|
Nm/rpm
|
260-332/1800-2200
|
|
|
15
|
Emission standards
|
national 2
|
|
Transmission system |
16
|
torque converter
|
280
|
|
|
17
|
gearbox mode
|
280
|
|
|
18
|
gears
|
4 forward shift 4reverse shift |
|
|
19
|
maximum speed
|
40km/h
|
|
Mixing and unloading
|
20
|
Geometric volume of drum
|
3.2m³
|
|
|
21
|
Rotation speed of drum
|
15-20 rpm
|
|
|
22
|
Concrete output
|
2m³/Batch
|
|
|
23
|
Drum lift time
|
3.5s
|
|
Hydraulic system
|
24
|
reducer
|
3F open type
|
|
|
25
|
motor
|
BM5E4
|
|
|
26
|
Rotary reducer
|
WE25
|
|
Brake system
|
27
|
service brake
|
Air brake |
|
|
28
|
parking brake
|
Manual disk brake
|
|
Tyre |
29
|
type specification
|
16/70-R22.5 Rail tyre
|
|
|
30
|
front tyre pressure
|
0.5Mpa
|
|
|
31
|
rear tyre pressure
|
0.4Mpa
|
