Quick Details
-
Brand Name:
-
UHV
-
Model Number:
-
HTBYC-3000
-
Product name:
-

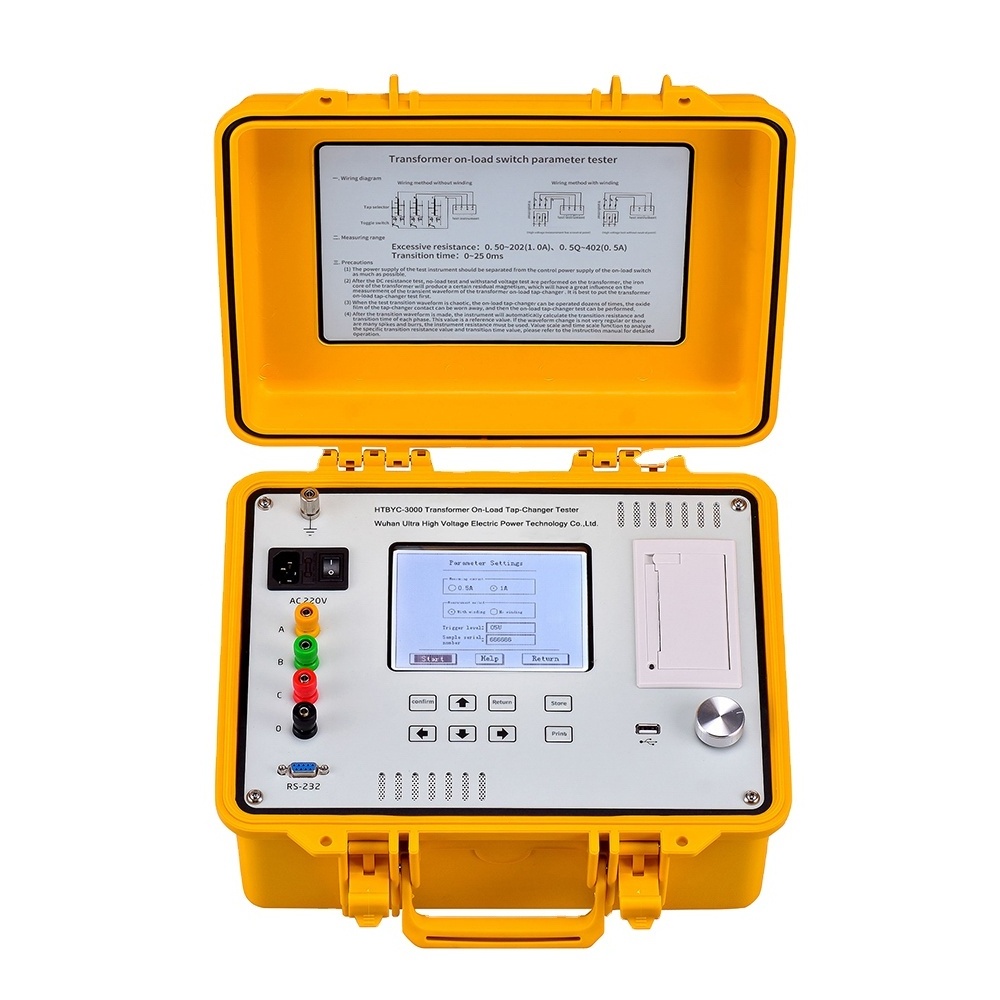

Transformer Tape-changer Tester
-
Output current:
-
1.0A,0.5A
-
Transition resistance:
-
0.5Ω~20Ω(1.0A),0.5Ω~40Ω(0.5A)
-
Transition time:
-
0~250ms
-
Accuracy:
-
±(0.1%+1digital)(time)
-
Accuracy of Transition resistance:
-
±(5%+3 digitals)(resistance)
-
Storage:
-
U disk storage, local storage 1G
-
Diemension:
-
345mm*295mm*175mm
-
Weight:
-
5KG
Quick Details
-
Warranty:
-
1 years, 1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
UHV
-
Model Number:
-
HTBYC-3000
-
Product name:
-
Transformer Tape-changer Tester
-
Output current:
-
1.0A,0.5A
-
Transition resistance:
-
0.5Ω~20Ω(1.0A),0.5Ω~40Ω(0.5A)
-
Transition time:
-
0~250ms
-
Accuracy:
-
±(0.1%+1digital)(time)
-
Accuracy of Transition resistance:
-
±(5%+3 digitals)(resistance)
-
Storage:
-
U disk storage, local storage 1G
-
Diemension:
-
345mm*295mm*175mm
-
Weight:
-
5KG
Product Paramenters
|
Three-phase constant current source, charging current
|
3A/1A 0.6A/0.2A file
|
|
Port maximum voltage
|
24V
|
|
Maximum transition resistance
|
100Ω
|
|
Transition resistance measurement range
|
1A: 0.4Ω ~ 20Ω
|
|
|
0.2A: 10Ω to 100Ω
|
|
Waveform recording duration
|
300ms
|
|
Sampling rate
|
30k
|
|
Time resolution
|
0.1ms
|
|
Resistance resolution
|
0.1Ω
|
|
Accuracy Transition resistance
|
±5% reading ±0.1Ω
|
|
Transition time
|
±0.5% reading ±0.2ms
|
|
Operating temperature
|
-10 ~ 40℃
|
|
Use relative humidity
|
< 85%RH
|
Functional & Characteristics
1, test Y0, Y, △ type transformer, resistance value without conversion directly display
2. Humanized data analysis can automatically find out the fault in the middle of the waveform and make a mark
3, waveform display is based on the sampled data automatically adjust the resistance value and time amplitude
4, type transformer can show three-phase synchronization
5, can be tested with winding or without winding
6, four-terminal wiring, providing high-precision resistance measurement, and no wire compensation
7, in the middle of the test can be continuous test, save the transformer power failure time
8, the instrument can survive word report, convenient data management and query
9, the instrument is controlled by a small computer, equipped with 800×480 color LCD touch screen, high-speed printer, support for external mouse, easy to operate
10, the instrument can automatically save 1000 sets of data inside, and can also be stored with external U disk
