Quick Details
-
Model Number:
-
KSHP
-
Output Frequency:
-
50/60Hz
-
Product Name:
-
12v24v 36v 48v 300w 5 in 1 dimmable LED Driver
-
Certification:
-
ULcUL FCC CE ROHS SAA CLASS P etc.
-
Application:
-
LED Strip Light,Pendants, Linears,Cove Lights
-
Material:
-
Aluminum Case
-
Warranty:
-
5 years
-
Protection:
-
OCP, OVP, SCP, OTP
-
IP Rate:
-
IP65;IP67
-
Efficiency:
-
≥91%
-
Power:
-
40W/60W/300W
-
Output:
-
12V/24V/36V/48V
Quick Details
-
Warranty(Year):
-
5-Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KSPOWER
-
Model Number:
-
KSHP
-
Output Frequency:
-
50/60Hz
-
Product Name:
-
12v24v 36v 48v 300w 5 in 1 dimmable LED Driver
-
Certification:
-
ULcUL FCC CE ROHS SAA CLASS P etc.
-
Application:
-
LED Strip Light,Pendants, Linears,Cove Lights
-
Material:
-
Aluminum Case
-
Warranty:
-
5 years
-
Protection:
-
OCP, OVP, SCP, OTP
-
IP Rate:
-
IP65;IP67
-
Efficiency:
-
≥91%
-
Power:
-
40W/60W/300W
-
Output:
-
12V/24V/36V/48V

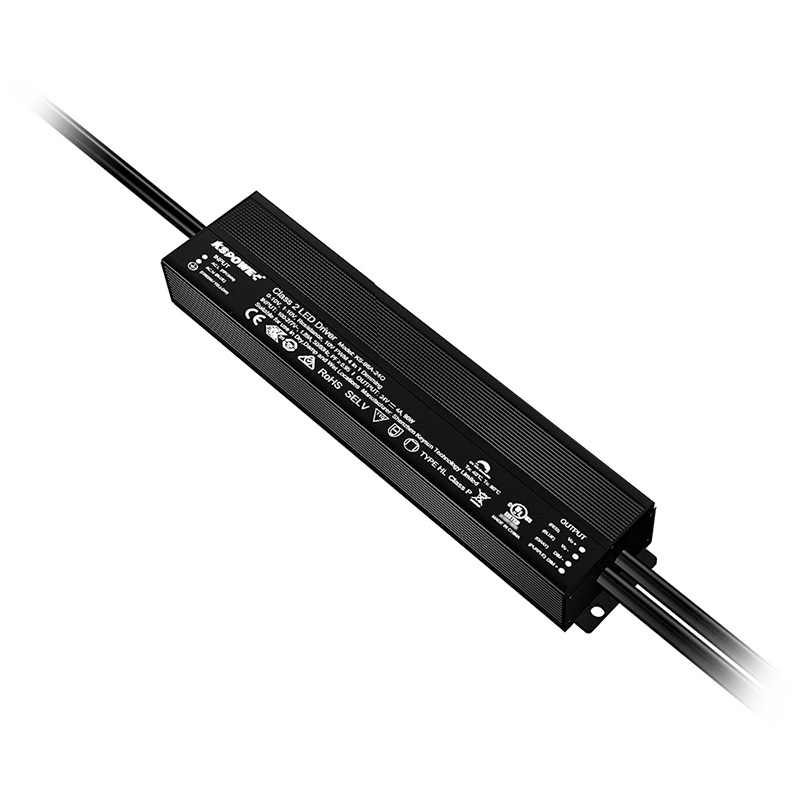

Products Description
ip67 waterproof 40w 60w led driver dc 12v outdoor 12volt 24volt 48volt 300w remote power supply LED Driver for led panel light
KSHP
is a versatile 40W/60W/300W 5
-in-1
universal dimming
driver that accepts 100-277VAC input voltage and provides 12V 24V 36V 48V constant voltage output. KSHP-180W delivers flicker free dimming to 0% on all dinning systems including 0-10V, 1-10V, PWM, Triac/ Phase-cut ,Resistance, MLV, ELV and Incandescent. The high efficiency of the driver and sophisticated overload protection enables the electronics to run cooler and significantly improve reliability while extending product life.
The compact metal case is dry/damp location listed and IP67 rated, making it suitable for a wide range of indoor/outdoor architectural, commercial, industrial, and residential lighting applications.
KSHP-180W is available with or without
integrated junction boxes
on both the input and output side that have two knock outs each.
Features:
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt/24Volt/36Volt/48Volt
* Driver Type: Class 2 Class P
* Enclosure:LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
* Dimming: Triac/ Phase-cut, PWM, 0/1-10V or MLV / ELV Resistance Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note：Any custom label/package/case is acceptable, provide OEM and ODM service
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt/24Volt/36Volt/48Volt
* Driver Type: Class 2 Class P
* Enclosure:LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
* Dimming: Triac/ Phase-cut, PWM, 0/1-10V or MLV / ELV Resistance Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note：Any custom label/package/case is acceptable, provide OEM and ODM service
|
Input Voltage
|
100~277V AC 47~63Hz
|
|
|
|
|||
|
Power Factor
|
PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load
|
|
|
|
|||
|
NO.
|
KSHP
|
|
|
|
|||
|
Output Voltage
|
12V/24V/36V/48V
|
|
|
|
|||
|
Rated Current
|
0.83A-12.5A
|
|
|
|
|||
|
Rated Power
|
40W 60W 300W
|
|
|
|
|||
|
Ripple & Noise (max.)
|
200mVp-p / 250mVp-p
|
|
|
|
|||
|
Certification
|
UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
|
|
|
|
|||
Dimming Connect Drawing
