Quick Details
-
Brand Name:
-
Kaifeng Fantai
-
Model Number:
-
FTUF
-
Product Name:
-

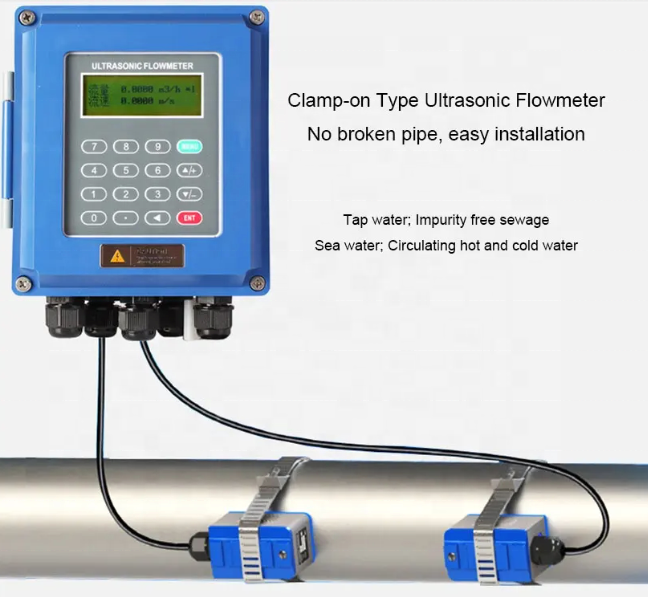

Digital Wall Mounted Clamp on Ultrasonic Flowmeter Flow Meter
-
Accuracy:
-
+/-0.5% (Customize), +/-1.0% (Standard)
-
Power supply:
-
220VAC/ 24VDC
-
Output signal:
-
4~20mA, Pulse
-
Communication:
-
RS-232, MODBUS
-
Connection:
-
Clamp on, wall-mounted type
-
Caliber:
-
DN15~DN6000 mm
-
Power consumption:
-
<13W
-
Ambient temperature:
-
-25 Deg C~+160Deg C
-
Display:
-
LCD Digital
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters, ultrasonic flow meter, wall mounted ultrasonic flow meter
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan
-
Brand Name:
-
Kaifeng Fantai
-
Model Number:
-
FTUF
-
Product Name:
-
Digital Wall Mounted Clamp on Ultrasonic Flowmeter Flow Meter
-
Accuracy:
-
+/-0.5% (Customize), +/-1.0% (Standard)
-
Power supply:
-
220VAC/ 24VDC
-
Output signal:
-
4~20mA, Pulse
-
Communication:
-
RS-232, MODBUS
-
Connection:
-
Clamp on, wall-mounted type
-
Caliber:
-
DN15~DN6000 mm
-
Power consumption:
-
<13W
-
Ambient temperature:
-
-25 Deg C~+160Deg C
-
Display:
-
LCD Digital
Products Description
Specification
|
Parameters
|
|
|
||
|
No.
|
Name
|
Details
|
||
|
1
|
Diameter
|
DN40-500
|
||
|
2
|
Accuracy
|
Better than ±1%
|
||
|
3
|
Repeatability
|
Better than 0.2%
|
||
|
4
|
Principle
|
Transit-time measuring principle
|
||
|
5
|
Flow range
|
0.1-8m/s
|
||
|
6
|
Display
|
LCD, instantaneous flow, Positive and negative cumulative flow, Flow rate
|
||
|
7
|
Input
|
Three analogue 4-20mA can connect 3-wired heat transducers PT100 to measure heat
|
||
|
8
|
Medium
|
Sea water
|
||
|
9
|
Medium temperature
|
-30℃-90℃
|
||
|
10
|
Power supply
|
DC8-36V or AC85-264V
|
||
|
11
|
Wire length
|
5meters
|
||
|
12
|
Output
|
4-20mA, MODBUS-RS485
|
||
|
13
|
Power dissipation
|
1.5W
|
||
