Quick Details
-
Brand Name:
-
maXpeedingrods
-
Car Model:
-
For BMW
-
Product name:
-
ARP 2000 Bolts For BMW M30 B35 Big 6 Engine
-
Application 1:
-
For BMW M30B35 Big 6 engine M30 L6
-
Application 2:
-
For BMW M30B28 M30B30 M30B32
-
Application 3:
-
For BMW 5 Serie E34 535i M30 B35 Big 6 Turbo
-
Application 4:
-
For BMW 7 Serie E32 735 M30 B35 Big 6 Turbo
-
Quantity:
-
6 Pieces a set
-
Horsepower:
-
200HP/Piece
-
Top acceleration:
-
9000rpm
-
Center to center length:
-
135mm/5.315"
-
SKU:
-
CR-BW-135B-6
Quick Details
-
OE NO.:
-
M30B30, M30B32, E34, B35, E32
-
Warranty:
-
2 Years
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
maXpeedingrods
-
Car Model:
-
For BMW
-
Product name:
-
ARP 2000 Bolts For BMW M30 B35 Big 6 Engine
-
Application 1:
-
For BMW M30B35 Big 6 engine M30 L6
-
Application 2:
-
For BMW M30B28 M30B30 M30B32
-
Application 3:
-
For BMW 5 Serie E34 535i M30 B35 Big 6 Turbo
-
Application 4:
-
For BMW 7 Serie E32 735 M30 B35 Big 6 Turbo
-
Quantity:
-
6 Pieces a set
-
Horsepower:
-
200HP/Piece
-
Top acceleration:
-
9000rpm
-
Center to center length:
-
135mm/5.315"
-
SKU:
-
CR-BW-135B-6
Specification
|
Application
|
For BMW M30B35 Big 6 engine M30 L6
For BMW M30B28 M30B30 M30B32
For BMW 5 Serie E34 535i M30 B35 Big 6 Turbo
For BMW 7 Serie E32 735 M30 B35 Big 6 Turbo
Pin Type: Floating Pin Piston
|
|
Specification
|
*Type: Forged 4340 aircraft chrome moly quality steel for racing

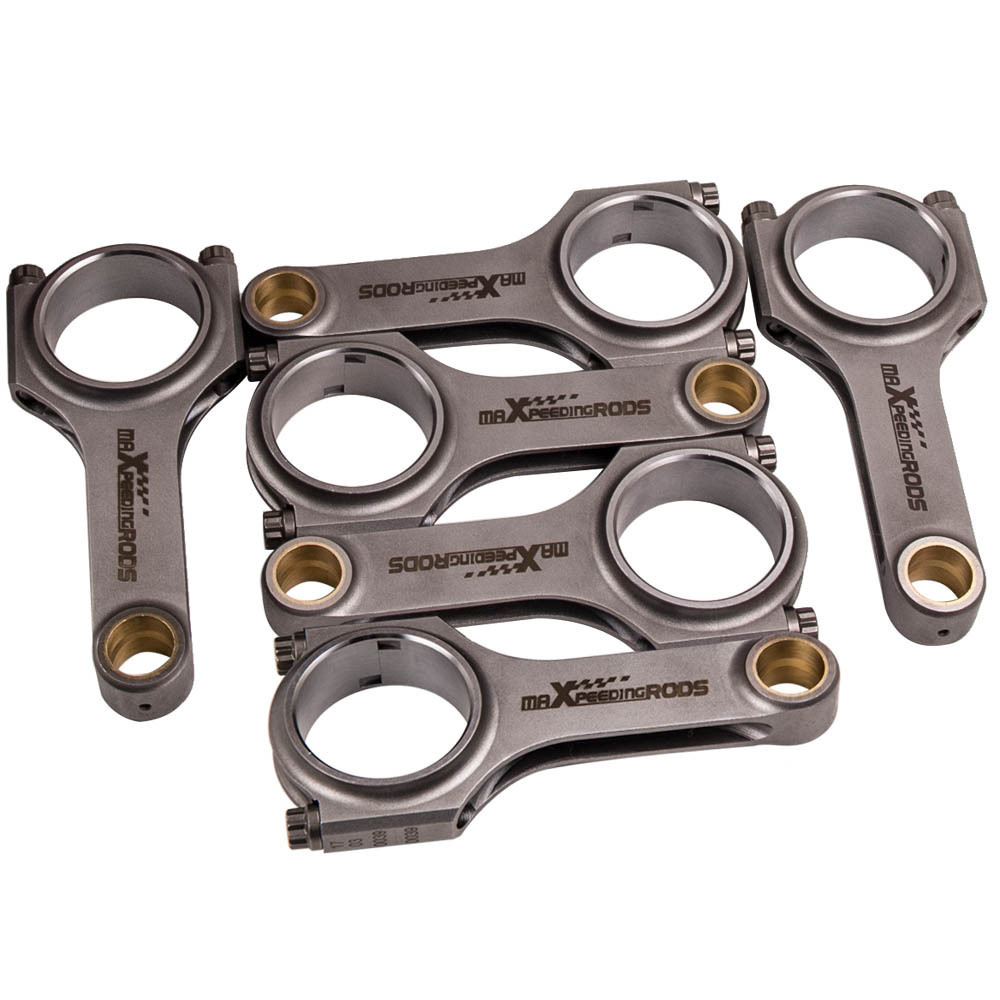

*H-beam Conrods
Quantity
:
6
Pieces as showing in picture
*Bolts: Including ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts) *The connecting rods all
include
ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised
Horsepower
Rating:200HP/piece
*
Top acceleration
: 9000rpm
*
Package
size：28CM*21CM*10CM
|
|
Dimensions
|
Center
to
center
length: 135mm/5.315"
Big end diameter : 52mm/2.047" Small end diameter : 22mm/0.866" Big end width : 23.876mm/0.94" Small end width : 23.88mm/0.94" |
|
Feature
|
1.
TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED
；
2.
Material
: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,
Optional
ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to
remove potential for stress risers；
6.
High precision CNC
machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .01 mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.
|
|
Note
|
- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
|
