Quick Details
-
Model Number:
-
PE100
-
Specification:
-
PN16
-
Length:
-
5.8m;6m,12m according customer's requirement
-
Thickness:
-
2.0mm
-
Standard:
-
ISO 4427, AS/NZS4130, DIN 8074, ISO4427, AS/NZS4437, DIN8074
-
Item:
-
Superior quality simple design pe100 20mm polyethylene pipe pn16
-
Pressure:
-
0.6mpa, 0.8mpa, 1.0mpa, 1.6mpa, 2mpa
-
Connection:
-
Socket Fusion, Butt fusion, Electric Fusion
-
Certificate:
-
SNI, SGS, CE, ISO, GOST
-
Purpose:
-
water supply and drainage,
-
Welded:
-
Hot melt welding, heating connection
-
Application:
-
HDPE pipe and fittings prices
-
Occocation:
-
mining project, chemical water, irrigation
Quick Details
-
Processing Service:
-
Moulding
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
REHOME
-
Model Number:
-
PE100
-
Specification:
-
PN16
-
Length:
-
5.8m;6m,12m according customer's requirement
-
Thickness:
-
2.0mm
-
Standard:
-
ISO 4427, AS/NZS4130, DIN 8074, ISO4427, AS/NZS4437, DIN8074
-
Item:
-
Superior quality simple design pe100 20mm polyethylene pipe pn16
-
Pressure:
-
0.6mpa, 0.8mpa, 1.0mpa, 1.6mpa, 2mpa
-
Connection:
-
Socket Fusion, Butt fusion, Electric Fusion
-
Certificate:
-
SNI, SGS, CE, ISO, GOST
-
Purpose:
-
water supply and drainage,
-
Welded:
-
Hot melt welding, heating connection
-
Application:
-
HDPE pipe and fittings prices
-
Occocation:
-
mining project, chemical water, irrigation
Customized all size of PPR pipe and HDPE pipe
Welcome to Rehome
Professional PPR pipe/ HDPE pipe manufacture
we are sincerely recruit agents from all over the world.

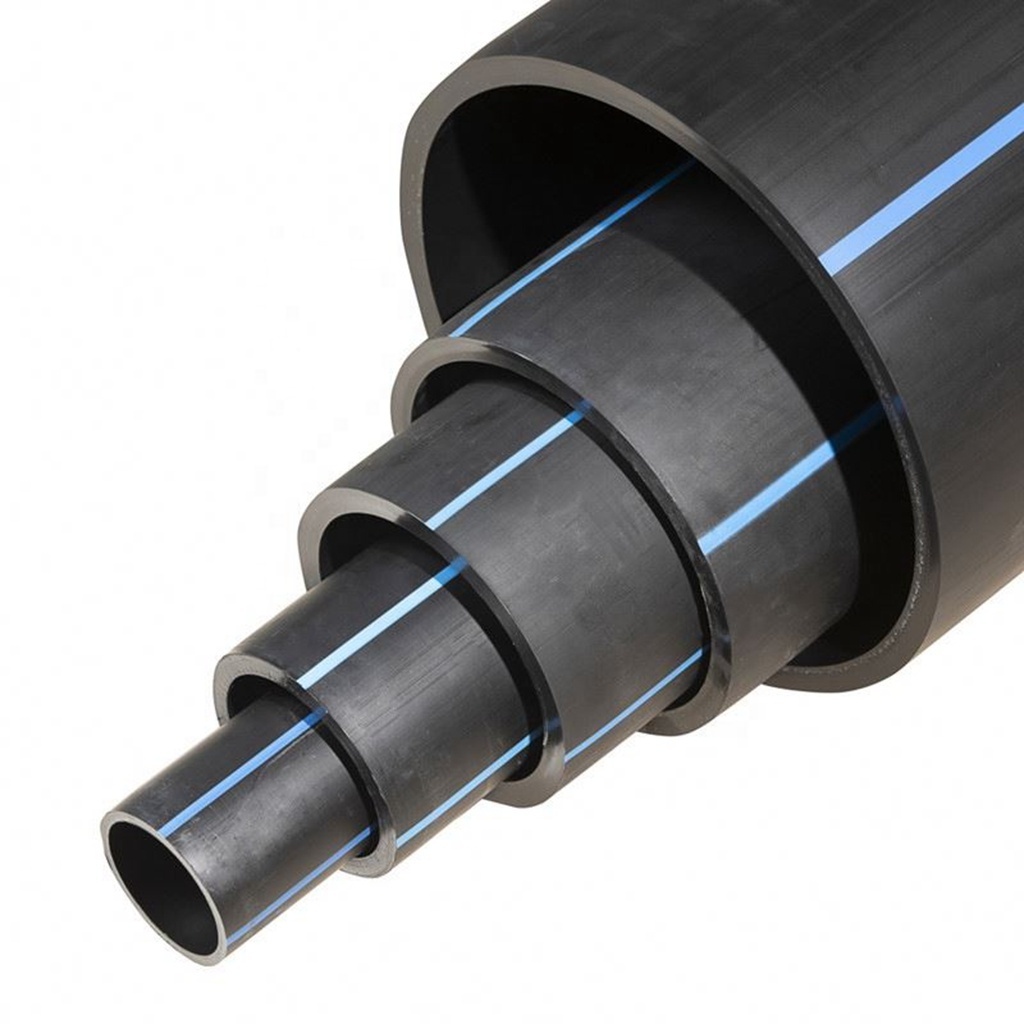

Superior quality simple design pe100 20mm polyethylene pipe pn16 price
Superior quality simple design pe100 20mm polyethylene pipe pn16 price
I.Details:
| Items | Hdpe pipe |
| Material | Polythylene |
| Size | 16 ~ 1200 mm |
| Color | Black |
| Connection | Welding |
| Pressure | PN5,PN6,PN8,PN10,PN12.5,PN16,PN20,PN25 |
| Standard | ISO4427,AS/NZS4130,DIN 8074 |
II. Advantage:
(1) Good environmental suitability.
(2) Excellent chemical resistance , long service life.
(3) The inside pipe wall is extremely smooth and difficult to leave over dirt.
(4) Connected by welding , leakage prohibit.
III.Specification:
| Spec(mm) | Nominal Pressure | |||||||
| PN5 | PN6 | PN8 | PN10 | PN12.5 | PN16 | PN20 | PN25 | |
| Thickness | Thickness | Thickness | Thickness | Thickness | Thickness | Thickness | Thickness | |
| 16 | 2.0 | 2.3 | ||||||
| 20 | 2.0 | 2.3 | 3.0 | |||||
| 25 | 2.0 | 2.3 | 3.0 | 3.5 | ||||
| 32 | 2.0 | 2.4 | 3.0 | 3.6 | 4.4 | |||
| 40 | 2.0 | 2.4 | 3.0 | 3.7 | 4.5 | 5.5 | ||
| 50 | 2.0 | 2.4 | 3.0 | 3.7 | 4.6 | 5.6 | 6.9 | |
| 63 | 2.5 | 3.0 | 3.8 | 4.7 | 5.8 | 7.1 | 8.6 | |
| 75 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 | 8.4 | 10.3 | |
| 90 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 | 12.3 | |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 | 12.3 | 15.1 | |
| 125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 | 14.0 | 17.1 | |
| 140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | 15.7 | 19.2 | |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 | 17.9 | 21.9 | |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | 20.1 | 24.6 | |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | 22.4 | 27.4 | |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | 25.2 | 30.8 | |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 | 27.9 | 34.2 | |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | 31.3 | 38.3 | |
| 315 | 9.7 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 | 35.2 | 43.1 |
| 355 | 10.9 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 | 39.7 | 48.5 |
| 400 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | 44.7 | 54.7 |
| 450 | 13.8 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | 50.3 | 61.5 |
| 500 | 15.3 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 | 55.8 | |
| 560 | 17.2 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 | 62.5 | |
| 630 | 19.3 | 24.1 | 30.0 | 37.4 | 46.3 | 57.2 | 70.3 | |
| 710 | 21.8 | 27.2 | 33.9 | 42.1 | 52.2 | 64.5 | 79.3 | |
| 800 | 24.5 | 30.6 | 38.1 | 47.4 | 58.8 | 72.6 | 89.3 | |
| 900 | 27.6 | 34.4 | 42.9 | 53.3 | 66.2 | 81.7 | ||
| 1000 | 30.6 | 38.2 | 47.7 | 59.3 | 72.5 | 90.2 | ||
| 1200 | 36.7 | 45.9 | 57.2 | 67.9 | 88.2 | |||
