Factory Direct Sale Color Steel Metal Anti Climb Palisade Fence Panel Cold Roll Forming Machine

Factory Direct Sale Color Steel Metal Anti Climb Palisade Fence Panel Cold Roll Forming Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $15500

≥2 Sets

US $15300

≥3 Sets

US $15000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Rolling thinckness:: 0.2-0.6mm

Place of Origin:: Hebei, China

Brand Name:: Shengrui

Voltage:: 220v/380V

Dimension(L*W*H):: 6000mm*1200mm*1100mm

Weight:: 3500 kg

Feeding width:: 915mm/1000mm/1220mm

Model number:: 840

Raw materials:: ppgi/zinc/aluminum

width of raw material:: 1000mm

yield strength:: Q235

thickness:: 0.2mm -0.8mm

Control System:: PLC computer

Trademark:: shengrui

guarantee:: 2 Years

HS code:: 84552210 7

origin:: China

Quick Details

Type:: Tile Forming Machine

Tile Type:: Colored Glaze Steel

Production Capacity:: 8-15m/min

Rolling thinckness:: 0.2-0.6mm

Place of Origin:: Hebei, China

Brand Name:: Shengrui

Voltage:: 220v/380V

Dimension(L*W*H):: 6000mm*1200mm*1100mm

Weight:: 3500 kg

Feeding width:: 915mm/1000mm/1220mm

Model number:: 840

Raw materials:: ppgi/zinc/aluminum

width of raw material:: 1000mm

yield strength:: Q235

thickness:: 0.2mm -0.8mm

Control System:: PLC computer

Trademark:: shengrui

guarantee:: 2 Years

HS code:: 84552210 7

origin:: China

Product Description

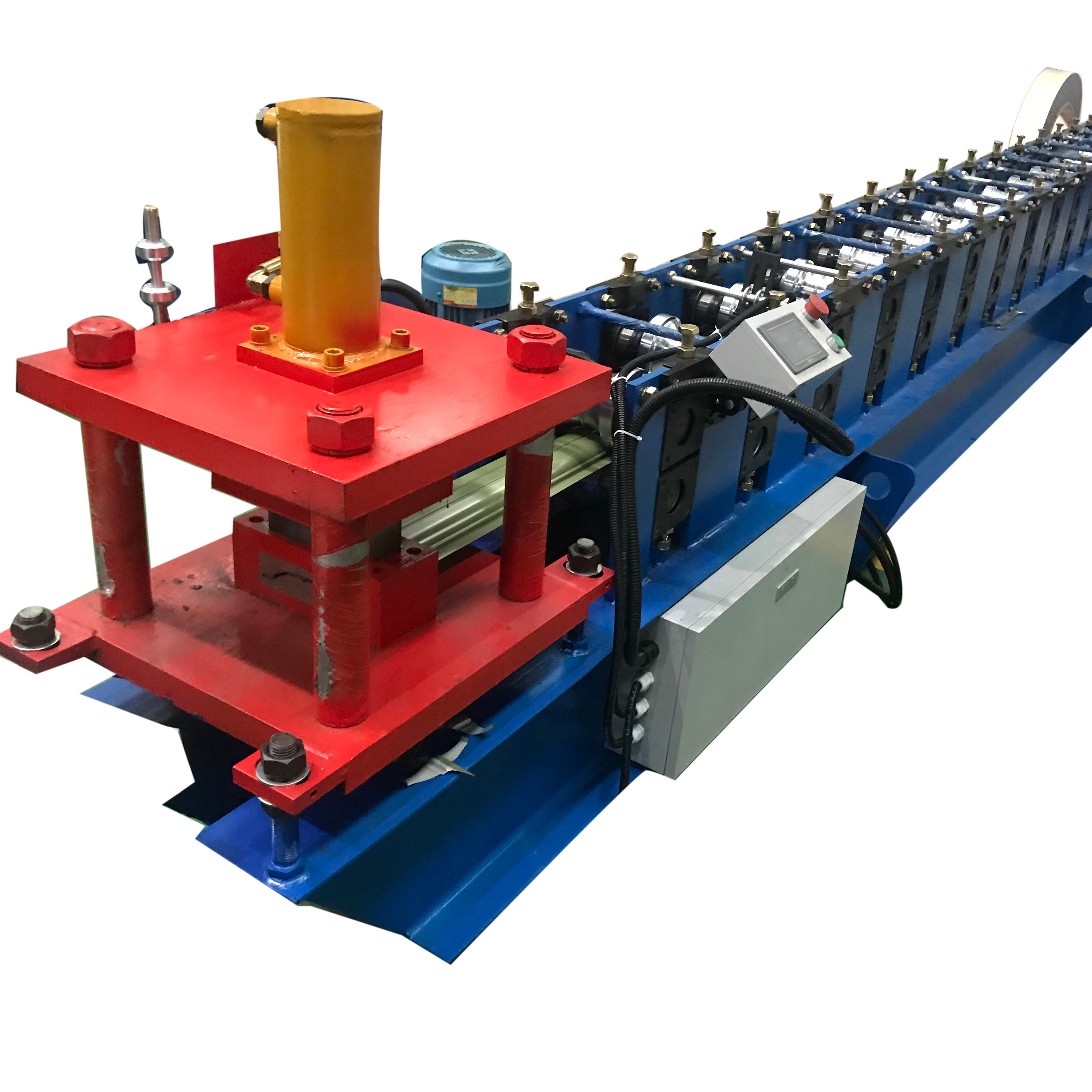

Fence Panel Roll Forming Machine

The Roll Forming Machine is composed of feeding, forming, and post-forming cutting. The plate produced has a flat and beautiful appearance, high strength, and durability. It is widely used in industrial and civil buildings, such as factories, warehouses, gymnasiums, exhibition halls, theaters, etc. House surfaces and walls.

Advantage

easy to operate

long warranty

security framework

Good value for money

Good quality

Specification

No	Item	Item
1	Coil Width	according to drawings
2	Diameter of shaft	70mm
3	Forming Speed	8-12meters/min
4	Middle plate	16mm
5	Material of shaft	45#steel with tempering
6	forming thickness	0.2mm-0.6mm
7	material of rollers	45#steel
8	Cutting type	hydraulic -cutting
9	Main power	5.5kw+4kw
10	4Main frame	400H steel
11	Control system	PLC
12	Brand of electrical parts	Delta
13	Manual decoiler	5 tons
14	Power	3 Phase,380 Voltage,50Hz
15	Dimensions(LWH)	About 6.51.21.2M
16	Weight	about 3.5 tons
