Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YC
-
Model Number:
-
01
-
Size:
-
1150mm width, height customized
-
Feature:
-
fire proofing, thermal insulated, big bearing capacity
-
Material:
-
Color Plate+Sulfur oxygen magnesium filler
-
Fire Rating:
-
B1
-
Cleanliness:
-
class 100-100000
-
Color::
-
light gray
-
Certificate:
-
CE ISO
Quick Details
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
Warehouse
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YC
-
Model Number:
-
01
-
Size:
-
1150mm width, height customized
-
Feature:
-
fire proofing, thermal insulated, big bearing capacity
-
Material:
-
Color Plate+Sulfur oxygen magnesium filler
-
Fire Rating:
-
B1
-
Cleanliness:
-
class 100-100000
-
Color::
-
light gray
-
Certificate:
-
CE ISO
Product Description
PIR SANDWICH PANEL
Feature: LBA also called HFO foaming agent, is the newest fourth generationenvironmental protection foaming agent. However ODP is zero, not only portectthe ozone but also save the Earth from global warming (GWP is one).Thisnonflammable ligud and it's boiing pointloaming agent isnear roomtemperature.
PIR and PUR are two completely different insulation materials, PIR full name polyurethane modified polyisocyanurate, is a kind of
foam by polyurethane modified polyisocyanurate foam, performance and ordinary ammonia, ester there are great differences. Common
polyurethane foam plastics called PUR, PIR foam for short PIR.
foam by polyurethane modified polyisocyanurate foam, performance and ordinary ammonia, ester there are great differences. Common
polyurethane foam plastics called PUR, PIR foam for short PIR.
Specification
The difference of production process: the production of PIR is much higher than the production of PUR black material (that is polycyanate) index, which PUR's polycyanate index is generally 110-120, and PIR's polycyanate index is generally 250 or more, and the production of PUR white material generally uses polyether polyol, the production of PIR white material will use polyester polyol.
In addition to the different raw materials, the production of PIR generally uses automatic production lines,
semi-automatic or fully manual production lines cannot meet the production requirements of PIR. Therefore, compared with PUR, the production cost of PIR is higher.
semi-automatic or fully manual production lines cannot meet the production requirements of PIR. Therefore, compared with PUR, the production cost of PIR is higher.
|
Product name
|
PU/PIR Sandwich Panel
|
|
Effective width
|
Wall/Roof panel: 1000mm
|
|
Length
|
Customized(not exceeding 11.8m)
|
|
Thickness
|
50mm, 75mm, 100mm, 150mm, 200mmA1
|
|
Density
|
35-45kg/m3
|
|
Steel Sheet Thickness
|
0.4-0.8mm
|
|
Zinc content
|
Z40-275g/m2
|
|
Color
|
RAL color
|
|
Product name
|
PU Sealing Rock/Glass Wool Sandwich Panel
|
|
Effective width
|
Wall/Roof panel: 1000mm
|
|
Length
|
Customized(not exceeding 11.8m)
|
|
Thickness
|
50mm, 75mm, 100mm, 150mm, 200mm
|
|
Density
|
Rockwool:100-120kg/m3
Glasswool:60-64kg/m3 |
|
Steel Sheet Thickness
|
0.4-0.8mm
|
|
Zinc content
|
Z40-275g/m2
|
|
Color
|
RAL color
|
Advantage
Quick Installation
Universal panel and aluminium fittings can build up 100m² prefab buildings in 2 Hours.
Durable and long life use
Full automatic production line keep high and same quality,anti corrosion for last life for 15-20 years.
Quick Mass Production
As usual,2-5 days finished 1000 square meters panels.
Sound-absorbing
50 thickness PU panel can absorb the sound over 30 db/m²
Fireproof
Reaches the national fire grade standard of GB8624.
Waterproof
Cam lock can keep its shape and character after soaking in water for a few days.

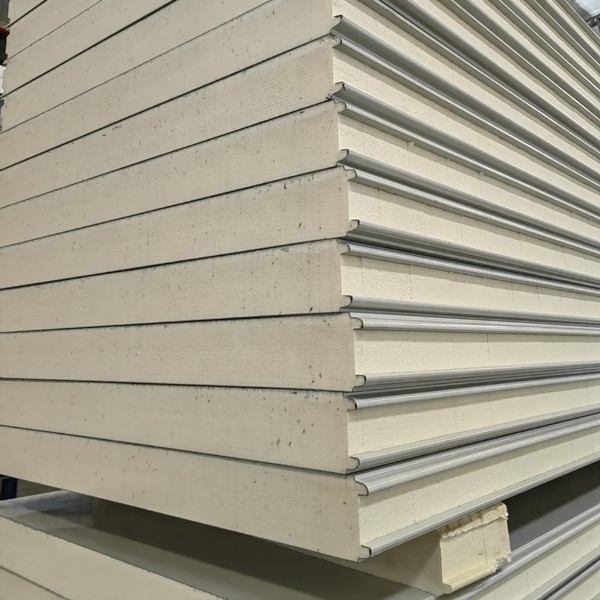

Product image
