Quick Details
-
Application:
-
for the production of self drilling screw
-
Type:
-
Fully Automatic
-
Feature:
-
Advanced model, easy operation
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DURA
-
Weight (KG):
-
2800
-
Application:
-
for the production of self drilling screw
-
Type:
-
Fully Automatic
-
Feature:
-
Advanced model, easy operation
Product Description
Features

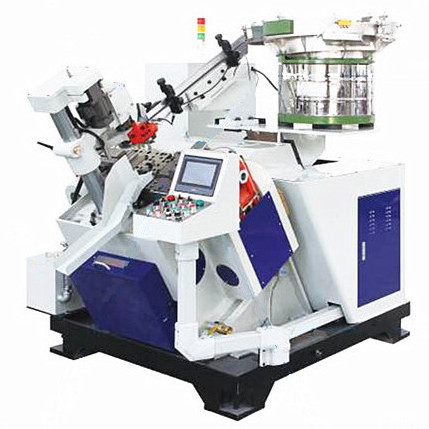

1. Designed for drill point forming of self-drilling screw.
2. Monitor & alarm system for lack of wire, wire stocking, forging force, oil pressure, shaft temperature, providing reliable
regular operation.
3. More lubricating spots, separate lubricating system with steel scraps filter, ensuring high precision and long service life.
- high-speed & high-precision cutting, low noise
- separate lubricating, oil-saving
- square sliding seat, stable & wear-resistant - screen indicate displacement to 0.001mm
- suspended line slots, avoiding oil corrosion
- computer-controlling whole machine, simple operation
|
Model
|
Unit
|
SDS-5(S)
|
SDS-6(S)
|
SDS-8(S)
|
|||
|
Blank dia.
|
mm
|
2.8-5.0
|
2.8-6.0
|
3.9-8.0
|
|||
|
Screw length
|
mm
|
10-150
|
10-200
|
10-200
|
|||
|
Designed capacity
|
pcs/min
|
100-500
|
100-500
|
100-400
|
|||
|
Main motor
|
kw
|
5.5
|
7.5
|
11
|
|||
|
Inverter
|
kw
|
7.5
|
11
|
15
|
|||
|
Auto-action & detect controller
|
PLC & Touch Screen Man-machine Interface Fault Indication
|
|
|
|
|||
|
Overall dimensions (L * W * H)
|
mm
|
1900*1400*1800
|
1900*1500*1900
|
2200*1600*1700
|
|||
|
Weight(Approx.)
|
kg
|
2300
|
2800
|
2850
|
|||
Packing & Delivery
The delivery time for the drill point forming machine for making self-drilling screw is around one month.
