Quick Details
-
Material:
-
F.R.P. Material Marine Open Life boat
-
Speed:
-
More Than 6knots
-
Length:
-
5.5~8.5M
-
Breadth:
-
1.60~1.2 M
-
Type:
-
Open type Lifeboat
-
Color:
-
Orange /White
-
Operation method:
-
Manual / Diesel Engine Open Lifeboat
-
Warranty:
-
12 months
-
Application:
-
River leisure boat/ Marine lifeboat
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GR Open Life boat
-
Capacity:
-
16~72P
-
Material:
-
F.R.P. Material Marine Open Life boat
-
Speed:
-
More Than 6knots
-
Length:
-
5.5~8.5M
-
Breadth:
-
1.60~1.2 M
-
Type:
-
Open type Lifeboat
-
Color:
-
Orange /White
-
Operation method:
-
Manual / Diesel Engine Open Lifeboat
-
Warranty:
-
12 months
-
Application:
-
River leisure boat/ Marine lifeboat

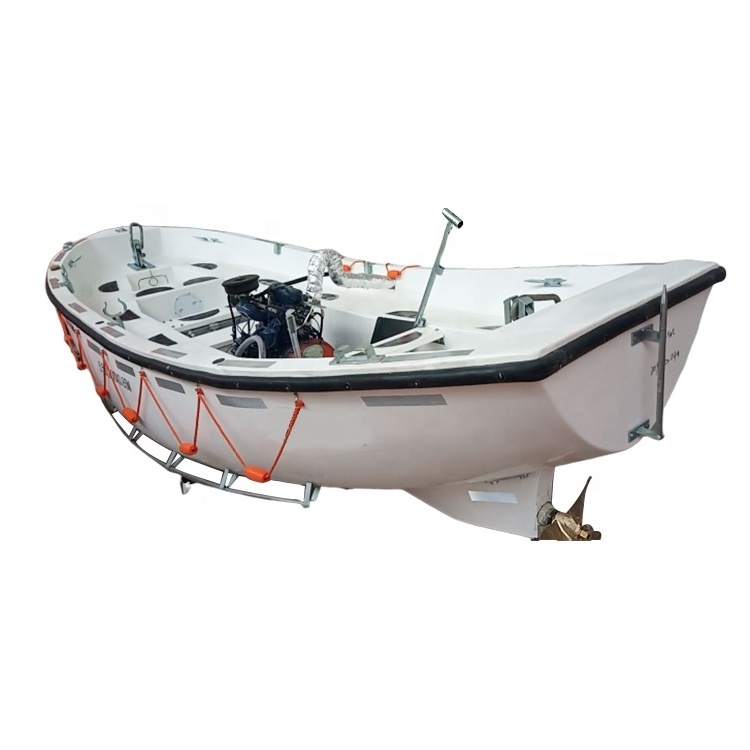

F.R.P. Material Open Lifeboat Open Type Marine Lifeboat
Overview for GRP Open Lifeboat
--- The open lifeboat is manufactured with compliance with the(amendments to the SALAS, 1974).
--- The hull of lifeboat is made of the fire reinforced plastic(F.R.P.).
--- The space between the inside and outside hull is filled with polyurethane foam which will supply sufficient buoyancy for the boat.
---The Marine GRP Open boat Equipment will be afloat with the help of the foam even the part of boat underneath the water damaged. This open life boat is used for the life-saving on the sea.
1. Confines of OpenType Lifeboat
1.1 This specification prescribe require for useful confines fundamental characteristics building and testing of 5.0-10 M totally enclosed common life /rescue boat.
1.2 This specification to be used attachment for contract. It’s also the devise and produce document. And to by way of the delivery technical base.
1.3 Certificate : EC,DNV,BV ,CCS & ABS etc...for Open Type Lifeboat Equipment
2. The main rest on for compilation
2.1 Amendments to the international convention for the safety of safety of life at sea,1974.
2.2 International life-saving appliance(LSA),code MSC.218(82),MSC.272(85).
2.3 MSC.81(70),MSC.226(82), MSC.274(85)The resolution for maritime safety committee.
2.4 Nation calibrate for F.R.P. material.
3. Function and useful confines for Open Type Lifeboat Plant
3.1 Function:By mean of get away from ship and recovery for persons in water
3.2 Useful confines:≤3;Max. three class sea state;
4.Specification of F.R.P. Material Marine Open Life boat
|
Model Particulars |
GR 55K |
GR 60K |
GR 70K |
GR 75K |
GR 80K |
|
|
Length |
m |
5.5 |
6.08 |
7.12 |
7.53 |
8.02 |
|
Breadth |
m |
2.10 |
2.10 |
2.35 |
2.55 |
2.65 |
|
Depth |
m |
0.95 |
0.95 |
1.03 |
1.05 |
1.10 |
|
Hook distance |
m |
4.50 |
5.30 |
6.00 |
6.50 |
7.00 |
|
Craft weight |
kg |
1364(674) |
1320(715) |
1730(1329) |
1887(1475) |
2249(1645) |
|
Persons |
P |
16(16) |
22(25) |
33(36) |
43(46) |
52(55) |
|
Full Load |
kg |
2564(1874) |
2970(2590) |
4205(4029) |
5112(4925) |
6149(5770) |
|
Speed |
|
≥6 knots |
||||
|
Engine |
|
ZX2105C-1 |
||||
|
Power |
HP |
24 |
||||
|
Rotate speed |
rpm |
1500 |
||||
|
Remark |
|
The particulars in bracket is without engine |
||||
Welcome to contact talk about details, If you are needed in F.R.P. Material Marine Open Life boat, Enclosed LIFEBOAT, or RESCUE BOAT.
