Quick Details
-
Brand Name:
-
KEEPLINK
-
Model Number:
-
KP-9000-6XH-X
-
Place of Origin:
-
Guangdong, China
-
Device Type:
-
6 port 2.5G Ethernet switch
-
Operating temperature:
-
-10°C ~ +55°C
-
Power Input:
-
DC12V
-
Dimension (WxHxD):
-
175*73*28mm(LxDxH)
-
Surge protection:
-
6KV/4KV
-
Installation:
-
Desktop
-
ESD:
-
8KV/15KV
-
Switching Chipest:
-
Realtek
-
Structure:
-
Realtek PSE
-
Shell:
-
Fanless design
Quick Details
-
Transmission Rate:
-
2.5Gbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
45G
-
Brand Name:
-
KEEPLINK
-
Model Number:
-
KP-9000-6XH-X
-
Place of Origin:
-
Guangdong, China
-
Device Type:
-
6 port 2.5G Ethernet switch
-
Operating temperature:
-
-10°C ~ +55°C
-
Power Input:
-
DC12V
-
Dimension (WxHxD):
-
175*73*28mm(LxDxH)
-
Surge protection:
-
6KV/4KV
-
Installation:
-
Desktop
-
ESD:
-
8KV/15KV
-
Switching Chipest:
-
Realtek
-
Structure:
-
Realtek PSE
-
Shell:
-
Fanless design
6 port 2.5G Ethernet switch commercial super fast transmission
for camera PC and TV
Leading
manufacturer of
industrial and enterprise ethernet switches...
Intelligent IoT Cabinet,
4G router, PoE splitter, Fiber optical transceiver,
Fiber patch cable,
Media Converter
...
WE ARE AIM
TO BE YOUR BEST INDUSTRIAL NETWORKS SOLUTION PROVIDER
IN CHINA !
Product Description

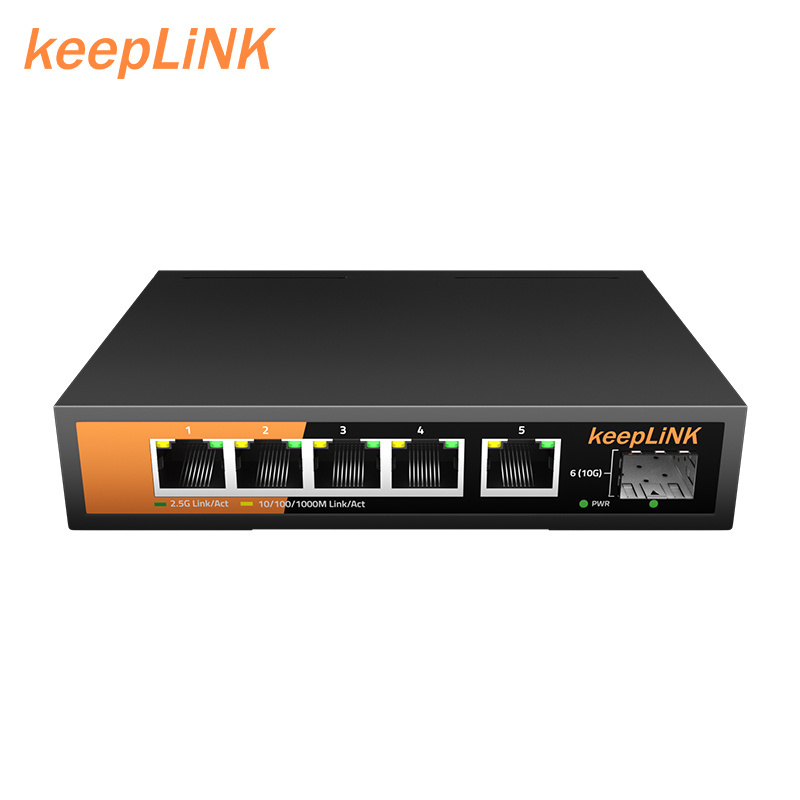

Keeplink Industrial Ethernet Switch.
KP-9000-6XH-X, 6-ports switch is equipped with 5x 10/100/1000M/2.5G RJ45 ports, 1x10G SFP uplinks. This switch delivers 45Gbps switching capacity and 33.48Mpps forwarding rate. The high-quality signal is transmitted without external interference and the data is forwarded more steadily. Each port support MDI/MDIX and Line speed forwarding function. Adopting storage and forwarding methods to provide stable and reliable data transmission.
|
Provider Mode Ports
|
|
|
|
Port type and quantity:
|
5x 10/100/1000/2.5G Base-TX, 1x10GBase-X SFP port
|
|
|
Power Supply
|
DC connector
|
|
|
Electrical Specifications
|
|
|
|
Input voltage
|
DC12V
|
|
|
Power consumption:
|
≤5W
|
|
|
Layer 2 Switching
|
|
|
|
Switching capacity
|
45Gbps
|
|
|
Packet forwarding rate
|
33.48Mpps
|
|
|
MAC address table
|
4K
|
|
|
MDX/MIDX
|
Support
|
|
|
4KJumbo frame
|
4K bytes
|
|
|
Environment
|
|
|
|
Temperature
|
Operating Temperature：-10ºC to 55ºC; Storage Temperature：-40ºC to 70ºC
|
|
|
Relative humidity
|
Operation Humidity：10% to 90% RH (non-condensing)
|
|
|
Heat Dissipation Method
|
Fanless, natural dissipation
|
|
|
MTBF
|
100,000H
|
|
|
EMC & Ingress Protection
|
|
|
|
Surge protection for Ethernet port
|
Commo mode: 4K; Differential-mode: 2K
|
|
|
ESD
|
Contact 8K; Air 15K
|
|
|
Free fall
|
0.5m
|
|
|
Mechanical
|
|
|
|
Product size
|
140*93*28mm(L*D*H)
|
|
|
Installation method
|
Desktop
|
|
|
Weight
|
0.3KG
|
|
