(1)JQ500 concrete mixer
(2)Feeding capacity: 750L
(3)Output capacity: 500L
(4)Production: ≥20m³/Hour
(5)Electric motor power: 7.5kw
(6)Speed of main shaft: 32rpm
(7)Weight: 600KGs
(8)Diameter: 1.5M
(9)Reducer:ZQ250
- Product Details
- {{item.text}}
Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YouJu
-
Voltage:
-
according to your local needs
-
Dimension(L*W*H):
-
2060*1730*2580mm
-
Marketing Type:
-
New Product 2024
-
Weight (KG):
-
4000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Overall Dimension:
-
7100X1700X2610MM
-
Power:
-
25.7KW
-
Productivity:
-
7200-9600 pcs/day
-
Cycle Time:
-
15 seconds
-
Vibrating Frequency:
-
4600 rolls/minute
-
Exciting power:
-
35.5KN
-
Pallet Size:
-
900X500X30MM
-
Factory Area:
-
300m2
-
Raw Materials:
-
crushed stone, sand, cement, dust and coal fly ash, cinder,
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other
-
Brick Raw Material:
-
Cement
-
Production Capacity (Pieces/8 hours):
-
Other, 4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours, 3000pcs/day
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YouJu
-
Voltage:
-
according to your local needs
-
Dimension(L*W*H):
-
2060*1730*2580mm
-
Marketing Type:
-
New Product 2024
-
Weight (KG):
-
4000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Overall Dimension:
-
7100X1700X2610MM
-
Power:
-
25.7KW
-
Productivity:
-
7200-9600 pcs/day
-
Cycle Time:
-
15 seconds
-
Vibrating Frequency:
-
4600 rolls/minute
-
Exciting power:
-
35.5KN
-
Pallet Size:
-
900X500X30MM
-
Factory Area:
-
300m2
-
Raw Materials:
-
crushed stone, sand, cement, dust and coal fly ash, cinder,
Product Description
Introduce
1) The motor for the host machine is Germany SIEMENS brand or CE standard brand
2) Control PLC: we select the original Siemens PLCcombine with an independently develop machine control program, assure stable and high-efficiency working status
3) The Travel switch will use the France Schneider brand and Japan Omron
4) Mould: newest heat treatment device and carburizing treatment will assure a longer mold life span and ensure mold strength reaches 54-58 HRC so that the mold can be used more than 100 thousand times.
5)Material and welding: all materials and spare parts are selected according to international CE standards, Carbon dioxide protection welding will assure the whole line stable running.
Specification
|

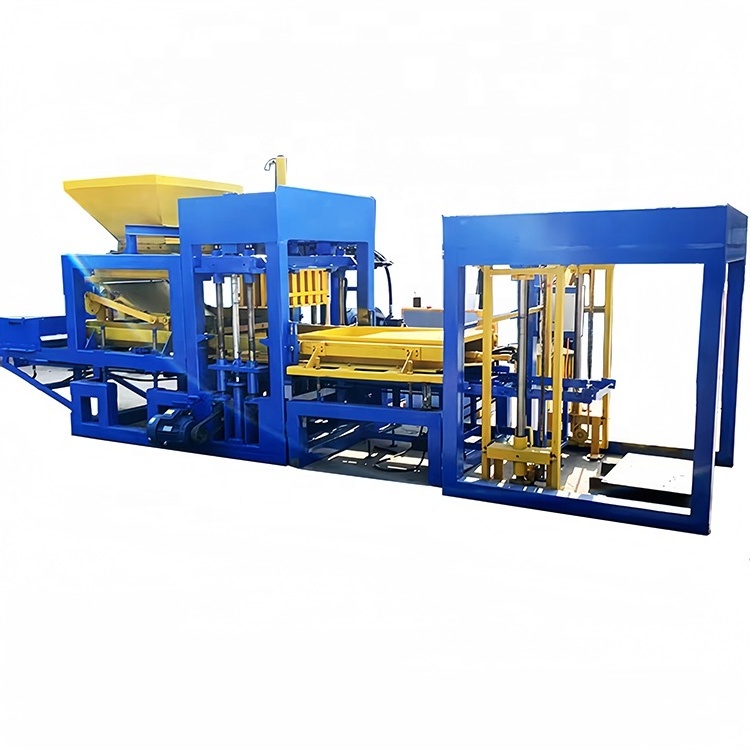

QT4-18 Automatic Block Making Machine Technical Parameters
|
|
|
||
|
1
|
Dimension of host machine
|
5870*2220*2850mm
|
||
|
2
|
Weight of host machine
|
4Tons
|
||
|
3
|
Molding area
|
850*550mm
|
||
|
4
|
Workshop area
|
200㎡
|
||
|
5
|
Host machine power
|
23.5KW
|
||
|
6
|
Vibration force
|
45-55KN
|
||
|
7
|
Pallet size
|
850*550*20mm
|
||
|
8
|
Voltage
|
220/380/415/440V(Customized)
|
||
|
9
|
Molding period
|
20 Seconds
|
||
|
10
|
Vibration method
|
Hydraulic+Platform Vibration
|
||
|
11
|
Vibration frequency
|
2800- 4500 Times/Minute
|
||
Concrete mixer
(1)Model: SY-4 stacker
(2)Power: 1.5KW
(3)Mobile pallet stack
(4)Suitable for hollow block and pavers
(5)Weight: 350KGS
