Quick Details
-
Output Speed:
-
0-3000
-
Place of Origin:
-
Shanghai, China
Quick Details
-
Gearing Arrangement:
-
Planetary
-
Output Torque:
-
37-54
-
Input Speed:
-
5000-10000
-
Output Speed:
-
0-3000
-
Place of Origin:
-
Shanghai, China
PHF Series Gear Box Internal Structure Diagram

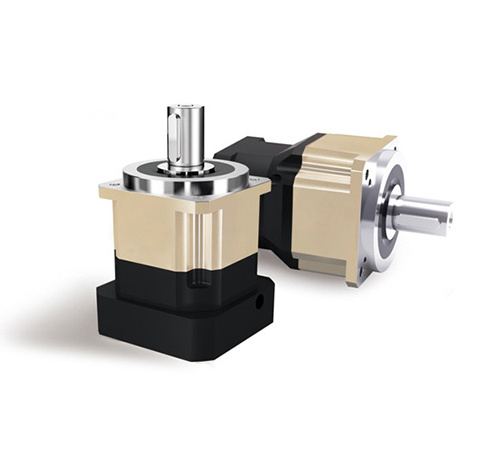

PHF60 series detailed parameters of planetary gearbox:
Reduction ratio : 3-100
Rated output torque :37 -54NM
Maximum Output Torque : 1.5 times rated torque
Rated input speed : 5000RPM
Maximum input speed : 10000RPM
Backspace : ≤ 2-8 Arcmin
Average service life : 20000h
Full-load transmission efficiency : ≥ 97%
Use temperature range : -10~+90 ℃(Customizable lower or higher temperatures)
Lubricating grease : Total synthetic grease
Noise value : ≤58 dB
Protection level : IP65
Weight :1.3 -2.0KG
PHF60 Dimension Diagram
PHF60 1 STAGE(ratio:3-10)
PHF60 2 STAGE(ratio:15-100)
PHF Series Performance Table
