Quick Details
-
Warranty:
-
12months
-
Brand Name:
-
Glory Solar
-
Model Number:
-
GSP272400-20W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
166*166mm
-
Solar cell:
-
High Efficiency
-
Max Power:
-
20W
-
Conversion Rate:
-
22.5%
-
size:
-
272*400*2.5mm
-
Vm:
-
3.3V
-
Imp:
-
6A
-
Voc:
-
3.9V
-
Isc:
-
6.6A
-
Customized:
-
Available
-
Certificate:
-
CE,ROHS
Quick Details
-
Cell size:
-
166mmx166mm
-
Type:
-
Flexible
-
Panel Efficiency:
-
22%
-
Warranty:
-
12months
-
Brand Name:
-
Glory Solar
-
Model Number:
-
GSP272400-20W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
166*166mm
-
Solar cell:
-
High Efficiency
-
Max Power:
-
20W
-
Conversion Rate:
-
22.5%
-
size:
-
272*400*2.5mm
-
Vm:
-
3.3V
-
Imp:
-
6A
-
Voc:
-
3.9V
-
Isc:
-
6.6A
-
Customized:
-
Available
-
Certificate:
-
CE,ROHS

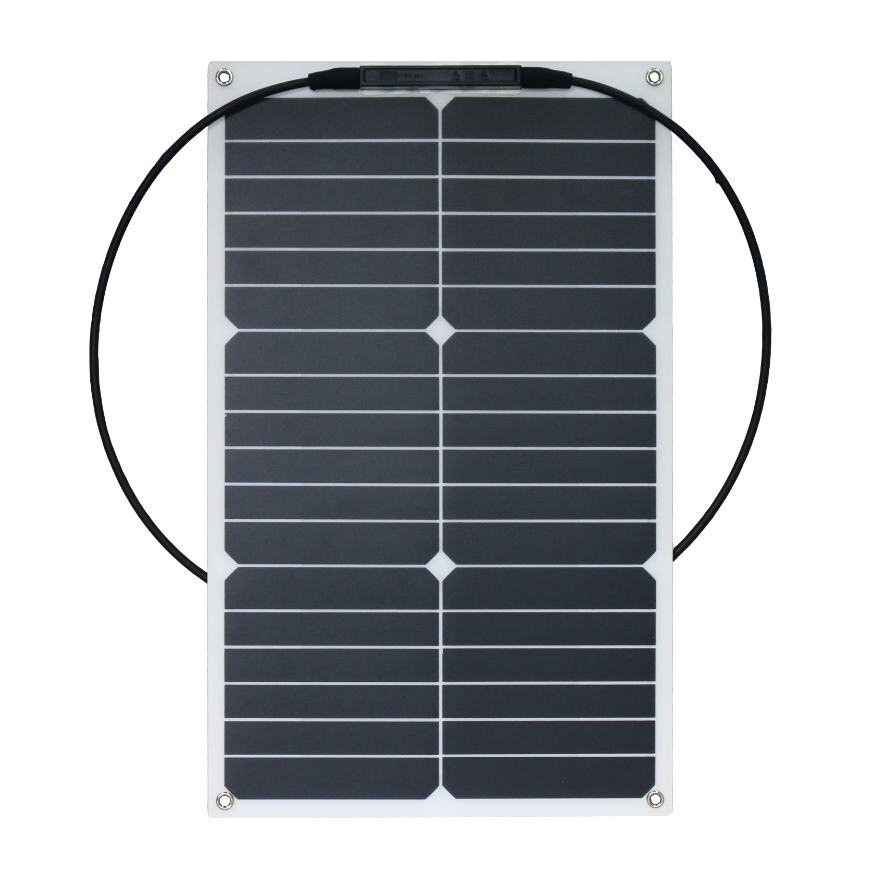

High Efficiency 20W Semi Flexible Solar Panel For Camping RV Caravan Accessory China
|
Specifications – Flexible series |
|
||||||
|
Item No. |
GSS-18W |
GSS - 5 0W |
GSS -1 0 0W |
GSS-150W |
GSS-200W |
||
|
Max power |
18 W |
5 0W |
100 W |
15 0W |
200W |
||
|
Power tolerance |
±3% |
±3% |
±3% |
±3% |
±3% |
||
|
Cells brand |
|||||||
|
Cells efficiency(%) |
22 .5 % |
22 .5 % |
22 .5 % |
22 .5 % |
22 .5 % |
||
|
M ax voltage |
1 9.8V |
18V |
18V |
18 V |
18V |
||
|
Max current |
0.9A |
2.78 A |
5. 56 A |
8.34 A |
11.2 A |
||
|
Open circuit voltage(Voc) |
23.7V |
21.6V |
21.6V |
21.6V |
21.6V |
||
|
Short-circuit current(Isc) |
1.05A |
3.23A |
6.45A |
9.66A |
1 2.89A |
||
|
Dimension |
445x280x2.0mm |
555x540x2.0mm |
1050*540*2.0mm |
1080x780x2.0mm |
1515*675*2mm |
||
|
Weight |
0.4KGS |
1KGS |
1.95KGS |
2.95KGS |
3 .95KGS |
||
|
Operating Temperature( ℃ ): |
-40 ℃ ~+85 ℃ |
||||||
|
Power temperature coefficient |
-0.39 to -0.29 %/ ℃ |
||||||
|
Voltage temperature coefficient |
-0.29%/ ℃ |
||||||
