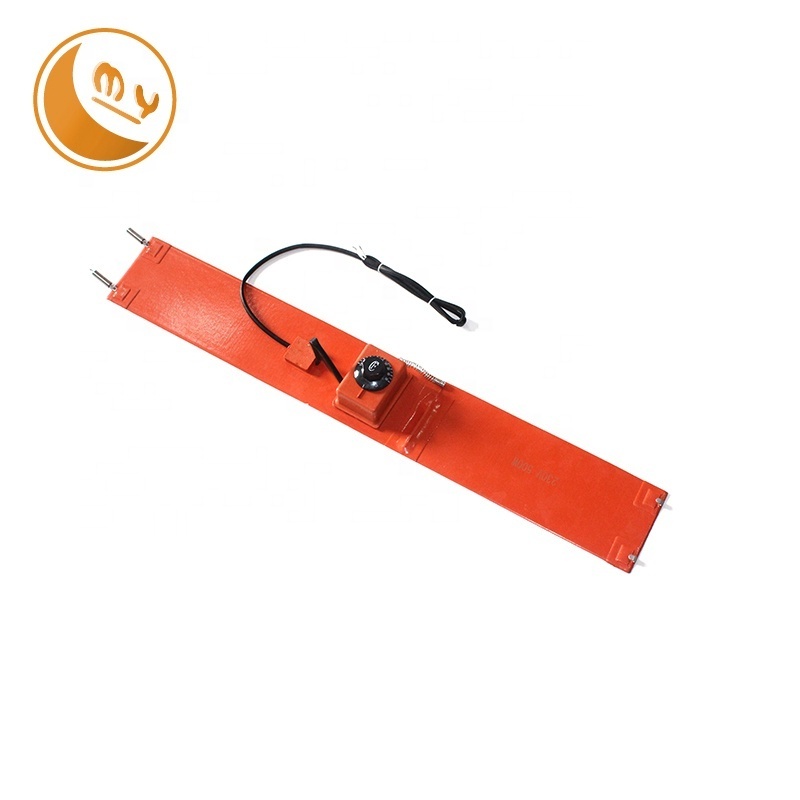

Name: Drum Heater
Features: Control temperature directly by temperature by m ber heaters .
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MY
-
Dimension(L*W*H):
-
Custom size
-
Weight:
-
1 KG
-
Working Temperature Range:
-
1 - 200 ℃
-
Core Components:
-
heating wire
-
Application:
-
Heaters parts
-
Shape:
-
Flexiable
-
MOQ:
-
1 Piece
-
Color:
-
Orange Or Black
-
Size:
-
Support Customized
-
Thickness:
-
1.5mm(standard)
-
Usage:
-
Heat
-
Temperature:
-
0 C-200
-
Brand:
-
MY
Quick Details
-
Type:
-
Band Heater
-
Power Source:
-
Electric
-
Voltage:
-
1.5v-480v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MY
-
Dimension(L*W*H):
-
Custom size
-
Weight:
-
1 KG
-
Working Temperature Range:
-
1 - 200 ℃
-
Core Components:
-
heating wire
-
Application:
-
Heaters parts
-
Shape:
-
Flexiable
-
MOQ:
-
1 Piece
-
Color:
-
Orange Or Black
-
Size:
-
Support Customized
-
Thickness:
-
1.5mm(standard)
-
Usage:
-
Heat
-
Temperature:
-
0 C-200
-
Brand:
-
MY
Product Description
Silicone rubber heater is made of nickel chrome alloy resistance wire and glass fiber cloth with silicone rubber coated as insulating layer .It is very flexible and its standard thickness is 1.5mm .It carn be attached to the heated object closely and transfer the heat to anywhere you need .
Application of silicone rubbber heaters :
Drum and tubes' heat preservation ;oil drum and pumps' anti-freeze ;motor and electric generators' anti- moisture ;paper ,plastics' hot slice ,pelleters ,tabletting machines ,binder harden ,food vending machines , insulation board dental machines ,beauty machiines,hospital check desks mobile food cars ,physical and chemical equipments ,hot plates ,Measuring equirements' anti-freeze and thermal insulation in cold regions ;metal welding preheat ,shrinkable tubes' heat,Pot antennas' anti-freeze ;
|
SPECIFICATIONS
|
|
|
|
|||
|
Temperature
|
Heat resistance temp.
|
C
|
0-250
|
|||
|
|
Continuous use
|
C
|
200
|
|||
|
|
Max. temp.
|
C
|
250
|
|||
|
Power characteristics
|
Capacity tolerance
|
%
|
10
|
|||
|
|
Insulation resistance
|
DC
|
500
|
|||
|
|
Withstand voltage
|
v/min
|
1500
|
|||
|
Measurements
|
Max
|
mm
|
800*3000
|
|||
|
|
Min
|
mm
|
25*50
|
|||
|
|
Thickness
|
mm
|
1.5
|
|||
Main Features
• It is made of two glass fiber cloth which is pressed silicone rubber added.
• It has excellent heat conductivity because of the thin thickness.
• It is flexible and can be closely wound on the curved and cylindrical heated object.
• Normal heating element is mainly of carbon element, while silicone rubber heater is of nickel chrome resistance wire ,so It is safe to be used
• The shape can be customized.
• Special manufacturing method! Even only one piece, can be completed in a short time.
• It is thin and flexible so also light and small.
• It can be easily attach to heated objects.
Productive process
Related Products
Our Service
1.All silicone rubber heaters one year warranty and all goods on appro for 3 months .
2.Fast delivery and competitive price.
3.We offer a free help to you for an ideal thermal heating solution conform with your application.
4.Custom made size,shape and voltage&wattage.
Our Company
Company introduction :
Jiangyin Mengyou Electric Heating Appliances Co , Ltd is located in Qingyang Town , a geometrical center of the famous Soochow , Wuxi ,Changzhou , West of Nangjing , east of Shanghai and Xicheng Expressway .With superior geographical location and convenient transportation , it becomes an ideal developmemt base for light industry .
Our company was established in 2005 , it is a company which specializes in designing , producing , selling ,and installing kinds of flexible electric heaters . Our company has high quality staff with extensive experience in designing and manufacturing .It sticks to the principle of the people first and carries out the strict management system .Innovative and flexible marketing methods to enable the enterprise to entered the fast track of healthy development .
Our products have a significant impact on military , chemical , power , medicine and other departments in our country and many products have made up the domestic blanks . At present our products have been exported to many western countries .
Certifications
Packing And Delivery
FAQ
1. How much is the silicone heater?
The price determined by the size.
2. Why is the silicone heater so cheap?
You are ordering directly from the factory.
3.How can I get some samples?
We are honored to offer you samples .
4.What type of payment do you have available?
TT and L/C are accepted.
West Union, PayPal and Money gram are available.
5.What is the lead time?
Sample is only for 1-3 days,if the mass prodction,we can discuss on your requirement.
6.Where is your factory located? How can I visit there?
Our factory is located in Jiangyin City, Jiangsu Province, China .
It takes 40 minutes by high speed rail from Shanghai .Warmly welcome to visit us freely.
