Quick Details
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Midea
-
Model Number:
-
VC MAX
-
COP:
-
Vrf Air Conditioners
-
Power (W):
-
22400-255000
-
Voltage (V):
-
380~415V
-
Maximum Airflow Rate:
-
12600-66000m³/h
-
Featured Function:
-
-15 to 55
-
Recommended Room Size（square feet）:
-
Vrf Air Conditioners
-
Product name:
-
Midea cooling only air conditioning
-
Power supply:
-
380-415/3/50(60)
-
Cooling capacity(Btu):
-
869700Btu
-
Cooling capacity:
-
22.4-255KW
-
Airflow rate:
-
11000-13000
-
Sound pressure level:
-
57-69dB(A)
-
Fan motors type:
-
DC
-
Compressor type:
-
DC inverter
-
Refrigerant type:
-
R410A
Quick Details
-
Warranty:
-
3 years
-
Type:
-
Central Air Conditioners
-
Application:
-
Hotel, Outdoor, Garage, Commercial, Household, Churches, Airports, Food Industry, Textile Factory, Food Stores, Motor Factory, supermarket, school, hospital, dormitory, warehouse
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Midea
-
Model Number:
-
VC MAX
-
COP:
-
Vrf Air Conditioners
-
Power (W):
-
22400-255000
-
Voltage (V):
-
380~415V
-
Maximum Airflow Rate:
-
12600-66000m³/h
-
Featured Function:
-
-15 to 55
-
Recommended Room Size（square feet）:
-
Vrf Air Conditioners
-
Product name:
-
Midea cooling only air conditioning
-
Power supply:
-
380-415/3/50(60)
-
Cooling capacity(Btu):
-
869700Btu
-
Cooling capacity:
-
22.4-255KW
-
Airflow rate:
-
11000-13000
-
Sound pressure level:
-
57-69dB(A)
-
Fan motors type:
-
DC
-
Compressor type:
-
DC inverter
-
Refrigerant type:
-
R410A
Why Choose Us

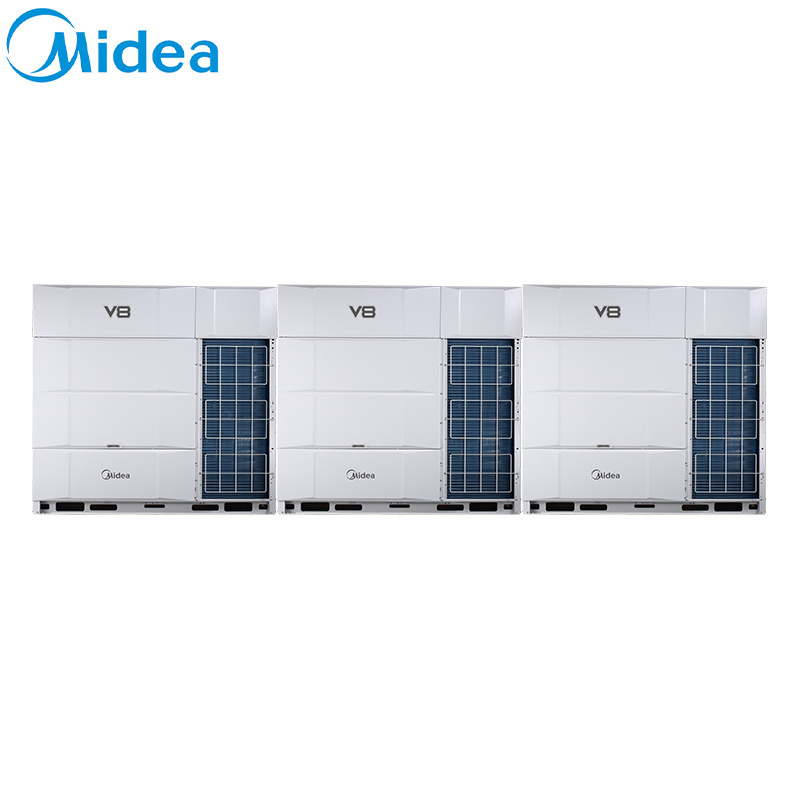

Outdoor Unit Lineup
VC MAX (Combinable series)
|
Specifications
|
|
|
|
|
||||
|
Heat Pump
|
|
|
|
|
||||
|
Product name
|
|
Midea VC vrv air conditioner price 5 ton air conditioner
compressor for Schools
|
|
|
||||
|
Power Supply
|
|
318-415V 3N 50HZ 7.5RT-30RT
|
|
|
||||
|
Cooling
|
Capacity
|
26KW-98KW
|
89,000-335,000Btu/h
|
|
||||
|
Heating
|
Capacity
|
30KW-111.5KW
|
103,000-380,000Btu/h
|
|
||||
|
Air Flow
|
Indoor side
|
CFM
|
2830-11200
|
|
||||
|
External static pressure
|
Pa
|
Default: 80;0-250
|
Default: 270;25-400
|
|
||||
|
Compressor
|
Type/Quantity
|
Scroll 1/2
|
Brand:Danfoss/Hitachi/Copeland
|
|
||||
|
Wired Controller
|
KJR-25B
|
KJR-12B/dp(T)-E
|
|
|
||||
|
Centralized controller (Optional)
|
YES
|
|
|
|
||||
|
Indoor Fan
|
Type
|
Centrifugal/Direct
|
|
|
||||
|
Outdoor Fan
|
Type
|
Axial/Direct
|
|
|
||||
|
Sound Pressure level
|
dB(A)
|
72.1-77.9
|
|
|
||||
|
Ambient temperature
|
Cooling
|
10~46
|
|
|
||||
|
|
Heating
|
-9~-24
|
|
|
||||
|
Refrigerant
|
Type
|
R410A
|
|
|
||||
|
Dimension
|
Net(W*H*D)
|
1475*840*1130~2320*1245*2220
|
|
|
||||
|
|
Packing(W*H*D)
|
1495*870*1150~2330*1275*2230
|
|
|
||||
|
Weight
|
Net/Gross(KG)
|
343/354~970/1000
|
|
|
||||
HyperLink new & unique
Midea's original communication bus chip greatly simplifies installation and saves installation costs.
HyperLink communication technology supports any wiring pattern rather than just daisy chain connection, reducing installation costs and the possibility of an incorrect connection. It has stronger anti-interference ability, achieving a communication distance of up to 2000m.
Arbitrary Topology Communication
In addition to the traditional daisy chain connection, the communication wire supports tree connection, star connection,
ring connection and so on. The wring is flexible, which greatly reduces installation costs and has no possibility of wrong
connection on site.
ring connection and so on. The wring is flexible, which greatly reduces installation costs and has no possibility of wrong
connection on site.
Super Anti-interference Capability
Special waveform restoration technology enhances anti-interference performance for more stable communication.
Flexible Power Supply for Indoor Units
HyerLink 's unique communication method allows the indoor units to be powered not only by a uniform power supply, but also by individual and zone power supplies, making it particularly suitable for each shop in a large complex building, which can independently
power on and off its own indoor units.
power on and off its own indoor units.
Shield Box New & Unique
IP55 fully enclosed electric control box provides all-round protection for internal electronic
components, greatly improving system RELIABILITY.
components, greatly improving system RELIABILITY.
Fully enclosed electronic components are isolated from the external environment to protect against corrosion, sand, humidity, snowstorms and other harsh conditions, and prevent small animals and insects from entering the chamber. This protects internal electronic devices and improves the overall environmental tolerance.
All Microchannel Refrigerant Cooling
All electronic components including inverter
module, filter module and power module are cooled by specially designed microchannel refrigerant to ensure that the electronic components work in the best temperature range.
Built-in Circulating Fan
The built-in circulating fan accelerates the air flow inside the chamber, and the heat exchange is more sufficient to ensure the consistent ambient temperature inside the chamber.
5 High Precision Temperature Sensors
5 high precision temperature sensors are used to accurately monitor the operation state of electronic control under various conditions to ensure that the internal temperature of the chamber is always kept within a stable range.
SuperSense New & Unique
The status of the refrigerant can be determined throughout the process, ensuring high
RELIABILITY
and
COMFORT
.
Up to 17 sensors are distributed throughout the refrigerant system, and the status of the refrigerant can be determined throughout the process, ensuring stable operation. At the same time, combined with the digital twin technology of the refrigerant system, a virtual sensor can be created in the event of a physical sensor failure, so that the system does not shut down in the event of a sensor failure, ensuring comfort.
Complete Sensors
The VC MAS Series VRF is equipped with up to 17 condition monitoring sensors, combined with built-in data models of compressors, heat exchangers and throttling components, which can analyze the operation data in real time and monitor the refrigerant condition of the system.
Refrigerant Amount Diagnosis
Thanks to the complete sensors, the refrigerant running state is clearly visible, so as to accurately diagnose the amount of refrigerant.
Virtual Sensor Backup
In the event of a sensor failure, other sensors
can automatically simulate a virtual backup
sensor, so that the VRF system can continue to operate without stopping.
can automatically simulate a virtual backup
sensor, so that the VRF system can continue to operate without stopping.
Midea ETA (META) 2.0
META is the abbreviation of Midea Evaporating Temperature Alteration. Further upgraded META technology to maximize
ENERGY SAVING
.
Built-in professional operation and maintenance algorithm, so that the annual operation energy
efficiency of each set of systems is increased by more than 28% .
efficiency of each set of systems is increased by more than 28% .
|
Multi-Accessories
|
|
|
||
|
Description
|
Standard Accessories
|
Optional Accessories
|
||
|
Filter
|
|
YES
|
||
|
Outlet drainage
|
YES
|
|
||
|
Snap ring
|
YES
|
|
||
|
Drainage pipe
|
YES
|
|
||
|
Anti-corrosion fin
|
|
YES
|
||
|
EHK(Electric Heater Kits)
|
|
YES
|
||
|
Network interface module
|
|
YES
|
||
|
Three-phase protector
|
|
YES
|
||
Certifications
IECEE CB Scheme
Eurovent
certification
CE Certification
Nigeria PC Certification
Midea VRF is a powerful system for your next HVAC project if you are looking for cost effective solutions.
Midea HVAC provides one-stop service, including VRF drawing design, model selection, installation material calculation, start up guidance etc, equipment, supplying installation material and other parts directly for your project which makes your VRF projects easier.
12v air conditioner
How to get a quick quotation?
Information needed by Midea Group’s management system before prepare quotation details for you.
1.Project Drawing, building layout, equipment BOQ.
solar powered air conditioner
2.Project name: building name or building type, such as xxx office project, residential house project etc.
3.Expected shipping date of this project.
metal air conditioner cover
4.Project type: tender or self-owned.
