Light Weight EPS Sandwich Panel For Prefab Houses

Light Weight EPS Sandwich Panel For Prefab Houses

FOB Reference Price: Get Latest Price

≥190 Square meters

US $9.6

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: TR01

Normal Specification:: 2440*610*(50-180)mm

Surface Panel:: Calcium Silicon Board or Fiber Cement Board

Core Material:: EPS ,ceramic, perlite ,cement

Fire Proof:: 4 hours

Heat Insulation:: Excellent

Usage:: Interior ,exterior,roof,floor

Sound insulation:: 46dB

Feature:: 100% non asbestos

Certificate:: CE, ISO9001

Product name:: Light Weight EPS Sandwich Panel For Prefab Houses

Quick Details

Type:: EPS Sandwich Panels

Place of Origin:: China

Brand Name:: TRUSUS OR OEM

Model Number:: TR01

Normal Specification:: 2440*610*(50-180)mm

Surface Panel:: Calcium Silicon Board or Fiber Cement Board

Core Material:: EPS ,ceramic, perlite ,cement

Fire Proof:: 4 hours

Heat Insulation:: Excellent

Usage:: Interior ,exterior,roof,floor

Sound insulation:: 46dB

Feature:: 100% non asbestos

Certificate:: CE, ISO9001

Product name:: Light Weight EPS Sandwich Panel For Prefab Houses

Product Description

Are you still working in dirty and wet construction site, moving many heavy machines to the site? Are you still waiting for more than half a year before you can move inside to your new house? Are you still paying high salary to the workers and still unhappy about the final work? Are you still...?

You are so lucky to be here and get to know the best substitute to traditional concrete wall, it is called light weight EPS sandwich panel . Comparison with other wall materials, this one is more stronger and longer life span with many advantages and wide usages.

Firstly, let me tell you the what exactly is it and its structure.

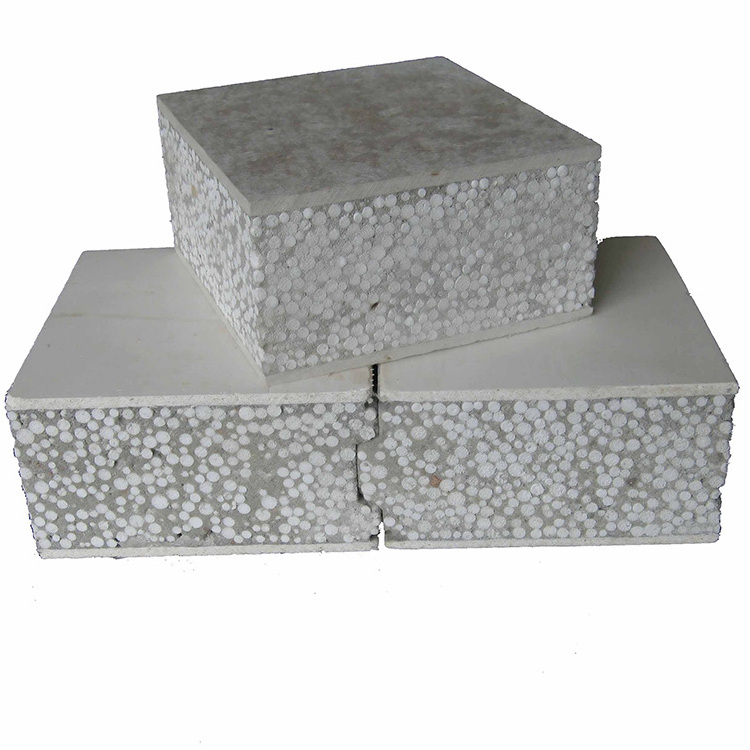

TRUSUS EPS (Expanded polystyrene board) wall Panel is composed of exterior panels and interior core filling, to form a non-load-bearing light-weight composite wall panel. The exterior panels on both sides are 5mm calcium silicate board, and the middle core is filled with polystyrene beads & cement or ceramsite, polystyrene beads & cement.

TYPES:

Light weight EPS sandwich panel (with face board and without face board)
Ceramiste sandwich wall panel (with face board and without face board)
Perlite sandwich wall panel (with face board and without face board)

Main Features

1) Energy-saving, lightweight, and environmental protection

2) Plystyrene granule in Vanjoin board has good heat-insulation effect and heat lost ratio is far below the other brick wall building

3) Energy-saving effects of the building is greatly improved

4) Raw materials do not include harmful substances

5) Environmental products, it is highly recommended by the government

6) Capacity: 650kg/m3, just one sixth of the brick building

7) Comparison of inner wall panel 75 and 120mm it will increase 12m practical area, for 100m2 house, it will increase 4.16m2

8) Waterproof and damp resistant

9) With fireproof feature

Application

Interior wall, exterior wall,roof and floor on steel or concrete structure. For various buildings, additions or renovations.

Floor

Exterior wall

Drywall for piping shaft, fire well, machine room

Interior wall

Specification

Thickness(mm)	60mm	75mm	90mm	100mm	120mm	125mm	150mm
Length(mm)	2440mm
Width(mm)	610mm
Density（kg/m2）	48±5	55±5	60±5	65±5	72±5	75±5	88±5
Fire endurance (h)	1	2	3	3	4	4	4
Can be customized according to the needs of users processing.

TECHNICAL DATA FOR LIGHT WEIGHT EPS SANDWICH PANEL:

Item	60mm	75mm	90mm	100mm	120mm	125mm	150mm
Anti-impact Capacity/times	≥5	≥5	≥5	≥5	≥5	≥5	≥5
Anti-Bending damage load/times over deadweight	≥1.5	≥1.5	≥1.5	≥1.5	≥1.5	≥1.5	≥1.5
Compressive strength/Mpa	≥3.5	≥3.5	≥3.5	≥3.5	≥3.5	≥3.5	≥3.5
Softening coefficient	≥0.8	≥0.8	≥0.8	≥0.8	≥0.8	≥0.8	≥0.8
Surface density（kg/m2）	≤70	≤70	≤90	≤90	≤110	≤110	≤110
Moisture rate (%)	≤12/10/8
Drying shrinkage value（mm/m）	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6
Hang force（N）	≥1000	≥1000	≥1000	≥1000	≥1000	≥1000	≥1000
Sound insulation capacity in the air（dB）	≥30	≥30	≥35	≥35	≥40	≥40	≥40
Fire endurance (h)	≥1	≥1	≥1	≥1	≥1	≥1	≥1
Heat transfer coefficient（w/m2.k）	_	_	_	_	≤2.0	≤2.0	≤2.0
Inner radiation index	≤1	≤1	≤1	≤1	≤1	≤1	≤1
Outer radiation index	≤1	≤1	≤1	≤1	≤1	≤1	≤1
Frost resistance(shall show no visible cracks and surface without change)	_	_	shall show no visible cracks and surface without change
The combustion properties of （A1 / A2）	_	_	A1 or A2

Certifications

Packing & Delivery

SHIPPING TIME: 10-30 working days after receiving your advance payment

Construstion Process

Attended Fairs

Our Company

TRUSUS CO., LIMITED is an 'AUDITED SUPPLIER' presented by SGS, which is approved by ISO certification and CE mark, and it is a large enterprise with 6 factories in China, and integrates research & development, production and sales. It covers an area of approximate 140, 000sqm. Has a great number of professional and advanced production technology and equipment.

So far, we have exported to more than 80 countries and regions with our high quality and best service. With the trust and support from our business partners, TRUSUS TEAM has been working hard with advanced technology and new equipments for better serving customers, We also would like to sincerely cooperate with the partners in a win-win way. Last but not least, TRUSUS TEAM is striving toward to a global brand of 'TRUSUS'.
Welcome to TRUSUS! Trust us from heart cooperation!

Our Service

FAQ

1) Q: What is the minimum order?
A: One 20' container for every size, but if you need two or three standard design for one container, we will try to meet you.

2) Q:What payment methods your company accept?
A:We accept most of the payment methods, but mainly accept T/T, L/C, Western Union, Paypal and MoneyGram.

3) Q:I haven't done business with you guys before, how can i trust your company?
A: We've been golden suppliers in Alibaba for 5 years, which concentrate on professional ceiling and drywall in 10 years, what's more, we've got quite a lot authority certificates, for example, CE, ISO9001, SGS, Alibaba onsite check certificate. I hope those above will be persuasive enough.Our Trade Assurance Limit is US $30,000, and it is still going up.

4) Q:what's the delivery time of your company?
A:Well, they depends on the quantity of your order. Normally it need 10-30 working days after receiving your advance payment, for special time, delivery time will be longer.

5) Q:Do you give any discount ?
A:I'll surely try my best to help you get those by the best price and good service at the same time.
