Quick Details
-
Production Capacity:
-
75-95bag/min
-
Weight (KG):
-
500
-
Voltage:
-
220V,50/60Hz
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MINGYUAN
-
Dimension(L*W*H):
-
1750*740*1950mm
-
Model:
-

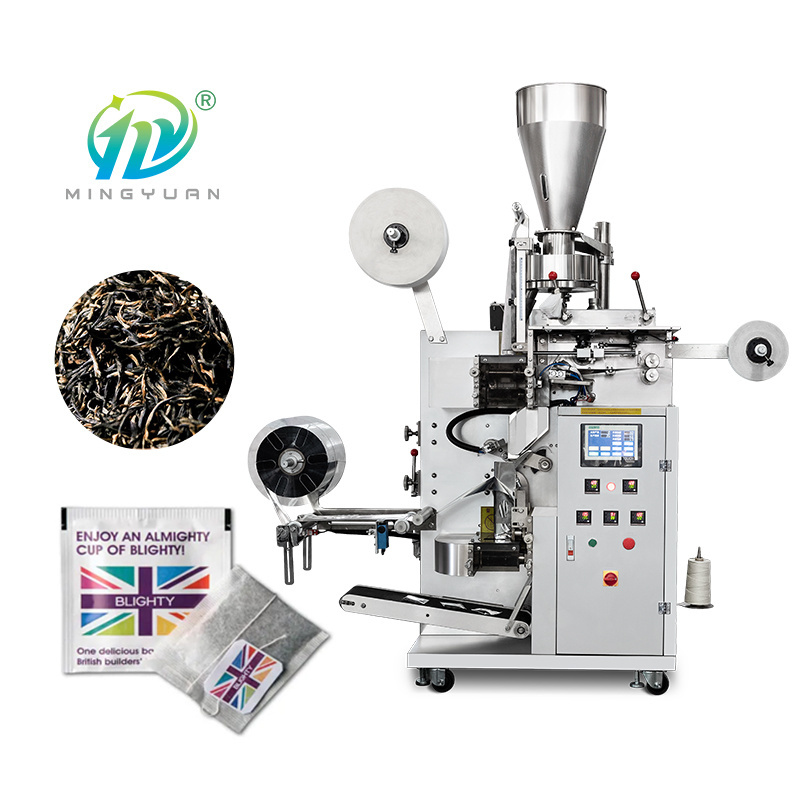

Flat Tea Bag with Label&Envelope Machine MY-169
-
Pack Range:
-
1-10g
-
InnerBag Length:
-
50-70mm
-
Inner Bag Width:
-
45-80mm
-
Outer Envelope Length:
-
80-120mm
-
Speed:
-
30-80Bags/min
-
Machine Dimension (L*W*H):
-
1750*740*1950mm
-
Machine Weight:
-
500kg
-
Power:
-
AC220V/50-60HZ/3KW
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, COATING, Sealing, counting
-
Packaging Type:
-
Bags, Pouch
-
Packaging Material:
-
Plastic, Paper, OPP/CPP/PE
-
Production Capacity:
-
75-95bag/min
-
Weight (KG):
-
500
-
Voltage:
-
220V,50/60Hz
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MINGYUAN
-
Dimension(L*W*H):
-
1750*740*1950mm
-
Model:
-
Flat Tea Bag with Label&Envelope Machine MY-169
-
Pack Range:
-
1-10g
-
InnerBag Length:
-
50-70mm
-
Inner Bag Width:
-
45-80mm
-
Outer Envelope Length:
-
80-120mm
-
Speed:
-
30-80Bags/min
-
Machine Dimension (L*W*H):
-
1750*740*1950mm
-
Machine Weight:
-
500kg
-
Power:
-
AC220V/50-60HZ/3KW
Production Flow
Packing sample
tea raw material
inner packaging
outer packaging
Products Description
1. It can automatically complete
bag making, measuring, cutting, sealing, cutting, counting, and can be
configured to print batch numbers and other functions according to customer requirements.
2. Touch screen operation, PLC controller and color touch screen,
all parameters can be set on the control panel,
easy to operate, language can be switched
3.Packaging materials:
BOPP/Polyethylene,
Aluminium/
Polyethylene,
Paper/
Polyethylene
Polvester
/Aluminizer/Polvethvlene
|
Model
|
Flat Tea Bag with Label&Envelope Machine MY-169
|
|
|
Pack Range
|
1-10g
|
|
|
InnerBag Length
|
50-70mm
|
|
|
Inner Bag Width
|
45-80mm
|
|
|
Outer Envelope Length
|
80-120mm
|
|
|
Outer Envelope Width
|
75-95mm
|
|
|
Speed
|
30-80Bags/min
|
|
|
Machine Dimension (L*W*H)
|
1750*740*1950mm
|
|
|
Machine Weight
|
500kg
|
|
|
Power
|
AC220V/50-60HZ/3KW
|
|
|
Gas Source
|
≥0.6Mpa
|
|
|
Tea Bag Type
|
Flat Bag with Label and Thread
|
|
|
The Material of Inner Bag
|
BOPP/Polyethylene,Aluminium/Polyethylene，Paper/PolyethylenePolvester/Aluminizer/Polvethvlene
|
|
|
The Material of Outer Envelope
|
Filter Paper
|
|
|
Weighting Method
|
Measruing Cups
|
|
|
OEM(Show Client Company Name in Machine Panel)is welcome in our factory
|
|
|
Product details
All parts in contact with materials are made of foode grade 304stainless steel,easy to clean
2-head rotating hot cutter increases machine efficiencythe speed up to 80bags/min
robot hand
The inner bag is packed into the envelope and sealed by PLC control
Finished Conveyor Belt
Automatic delivery of finished products
optional part
RIBBON CODING MACHINE
The production date can be automatically printed after installation.
CURSOR POSITIONING
Precise cursor positioning for accurate cutting of bags with color patterns.
Company strength
FAQ
1.Make sample bags
If it’s necessary according to your requirements, we can make sample bags for your reference.
2.Free machine adjustment before shipment
Our technical team will adjust the machine based on customer's request and take video to send to our customer to show the running condition of the machine.
3.Free Training CD to ship with machine
Our technical team will provide a trainning CD to our customer in order to train how to use the machine.
4.Life Long after sale service
Our factory will provide life long service, in order to help our customer to solve any problem regarding to the machine, such as replacement part, technique questions, etc.
5.Warranty and after-sales service
One year warranty, 24 hours online technical service and solution can be offered.
2.Free machine adjustment before shipment
Our technical team will adjust the machine based on customer's request and take video to send to our customer to show the running condition of the machine.
3.Free Training CD to ship with machine
Our technical team will provide a trainning CD to our customer in order to train how to use the machine.
4.Life Long after sale service
Our factory will provide life long service, in order to help our customer to solve any problem regarding to the machine, such as replacement part, technique questions, etc.
5.Warranty and after-sales service
One year warranty, 24 hours online technical service and solution can be offered.
