* Large travel, high cutting speed.
* With 3° taper as standard attachment. Taper angles up to 15, 30°as option. Small wire diameters 0.12- 0.30mm (down to 0 .08mm).
* Accuracy: 0.015mm, even 0.01mm( middle speed) Roughness: Ra 1.0-2.5 µm.
* Low consumption, material saving.
* Advanced CAD/CAM equipment with file transfer and translation capabilities.
* High cutting speed modular is optional.
* Multi-cut control system can improve the accuracy and finish.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
1400*1200*1600
-
Weight (KG):
-
1600
-
Power (kW):
-
7.5
-
Product name:
-
cabinet cnc edm wire cut machine fast speed edm wire cutting machine
-
Worktable travel:
-
320*400mm
-
Max.cutting thickness:
-
450mm
-
Worktable size:
-
680*400mm
-
Max.loading capacity:
-
400kg
-
Cutting taper:
-
3/15/30/80
-
Machine precision:
-
<=0.01
-
Surface roughness:
-
<=2.5
-
Operator:
-
1
-
Operation:
-
auto
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
wadjay
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
1400*1200*1600
-
Weight (KG):
-
1600
-
Power (kW):
-
7.5
-
Product name:
-
cabinet cnc edm wire cut machine fast speed edm wire cutting machine
-
Worktable travel:
-
320*400mm
-
Max.cutting thickness:
-
450mm
-
Worktable size:
-
680*400mm
-
Max.loading capacity:
-
400kg
-
Cutting taper:
-
3/15/30/80
-
Machine precision:
-
<=0.01
-
Surface roughness:
-
<=2.5
-
Operator:
-
1
-
Operation:
-
auto
DESCRIPTION
Wire Cutting
EDM
Machines
Fast Speed High Accuracy CNC EDM Wire Cutting Machine Automatic With CE
Wire EDM is a method to cut conductive materials with a thin electrode that follows a programmed path. The electrode is a thin wire. Typical diameters range from 0.12mm - 0.30mm (0.004" - 0.012") . The hardness of the work piece material has no detrimental effect on the cutting speed. It is widely used in die making, heat treated material.
SPECIFICATION
Fast Speed High Accuracy CNC EDM Wire Cutting Machine Automatic With CE
|
Item
|
DK7732
|
DK7745
|
DK7763
|
DK7780
|
DK77100
|
||||
|
worktable travel mm
|
320*400
|
450*550
|
630*800
|
800*1000
|
1000*1200
|
||||
|
Max.cutting thickness mm
|
450
|
450
|
600/800
|
600/800
|
800/1000
|
||||
|
worktable dimension mm
|
680*400
|
820*560
|
1140*750
|
1350*985
|
1700*1170
|
||||
|
Max.load capacity kg
|
400
|
500
|
1000
|
2000
|
2200
|
||||
|
cutting taper mm
|
3,15,30/80
|
|
|
|
|
||||
|
machining precision mm
|
<=0.01
|
|
|
|
|
||||
|
surface roughness um
|
<=2.5
|
|
|
|
|
||||
|
machine size mm
|
1400*1200
|
1700*1400
|
2300*2200
|
2600*2400
|
3000*2800
|
||||
|
weight kg
|
1200
|
1700
|
3200
|
4500
|
6000
|
||||

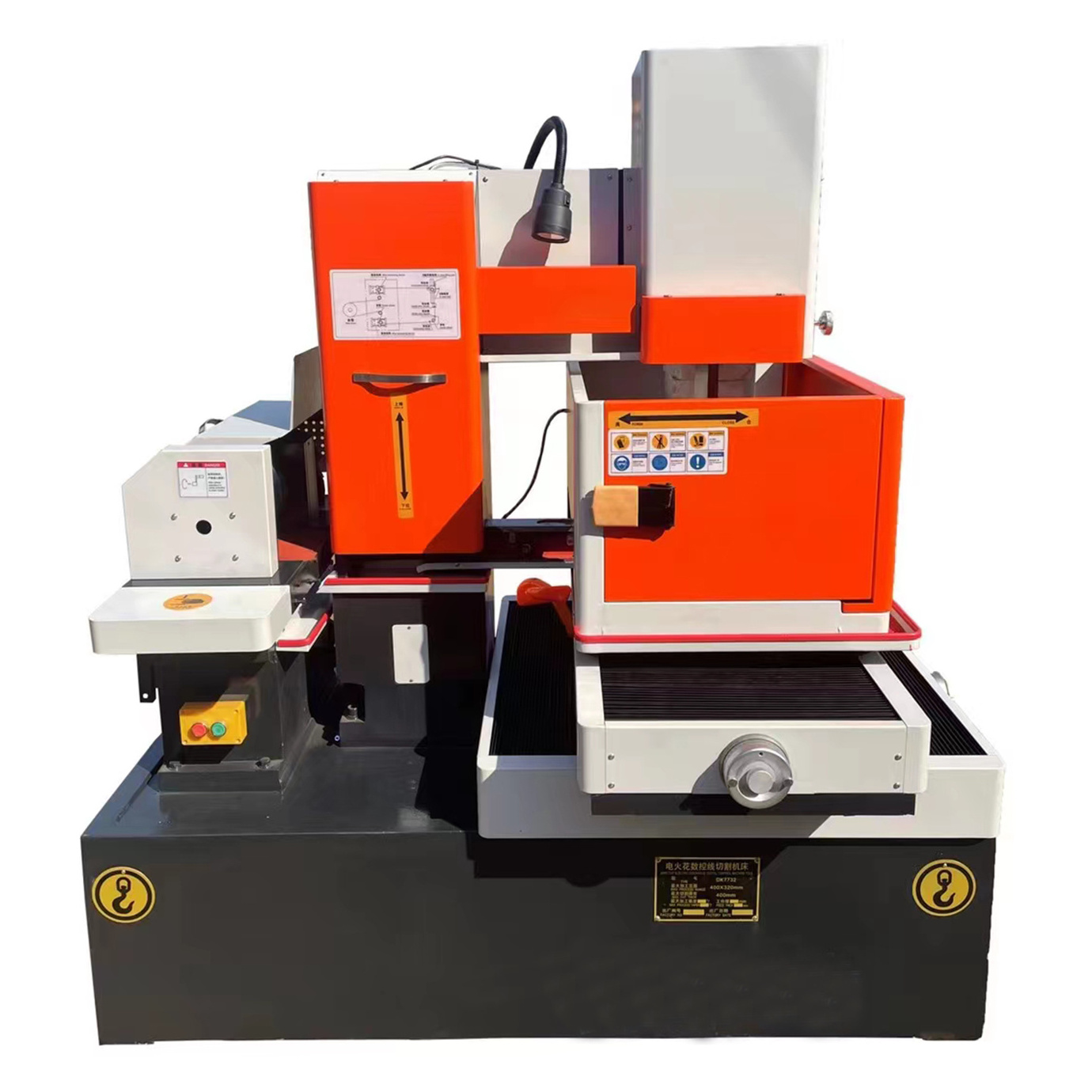

DETAIL IMAGES
Fast Speed High Accuracy CNC EDM Wire Cutting Machine Automatic With CE
PACKING & SHIPPING
Fast Speed High Accuracy CNC EDM Wire Cutting Machine Automatic With CE
1.Packing type:wooden case,also be packaged according to customer requirements.
2.We will send photos and videos for your reference before shipment.
