Quick Details
-
Brand Name:
-
FIBERTOP
-
Use:
-
40GBASE-LR4 Ethernet
-
Warranty Time:
-
3 years
-
Form Factor:
-
QSFP+
-
Max Data Rate:
-
40g/s
-
Wavelenth:
-
1310nm CWDM4
-
Max Cable Distance:
-
10km
-
Fiber Type:
-
SMF
-
Optical Components:
-
DFB+PIN
-
Connector:
-
Double LC
-
Temperature Range:
-
Operating: 0°C to 70°C Storage: -40°C to 85°C
-
Certification:
-
CE/FCC/RoHS/ISO9001
-
Power supply:
-
3.3v
Quick Details
-
Type:
-
Fiber Optic Transceivers
-
Model Number:
-
QFP-CW31FG-10DC-K3
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FIBERTOP
-
Use:
-
40GBASE-LR4 Ethernet
-
Warranty Time:
-
3 years
-
Form Factor:
-
QSFP+
-
Max Data Rate:
-
40g/s
-
Wavelenth:
-
1310nm CWDM4
-
Max Cable Distance:
-
10km
-
Fiber Type:
-
SMF
-
Optical Components:
-
DFB+PIN
-
Connector:
-
Double LC
-
Temperature Range:
-
Operating: 0°C to 70°C Storage: -40°C to 85°C
-
Certification:
-
CE/FCC/RoHS/ISO9001
-
Power supply:
-
3.3v
Automated Production Process
√
20+ Years Experience as Expert of Optical Transceivers
√
Pursue Excellence,Create Quality
√
Outstanding Product Performance
Product Details
Features
* Transmission data rate up to 11.3Gbps per channel
* SMF LC duplex connector
* Hot Pluggable QSFP+form factor
* 1310nm DFBlaser and PIN photodiode ,Up to 10km transmission
* Compatible with RoHS
* Single +3.3V power supply
* Real Time Digital Diagnostic Monitoring
Operating case temperature: 0 to +70°C
Compatibility detection
Each module is 100% tested on the host equipment of the laboratory to ensure compatibility. The following are some of our network test equipment. With the expansion and combination of products, the equipment will be updated in real time.
Specification
|
Compatible OEM Part Number
|
/
|
FIBERTOP Part Number
|
QFP-CW31FG-10DC
|
|
Form Factor
|
QSFP+
|
Data Rate
|
40g /s
|
|
Wavelength
|
1310nm CWDM4
|
Fiber Type
|
SMF
|
|
Max Distance
|
10KM
|
Optical Components
|
DFB+PIN
|
|
Transmitter Power
|
- 7~ 2.3 dBm
|
Extinction ratio
|
> 3.5dB
|
|
Receiver Sensitivity
|
< -13.7dBm
|
Receiver Overload
|
>3.3dBm
|
|
Connector
|
Double LC
|
Digital Diagnostic Monitoring
|
Yes
|
|
Environment
|
Operating: 0°C to 70°C
Storage: -40°C to 85°C |
Weight
|
0.03 kg
|
|
|
40GBASE-LR4 Ethernet
Switch, router and HBAs Data Center Interconnect Infiniband QDR 40G Campus Link |
|
IEC/EN 61000-4-2,
IEC-60825
RoHS |
COMPATIBILITY
|
FIBERTOP
|
CISCO
|
Juniper
|
Arista
|
Brocade
|
HPE
|
H3C
|
HW
|
DELL
|
|
QFP-MM85FG-S1DC
|
QSFP-40G-SR4
|
QSFPP-40GBASE-SR4
|
QSFP-40G-SR4
|
40G-QSFP-SR4
|
JG325A
|
QSFP-40G-SR4-MM850
|
QSFP-40G-SR4
|
430-4593
|
|
QFP-MM85FG-S3DC
|
QSFP-40G-SR-BD
|
JNP-QSFPP-40G-BXSR
|
/
|
/
|
/
|
/
|
QSFP-40G-SR-BD
|
/
|
|
QFP-CW31FG-02DC
|
QSFP-40G-UNIV
|
JNP-QSFP-40G-LX4
|
QSFP-40G-LRL4
|
40G-QSFP-LR4L
|
JL286A
|
QSFP-40G-LR4L-WDM1300
|
QSFP-40G-UNIV
|
407-BBRC
|
|
QFP-CW31FG-10DC
|
QSFP-40GE-LR4
|
QSFPP-40GBASE-LR4
|
QSFP-40G-LR4
|
40G-QSFP-LR4
|
JG661A
|
QSFP-40G-LR4-WDM1300
|
QSFP-40G-LR4
|
430-4917
|
|
QFP-CW31FG-40DC
|
QSFP-40G-ER4
|
QSFP-40G-ER4
|
QSFP-40G-ER4
|
40G-QSFP-ER4
|
JL306A
|
QSFP-40G-ER4-SM1310
|
QSFP-40G-ER4
|
430-4917-40
|

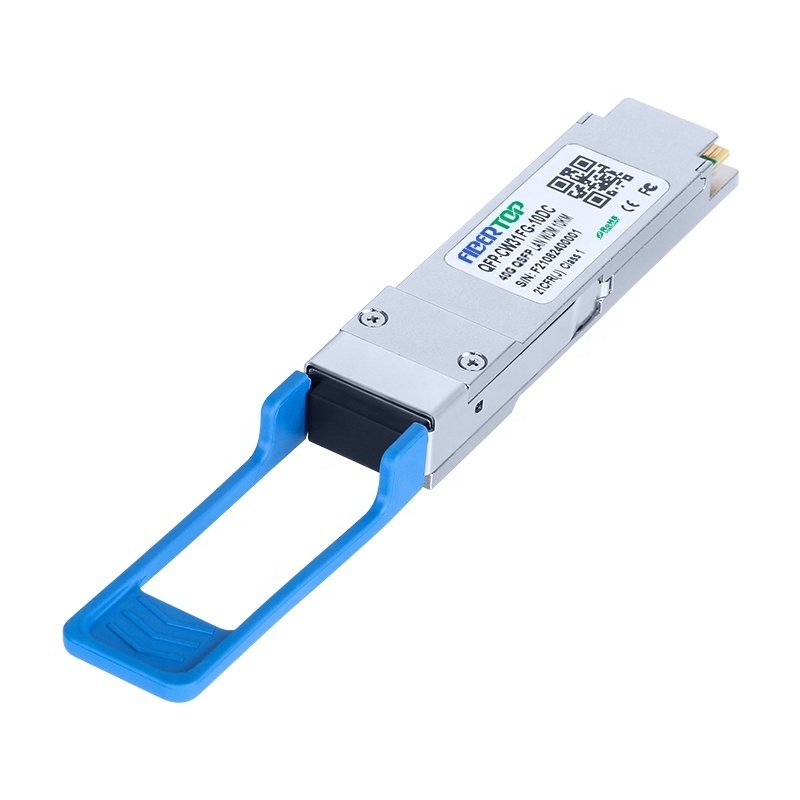

40GBASE-LR4 QSFP+ Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
The QSFP+ LR4 transceivers are high performance, cost effective modules supporting data rate of 40Gbps and 10km transmission distance with SMF.
The transceiver consists of three sections: 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission; on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data; and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with 40GBASE-LR4 of IEEE802.3ba standard and SFF-8436 specification.
The transceiver consists of three sections: 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission; on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data; and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with 40GBASE-LR4 of IEEE802.3ba standard and SFF-8436 specification.
Quality Inspection and
Daily shipment
Inventory Status
Click to learn more
Production Process
Production line
Welding
Visual inspection
Assembly
Test
Cleaning
Ageing
Compatibility Test
Packing
Efficiently Supply Chain
|
High Quality
|
High Reliability
|
Win-Win Partnership
|
Our Qualifications&
Certificates
|
Completely management system
|
ISO9001/ISO14001/ISO45001
|
|
Reliability Product certificate
|
RoHs/UL/CE/FCC
|
|
Independent R&D Enterprise
|
100+ technical patent certificates
|
Package & Shipping
Our package defaults to single pack and 10 packs, and we support customized package;
Currently we can support DHL , if you need to use other logistics, please contact with us.
FAQ
Q1:
Can I have a sample order? What is your MOQ?
A1:
Yes, sample order is available for your testing and checking quality. Mixed samples are acceptable, our MOQ is just one piece.
Q2:Do you have customization service?
A2:Yes. You can use your logo,other services please talk with us.
Q3:
What is your after-sales service?
A3:All our customers can get three years quality warranty, and lifetime technical support.
Q4:What is operating temperature range of optical modules?
A4:Commercial temperature range(COM) : 0 to 70℃
Extended temperature range(EXT):-20 to 85℃
Industrial temperature range(IND)::-40 to 85℃
