Quick Details
-
name:
-
high precesion digital manometer
-
model:
-
HX601
-
pressure range:
-
(-1~0) bar, (0~700) bar
-
Accuracy:
-
±0.05%F.S, ±0.1%F.S, ±0.2%F.S
-
Connection:
-
M20*1.5 male
-
Communication:
-
RS232
-
Display:
-
58mm*26mm
-
Weight:
-
0.5kg
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
SINO INSTRUMENT
-
Model Number:
-
HX601
-
name:
-
high precesion digital manometer
-
model:
-
HX601
-
pressure range:
-
(-1~0) bar, (0~700) bar
-
Accuracy:
-
±0.05%F.S, ±0.1%F.S, ±0.2%F.S
-
Connection:
-
M20*1.5 male
-
Communication:
-
RS232
-
Display:
-
58mm*26mm
-
Weight:
-
0.5kg

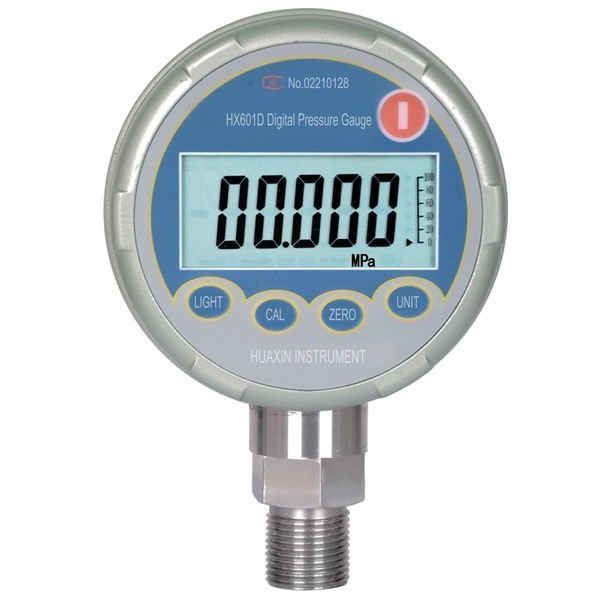

high precesion digital pressure indicator
Description
The digital pressure indicator (Low Power Consumption) adopted micropower components and its unique software processing technology. Adopting the once-off Li-ion battery powered, it could work 24 hrs continuously for 2 years. It adopts the large crystal Screen with single line to show the data credibly. It passed the high and lower temperature aging, temperature compensation before the delivery. It could assure the products precision within one year at the temperature of (0~50)°C in the 99% Level of confidence. It mainly used for verifying the pressure transmitter, Precision Pressure Gauge, General Pressure Gauge and the blood pressure meter etc.
Technical Specification
|
Pressure Range |
(-1~0) bar, (0~700) bar |
|
Accuracy |
±0.05%F.S, ±0.1%F.S, ±0.2%F.S |
|
Temperature Compensating Range |
(0~50)°C |
|
9 engineering units |
MPa, Pa, psi, kgf, bar, mbar, mmH2O, mmHg, kPa |
|
Connection |
M20×1.5 male |
|
Communication |
RS232 |
|
Overall Dimensions |
130mm×94mm×40mm |
|
Display |
58mm×26mm |
|
Weight |
0.5kg |
|
CE approved |
|
|
Password-protected "through the keypad" calibration |
|
|
Provide NIM certificate with calibration data |
|
Features
- Low Power Consumption: Three dry batteries could work for 17520 hours continuously.
- 5-digit big LCD with backlight function
- 9 Pressure Units selectable
- Zero point, full scale calibration function
- Adopting the special software treatment technology, it is unnecessary to preheat.
- RS232 Communication Port can communicate with the computer conveniently.
- Temperature compensating
- Overload alarm function
- With the EEPROM NVM, it has the power off data losing protection function
- Stainless steel bottom connection for robustness
- Equipped with rugged aluminum alloy cover; lighter weight
- CE approved.
|
